Safco 3079 Assembly Instructions

ASSEMBLY INSTRUCTIONS
PARTS LIST
LETTER
DESCRIPTION
CODE
Shell
A
Pad
B
C
Rectangular Partition
(Short, Model 3079)
D
Rectangular Partition
(Tall, Model 3079)
E
Rectangular Partition
(Short, Model 3081)
F
Rectangular Partition
(Medium, Model 3081)
G
Rectangular Partition
(Tall, Model 3081)
H
Triangular Partition
(Model 3079)
I
Triangular Partition
(Model 3081)
Open Channel
J
Closed Channel
K
Rubber Foot
L

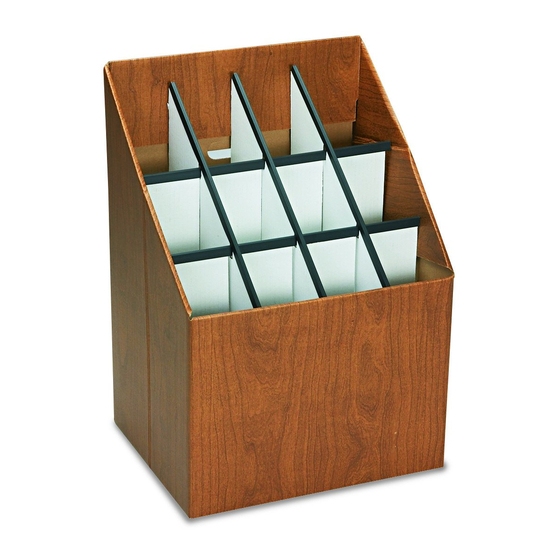

ASSEMBLED UNIT
Model 3079
(12 Openings)
ASSEMBLED UNIT
Model 3081
(20 Openings)
1
Square up the A Shell, with numbered fl aps facing
up. Fold in fl aps 1, 2, 3 and 4, in that order. Push
down on fl ap 4 until it locks under fl ap 1.
100307937: 1 of 3; Rev A; Rev Date 21-JUN-2016
UPRIGHT ROLL FILE
QTY. PART NO.
1 3081-01
1 3081-02
1 3079-23A
1 3079-23B
1 3081-23A
1 3081-23B
1 3081-23C
3 3079-24
4 3081-24
3051-64
2 (3079)
3 (3081)
3051-63
3 (3079)
4 (3081)
4 9631
D
C
A
PARTS USED ON
MODEL 3079 ONLY
H
2
Turn the shell upright. Now fold in fl aps 5 and 6;
then fold in fl aps 7 and 8 to lock 5 and 6 into place.
Safco Products Company, Minneapolis, MN 55428
3079
MODEL NUM-
BERS
3081
B
L
PARTS USED ON
MODEL 3081 ONLY
G
F
E
J
K
I
