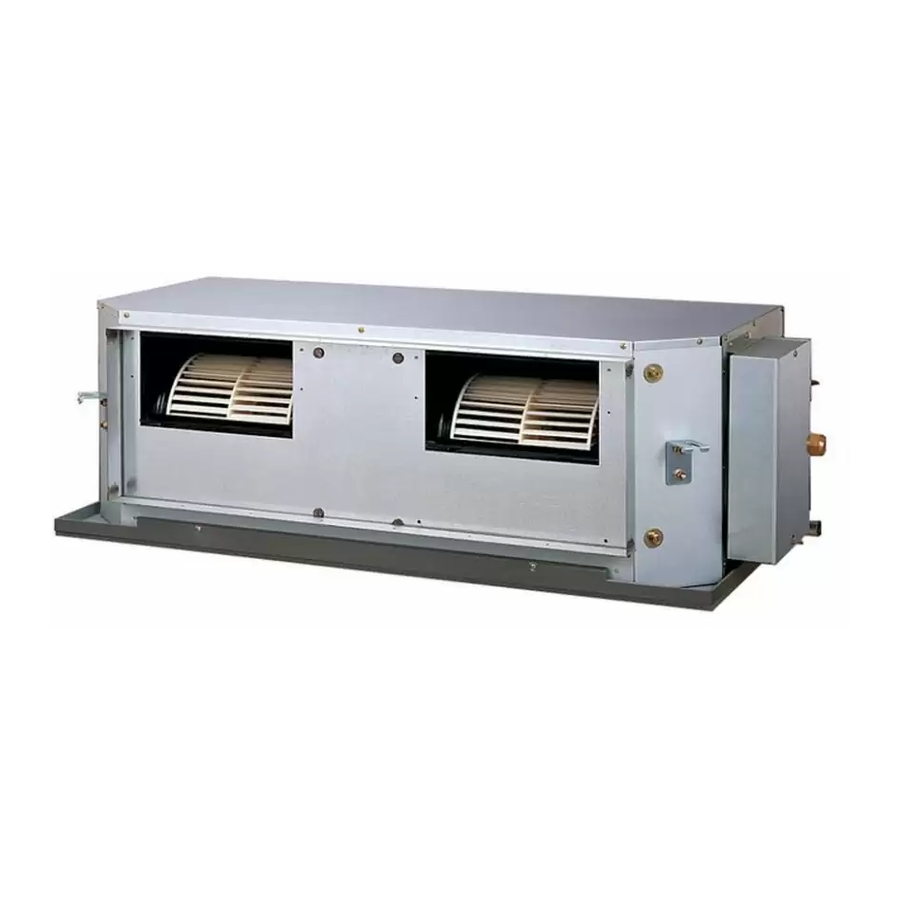

Fujitsu ARXG45KHTA Service Manual
  1. Manuals
  2. Brands
  3. Fujitsu Manuals
  4. Air Conditioner
  5. ARXG45KHTA
  6. Service manual

Fujitsu ARXG45KHTA Service Manual

Hide thumbs Also See for ARXG45KHTA:
Table of Contents

Advertisement

Quick Links

Download this manual
AIR CONDITIONER
Duct type
INDOOR
OUTDOOR
SERVICE MANUAL
ARXG45KHTA
ARXG54KHTA
AOYG45KRTA
AOYG54KRTA
SR_AR015EF_01
2019.10.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARXG45KHTA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fujitsu ARXG45KHTA

Summary of Contents for Fujitsu ARXG45KHTA

  • Page 1 AIR CONDITIONER Duct type SERVICE MANUAL INDOOR ARXG45KHTA ARXG54KHTA OUTDOOR AOYG45KRTA AOYG54KRTA SR_AR015EF_01 2019.10.01...
  • Page 2 • Product specifications and design are subject to change without notice for future improvement. • For further details, please check with our authorized dealer. Trademarks ™ FGLair is trademark of Fujitsu General Limited in the United States, other countries or both. ™ Google Play is trademark of Google Inc. ®...
  • Page 3 CONTENTS 1. GENERAL INFORMATION 2. TECHNICAL DATA AND PARTS LIST...
  • Page 5 1. GENERAL INFORMATION 2019.10.01 SR_CH01_AR015EF_01...

  • Page 6: Table Of Contents

    CONTENTS 1. GENERAL INFORMATION 1. Specifications....................01-1 1-1. Indoor unit ........................01-1 1-2. Outdoor unit........................01-2 2. Dimensions....................01-3 2-1. Indoor unit ........................01-3 2-2. Outdoor unit........................01-5...

  • Page 7: Specifications

    1. Specifications 1-1. Indoor unit Duct Type Inverter heat pump Model name ARXG45KHTA ARXG54KHTA Power supply 3N 400 V ~ 50 Hz Power supply intake Outdoor unit Available voltage range 342—457 V 12.1 13.4 Rated Btu/h 41,300 45,700 Cooling 4.0—14.0 5.0—14.5...

  • Page 8: Outdoor Unit

    1-2. Outdoor unit Type Inverter heat pump Model name AOYG45KRTA AOYG54KRTA Power supply 3N 400 V ~ 50 Hz Power supply intake Outdoor unit Available voltage range 342—457 V Starting current Cooling 4,450 Airflow rate Heating 4,450 Type × Q'ty Propeller ×...

  • Page 9: Dimensions

    2. Dimensions 2-1. Indoor unit ¢ Models: ARXG45KHTA and ARXG54KHTA Unit: mm Rear view 1,080 1,000 Drain port 12-Φ3 P120 × 2 = 240 Side view (R) P5 × 120 = 600 Side view (L) 1,050 Top view Front view - (01-3) - 2-1.
  • Page 10 ¢ Installation space requirement Provide sufficient installation space for product safety.  Models: ARXG45KHTA and ARXG54KHTA Installation by which service space is mode on top of the unit (recommended). Unit: mm 350 or more 450 or more (Service space) Service access Installation by which service space is carried out from the bottom of the unit.

  • Page 11: Outdoor Unit

    2-2. Outdoor unit ¢ Models: AOYG45KRTA and AOYG54KRTA Unit: mm 35.7 Top view 3 Way valve (Liquid) 3 Way valve (Gas) 129.1 Pipe port Ф28 Ф28 85.3 Cable port Ф28: Cable port Pipe port Cable port Pipe port Pipe port Pipe port Front view Side view...
  • Page 12 2. TECHNICAL DATA AND PARTS LIST 2019.10.01 SR_CH02_AR015EF_01...
  • Page 13 CONTENTS 2. TECHNICAL DATA AND PARTS LIST 1. Precautions....................02-1 2. Indoor unit parts list..................02-2 2-1. Models: ARXG45KHTA and ARXG54KHTA..............02-2 3. Outdoor unit parts list.................02-4 3-1. Models: AOYG45KRTA and AOYG54KRTA ..............02-4 4. Accessories ....................02-8 4-1. Indoor unit ........................02-8 4-2. Outdoor unit........................02-8 5.

  • Page 15: Precautions

    • Service parts information and design are subject to change without notice for product improve- ment. • For the latest information of the service parts, refer to our Service Portal. https://fujitsu-general.force.com/portal/ • Precise figure of the service parts listed in this manual may differ from the actual service parts. - (02-1) -...

  • Page 16: Indoor Unit Parts List

    2. Indoor unit parts list 2-1. Models: ARXG45KHTA and ARXG54KHTA ¢ Casing and fan Ref. Description Parts number Plate Top Sub Assy 9372576014 Kit (Panel Front Sub Assy) 9372637029 Panel Fan Assy 9372035009 Motor, Induct 9602802012 Casing A 9372057018 Casing B...
  • Page 17 Parts number Power Supply PCB 9705668119 Main PCB (45) 9705246355 Main PCB (54) 9705246348 Transformer (Power) 9704129017 Terminal 3P 9703345012 Terminal 3P 9306489045 Relay 9900294014 Capacitor, Plastic 9900269111 - (02-3) - 2-1. Models: ARXG45KHTA and ARXG54KHTA 2. Indoor unit parts list...

  • Page 18: Outdoor Unit Parts List

    3. Outdoor unit parts list 3-1. Models: AOYG45KRTA and AOYG54KRTA ¢ Exterior parts and chassis - (02-4) - 3-1. Models: AOYG45KRTA and AOYG54KRTA 3. Outdoor unit parts list...
  • Page 19 Item no. Part no. Part name Service part 9383880001 Top panel assy ♦ 9381013005 Protective net ♦ 9375361013 Net rubber ♦ 9900984038 Thermistor (Heat exchanger) ♦ 9900727154 Thermistor assy ♦ 9383607004 Thermo holder ♦ 9383874017 Right panel sub assy ♦ 9383879005 Rear pipe cover ♦...
  • Page 20 ¢ Compressor - (02-6) - 3-1. Models: AOYG45KRTA and AOYG54KRTA 3. Outdoor unit parts list...
  • Page 21 Item no. Part no. Part name Service part 9383858017 Sound insulation unit ♦ 9900565091 Thermistor (Outdoor temp.) ♦ 9900186029 Pressure switch ♦ 9374425624 4-way valve assy ♦ 9970194016 Solenoid ♦ 9970158018 Sensor ♦ 9375250133 Accumulator assy ♦ 9970209000 Expansion valve coil ♦...

  • Page 22: Accessories

    4. Accessories 4-1. Indoor unit ¢ Models: ARXG45KHTA and ARXG54KHTA Part name Exterior Q’ty Part name Exterior Q’ty Coupler heat insulation Operating manual (small) Operating manual Special nut A (CD-ROM) (large flange) Special nut B Installation manual (small flange) Coupler heat insulation (large) 4-2.

  • Page 23: Optional Parts

    5. Optional parts 5-1. Indoor unit ¢ Controllers Exterior Part name Model name Summary Large and full-dot liquid crystal screen, wide and large keys easy to press, Wired remote user-intuitive arrow key. UTY-RVNYM controller Wire type: Polar 3-wire Room temperature can be controlled by detecting the temperature Wired remote accurately with built-in thermo sensor.

  • Page 24: Outdoor Unit

    Exterior Part name Model name Summary Remotely manage an air conditioning Wireless LAN UTY-TFNXZ1 system using mobile devices such as adapter smartphones and tablets. 5-2. Outdoor unit Exterior Part name Model name Summary Use to operate the external input and External UTY-XWZXZ3 output functions of outdoor unit.

  • Page 25: Refrigerant System Diagrams

    6. Refrigerant system diagrams 6-1. Models: AOYG45KRTA and AOYG54KRTA Heat exchanger 3-Way 3-Way ( INDOOR ) valve valve Pressure switch Pressure sensor 4-Way valve Strainer Expansion valve Heat exchanger Strainer ( OUTDOOR ) : Cooling : Heating : Thermistor (Compressor temperature) : Thermistor (Discharge temperature) : Thermistor (Outdoor temperature) : Thermistor (Heat Exchanger Out temperature)

  • Page 26: Pc Board Diagrams

    7. PC board diagrams 7-1. Models: ARXG45KHTA and ARXG54KHTA MAIN PCB 45 model: K03BZ-1801HSE-C1 54 model: K03BZ-1800HSE-C1 CN104 CN105 R15 - R17 B02B-XARK-1-A B04B-PASK-1 5V 12V 14V DC SUPPLY 10k <1/10W> x 3 WHITE JM103 UL1430 AWG22 UL1430 AWG26 GRAY...

  • Page 27: Models: Aoyg45Krta And Aoyg54Krta

    7-2. Models: AOYG45KRTA and AOYG54KRTA INVERTER ASSEMBLY 36 model: EZ-0190HUE 45 model: EZ-0193HUE 54 model: EZ-0191HUE DC340V UL1015 AWG20 GREEN UL1430 AWG22 DC FAN MOTOR 1 DC15V-2 TERMINAL EMI FILTER UL1430 AWG22 EMI FILTER F102 BLACK BLACK GRFC-8 P650 GRFC-8 UL1430 AWG22 WHITE WHITE...
