Installation instructions
IMage® Inline electric heater for spa
.
GB
International Marketing A/S reserves the right to make product changes without notice.
Copyright. Welldana A/S
Issued in: DK. GB.
Edition 03-2020
Advertisement
Table of Contents
Summary of Contents for welldana 34-100615

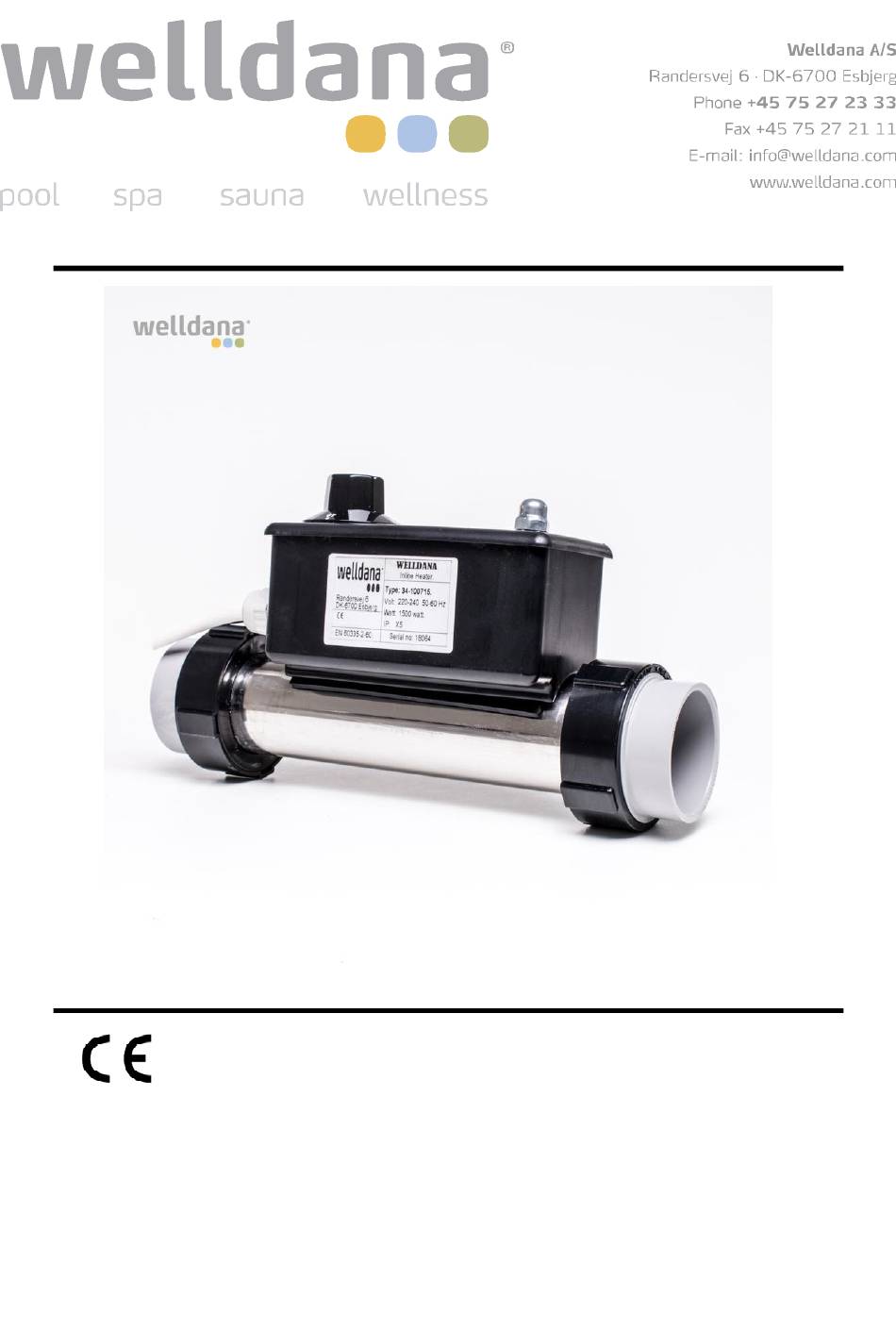

- Page 1 Installation instructions IMage® Inline electric heater for spa International Marketing A/S reserves the right to make product changes without notice. Copyright. Welldana A/S Issued in: DK. GB. Edition 03-2020...
- Page 2 Types and 34-100730 are both 3.0 kW, 220-240 V AC models. Welldana® Inline 3.0 kW electric heater models must be installed with power cables and control cables as shown in installation diagram 1. Pressure switch and flow switch are not...
- Page 3 Installation diagram 1 Installation diagram 2...
- Page 4 Installation: The electric heater must be installed so that it receives power via the main fuse group (diagram 1) or direct from the main panel (diagram 2). If the heater is installed as shown in installation diagram 2, the panel must be rated for 1500 or 3000 W, depending on type. The pressure switch and flow switch must be fitted to the piping ahead of the electric heater.
