  • Page 3: Before Use

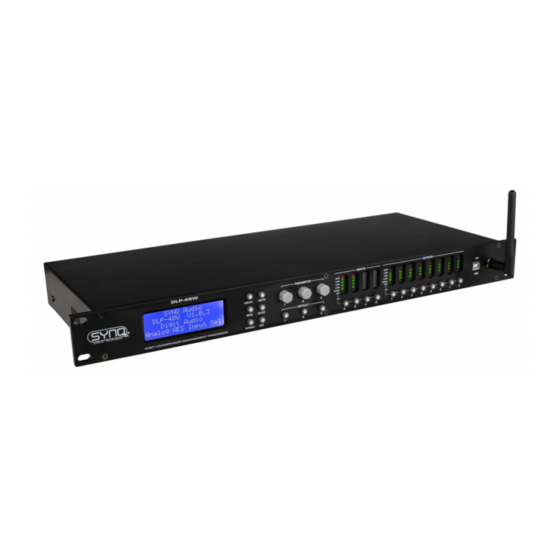

    ENGLISH OPERATION MANUAL OPERATION MANUAL ® Thank you for buying this SYNQ product. To take full advantage of all possibilities, please read these operating instructions very carefully. FEATURES • Professional digital loudspeaker management processor. • Used to tune your loudspeakers to perfection! •...

  • Page 4: Safety Instructions

    • In the event of serious operating problems, stop using the appliance and contact your dealer immediately. • Please use the original packing when the device is to be transported. • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. SYNQ 2/22 DLP-48W ®...
  • Page 5 8. WIFI antenna: used to connect the unit to a computer over WIFI FUNCTIONS (rear) 9. POWER INPUT: connect the supplied mains cable to this input. 10. POWER SWITCH: used to switch the unit ON or OFF SYNQ 3/22 DLP-48W ®...
  • Page 6 Use the [<Back] or [Next>] to go to [Input Gain] • Turn the first parameter knob (4) to modify the input gain • The new setting will be stored automatically • Once you are ready, press the ESCAPE knob (2) to leave the setting mode SYNQ 4/22 DLP-48W ®...

  • Page 7: Output Parameters

    Use the [<Back] or [Next>] to go to [Output Source] • Turn the first parameter knob (4) to switch [InA] (input source A) On or • Press the ENTER (2) knob to go to the setting of the next inputs • …… SYNQ 5/22 DLP-48W ®...
  • Page 8 With this type of equalizer, you can select a frequency and boost or lower this frequency. With the bandwidth you make the selection of the frequency wider or more narrow. • [Lo-S] Low shelf EQ with Frequency (20Hz-20KHz), Gain (-30dB-+15dB) and Slope settings. SYNQ 6/22 DLP-48W ®...
  • Page 9 Turn the second parameter knob (4) to set the Clip limit • Turn the third parameter knob (4) to set the Ratio • The new setting will be stored automatically • Once you are ready, press the ESCAPE knob (2) to leave the setting mode SYNQ 7/22 DLP-48W ®...
  • Page 10 Default 3. Press the ENTER (2) button to confirm and save your setting • Wifi Factory Reset: Use the parameter knobs (4) to select [YES] or [NO] and press the ENTER (2) button to confirm SYNQ 8/22 DLP-48W ®...
  • Page 11 The latest version of the software can be downloaded from our website www.synq-audio.com on the product page of the DLP-48W. A. DATA VIEW: gives you a full view over all the parameter settings for all channels. This information can also be printed.
  • Page 12 SOUCE: used to set the input source for each output channel. Several inputs can be routed to each output if needed. b. GAIN: used to set the gain for each output channel c. POL+/POL-: used to reverse the polarity if needed. POL+ = normal, POL- = reversed SYNQ 10/22 DLP-48W ®...
  • Page 13 To have a clear view, you can switch off the curves that should not be shown. Remark: this button will not mute or unmute the channels, it only has an influence on what is shown on your screen. SYNQ 11/22 DLP-48W ®...
  • Page 14 For short distance, the unit can be connected via a USB cable. Only one unit can be controlled via this option. For longer distances or to control multiple processors (up to 250 units) you can use a LAN connection. SYNQ 12/22 DLP-48W ®...
  • Page 15 Go to Settings > Network & Internet (or right click on the network icon in the lower right corner of your screen and select “open network & internet settings”) • Open the “Network & sharing center” and click on the “Ethernet” option • A new window will pop up • Click on “Properties” SYNQ 13/22 DLP-48W ®...
  • Page 16 Start up the processor • Press the [MENU] button (2) to enter the main menu • Use the [<Back] or [Next>] buttons or the first parameter knob (4) to scroll the menu and go to [System SubMenu] SYNQ 14/22 DLP-48W ®...
  • Page 17 A new window will pop up • Go to “Internet Protocol (TCP/IP) and click again on properties • Use the option “Obtain an IP address automatically” • Connect the computer with the processor. The obtained IP address should be 10.10.100.100 SYNQ 15/22 DLP-48W ®...
  • Page 18 Click on [AP Interface Setting] in the top left corner and add the Network Name (SSID): AB-Link • Adjust the settings in the [LAN Setup] DHCP Type = Disable IP address of wifi module = same as router : “192.168.0.101” (“192.168.0.102”, “192.168.0.103”, etc. ) Click apply SYNQ 16/22 DLP-48W ®...
  • Page 19 Select Station Mode (STA Mode) and click apply • Restart the Processors • Open the software interface and click on the top right corner on “Connection” • Set the IP address to “192.168.0.101”, “192.168.0.102”, “192.168.0.103”… and click on the OK tab below SYNQ 17/22 DLP-48W ®...
  • Page 20 The obtained P address should be 10.10.100.100 • Once connected to the network, type 10.10.100.254 in your internet browser • Set user name = admin, password = admin, and press OK • Now start the [Working Mode Configuration] SYNQ 18/22 DLP-48W ®...
  • Page 21 Click on [Search] for the [STA Interface Parameters] • Choose the correct SSID and click on “Apply” • Set the password = 13141516 (the password should be the same as the password of the Router) • Click “Apply” SYNQ 19/22 DLP-48W ®...
  • Page 22 Set the [WAN Connection Type] to [STATIC(Fixed IP)] and enter the following data for the IP address: 192.168.0.102 (or 192.168.0.103, 192.168.0.104, …) 255.255.255.0 192.168.0.1 • Once this is done, click on [Mode Selection] in the upper left corner • The next information will show up. Click on [Device Management] SYNQ 20/22 DLP-48W ®...
  • Page 23 Open the software interface and click on the top right corner on “Connection” • Set the IP address to “192.168.0.102”, “192.168.0.103”, “192.168.0.104”… (the IP address should be the same as the Static Mode IP address) • Click on the OK tab below SYNQ 21/22 DLP-48W ®...

  • Page 24: Specifications

    4, 8, 16 or 32 x start-up time Dimensions: 482(W) x 44(H) x 200(D) mm Weight: 2.62 kg Every information is subject to change without prior notice You can download the latest version of this user manual from our website: www.synq-audio.com SYNQ 22/22 DLP-48W ®...
