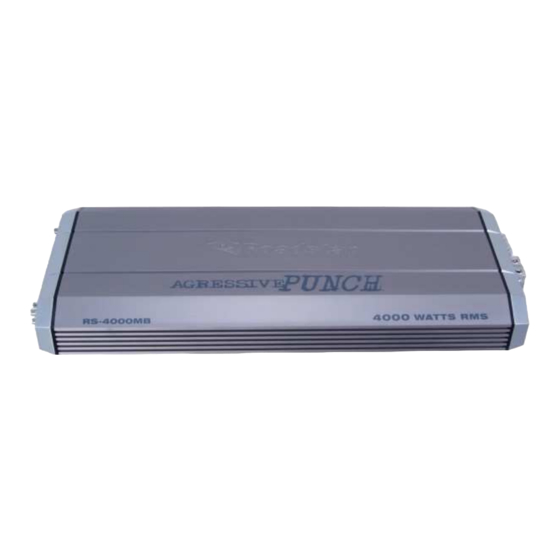

RS-4000MB
MANUAL DE INSTRUÇÕES
• Amplificador Classe D 1 canal
• Potencia RMS: 1ch x 1700W RMS a 12.5 V
1 ch x 2600W RMS a 12.5 V
1 ch x 4000W RMS a 12.5 V
• Eficiência >90%
• Resposta de frequencia 10Hz a 5kHz
• Jumper slave
• Sistema de proteção
• Consumo maximo
1 Ohm 320 Amperes
2 Ohms 220 Amperes
4 Ohms 140 Amperes
PORTUGUÊS
ENGLISH

Advertisement

loading
Need help?

Need help?

Do you have a question about the RS-4000MB and is the answer not in the manual?

Questions and answers

Summary of Contents for Roadstar RS-4000MB

  • Page 1 RS-4000MB MANUAL DE INSTRUÇÕES • Amplificador Classe D 1 canal PORTUGUÊS • Potencia RMS: 1ch x 1700W RMS a 12.5 V 1 ch x 2600W RMS a 12.5 V ENGLISH 1 ch x 4000W RMS a 12.5 V • Eficiência >90% •...
  • Page 2 Obrigado por adquirir nossos produtos! Usado de maneira correta, seu novo equipamento de som fornecerá muitas horas de entretenimento sonoro de boa qualidade. Danos auditivos causados por som muito alto são praticamente imperceptíveis ao longo do tempo, sendo assim, este fabricante e as indústrias eletrônicas recomendam evitar longas horas de exposição a som muito alto.
  • Page 3 Introdução Este amplificador é de alta performance, potência e alta qualidade. Você pode sentir-se orgulhoso de sua escolha. Antes de iniciar a instalação, certifique-se de ler este manual completamente e guarde-o para futuras referências. Especificações RS – 4000MB AMPLIFICADOR CLASSE “D” 1 CANAL ·Potência de saída 1kHz 12,5V - potência RMS @ 4 Ohms 1700W x 1CH...
  • Page 4 Agora você deve saber como obter o máximo que seu equipamento pode oferecer. A Roadstar deseja que você obtenha o máximo em desempenho, divertindo-se a um nível de volume seguro, um nível que permita um som limpo e sem distorções, e o mais importante, sem afetar a capacidade auditiva.
  • Page 5 Conheça o seu amplificador ROAD STAR LEVEL...
  • Page 6 1. ENTRADAS RCA Permite a entrada de fonte de sinal utilizando plugues RCA. 2. CONTROLE SUB BOOSTQ Ajusta o nível de sub boost da frequência selecionada de 0dB a 18dB. 3. CONTROLADORES DE BASS Permite um extensivo ajuste das frequências graves. O controlador SUB BOOST define o bass bosst de 0 a 18dB.
  • Page 7 amplificador para operar nos modos MASTER/SLAVE. 11. SAÍDAS RCA Fornecem uma saída de áudio linear para o amplificador adicional. 12. EXTENSÃO DE FREQUÊNCIA Ajusta a frequência crossover da saída BASS EQ. 13. ENTRADA BALANCEADA A ENTRADA BALANCEADA opcional é, diferentemente dos cabos RCA convencionais, insuscetível a interferências dos aparelhos eletrônicos do veículo.
  • Page 8 Instalação A qualidade da instalação poderá afetar diretamente a performance e segurança do sistema consideravelmente, isso em caso de uma ma instalação. Recomendamos a ajuda de um distribuidor ou instalador profissional. O amplificador é geralmente montado em qualquer local conveniente, como por exemplo, embaixo do assento, o que é bastante errado. Certifique-se de colocar o aparelho em local com boa circulação de ar e protegido de perigos.
  • Page 9 Conexão da fonte de energia Fig. 1 Instalação do Amplificador Os cabos +12VDC e terra devem ser bem isolados. O padrão dos cabos deve ser de 2AWG, para o positivo e terra, com até 6 metros de distância. Além destes, há um cabo de controle remoto 12V que deve ser de 12AWG-14AWG.
  • Page 10 Muitos rádios ou outras fontes de som têm um terminal de saída para conexão do ativamento remoto do amplificador. Se o rádio não tiver esta função, você poderá utilizar o cabo de transmissão que ativa o motor da antena. Mas você deve prestar atenção se a antena está abaixada durante a operação do rádio. Neste caso você...
  • Page 11 Conexão de entrada de sinal RS-4000MB Fig. 3 Conexão de entrada de sinal...
  • Page 12 Conexão MASTER/SLAVE CD ROOM 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5 6 6 6 6 7 7 7 7 8 8 8 8 9 9 9 9 RADIO RADIO RADIO...
  • Page 13 Master amp Master amp Master amp Master amp Slave amp Slave amp Slave amp Slave amp Conexão de saída para os alto-falantes 4~2 ohm Fig. 4 Conexão de saída para os alto-falantes As linhas pontilhadas indicam a conexão de 2 alto-falantes. Neste caso, a carga total no amplificador deve ser de 2 Ohms se os amplificadores forem ambos 4 Ohms.
  • Page 14 • O amplificador pode ser usado somente no modo mono, como mostrado na figura 4. • Os cabos dos alto-falantes devem ser conectados aos terminais para alto-falantes do amplificador. • Note que a maioria dos alto-falantes tem uma polaridade com um símbolo “+” ou um ponto, indicando o terminal positivo do alto-falante.
  • Page 15 We want you listening for a lifetime Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late this manufacturer and the Electronics Industries Associations Consumer Electronics Group recommends you avoid prolonged exposure to excessive noise.
  • Page 16: Dear Customer

    Dear customer Selecting fine audio equipment such as the unit you`ve just purchased is only the start of your musical enjoyment. Now it`s time to consider how you can maximize the fun and excitement your equipment offers. Audio products and the Electronic Industries Associations Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level, a level that lets the sound come through loud and clear without annoying blaring distortion, and most importantly, without affecting your sensitive hearing.
  • Page 17: Installation

    Introduction This car stereo amplifier has high power and low distortion performance typical of fine home stereo amplifier. You can be proud of yourself for making a fine choice. Before beginning your installation of this amplifier please be sure to read this manual throughly and keep to the instructions carefully. Installation The quality of the installation will affect system performance and reliability.
  • Page 18: Power Supply Connection

    Power Supply Connection Fig.1 Installation of Amplifier The +12VDC and ground wires should be heavy insulation the wire gauge should be 2AWG, or larger. In addition it has a 12V Remote control wire and it should be 12V control wire and it should be 12AWG-14AWG. It is preferable to have longer speaker wires and shorter power supply wires so as to minimize power losses.
  • Page 19: Power Input Connection

    Power Input Connection T o N e g a t i v e T e r m i n a l B a t t e r y T o N e g a t i v e T e r m i n a l B a t t e r y T o N e g a t i v e T e r m i n a l B a t t e r y T o N e g a t i v e T e r m i n a l B a t t e r y T o + 1 2 V D C...
  • Page 20: Signal Input Connection

    Signal Input Connection RS-4000MB Fig.3 Signal Input Connection...
  • Page 21 Signal MASTER SLAVE Connection Signal MASTER SLAVE Connection Signal MASTER SLAVE Connection Signal MASTER SLAVE Connection CD ROOM 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5 6 6 6 6 7 7 7 7 8 8 8 8 9 9 9 9...
  • Page 22 Master amp Master amp Master amp Master amp Slave amp Slave amp Slave amp Slave amp...
  • Page 23 Speaker Output Connection Speaker Output Connection Speaker Output Connection Speaker Output Connection 4~2 ohm Fig.4 Speaker Output Connection Dotted lines show 2-speaker connections. In this case, total load in amplifier should be in 2 ohms if its speakers have each 4 ohms load. ·The amplifier can be used in only mono mode as shown in Fig4.
  • Page 24 FUNCTIONS AND OPERATIONAL CONTROLS FUNCTIONS AND OPERATIONAL CONTROLS FUNCTIONS AND OPERATIONAL CONTROLS FUNCTIONS AND OPERATIONAL CONTROLS ROAD STAR LEVEL 1. 1. 1. 1.The LINE INPUT RCA jacks LINE INPUT RCA jacks must be connected with the RCA output jacks of the headunit. LINE INPUT RCA jacks LINE INPUT RCA jacks 2.SUB BOOSTQ CONTROL...
  • Page 25 · · · · Q 0,5 Q 0,5 LINKWITZ LINKWITZ- - - - REILLY REILLY(Standard-setting,12 o`clock position). Q 0,5 Q 0,5 LINKWITZ LINKWITZ REILLY REILLY · · · · Q 0,7 Q 0,7 BUTTERWORTH BUTTERWORTH(3 o`clock position) Q 0,7 Q 0,7 BUTTERWORTH BUTTERWORTH 4.
  • Page 26 1 1 1 1 8 8 8 8 ..External Remote Accessory External Remote Accessory External Remote Accessory External Remote Accessory It allows sub level control at car dashboard using phone jack wire. RS RS RS RS- - - - Amplifier specification Amplifier specification Amplifier specification Amplifier specification...
