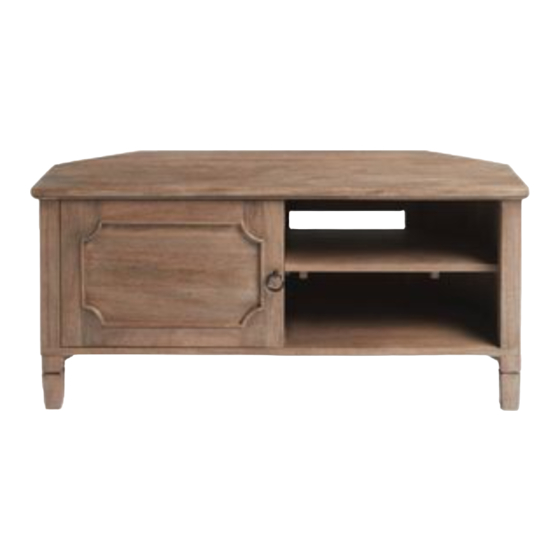

- Page 2 GRAND COUNTRY CORNER TV UNIT U22227 Assembly instructions Actual product size: H50 x W110 x D45 cm Need Help? With: Assembly instructions Missing or damaged parts CALL: 0333 777 8999 IMPORTANT ─ RETAIN FOR FUTURE REFERENCE Produced in India for Next Retail Ltd. U22227-2022-V1...
- Page 3 To view our full furniture range please visit mark the furniture. www.next.co.uk Never allow any kind of liquid to remain on your furniture. Absorption can cause finishes to de-laminate and or stain. Produced in India for Next Retail Ltd. U22227-2022-V1...
- Page 4 GRAND COUNTRY CORNER TV UNIT U22227 Assembly instructions GETTING TO KNOW YOUR PRODUCT Components supplied. Please use this guide if you require replacement parts. Description Visual 110 x 45 x 37.5cm 42 x 14.5 x 22cm Produced in India for Next Retail Ltd. U22227-2022-V1...
- Page 5 GRAND COUNTRY CORNER TV UNIT U22227 Assembly instructions Fixtures and fittings supplied (actual size) Dimensions *Extra 6 x 30mm 6 x 17mm Fixtures and fittings supplied (not to scale) Visual Dimensions *Extra Produced in India for Next Retail Ltd. U22227-2022-V1...
- Page 6 Note: Do not fully ghten un l all fi ngs are in posi on DETAIL A SCALE 1 : 1 Match the number mentioned A x 6 Nos on both carcass & legbefore assembly B x 6 Nos Produced in India for Next Retail Ltd. U22227-2022-V1...
- Page 7 Note: Fit the anti tip straps on both top corners of the rear side of the product and fix the other end of the strap to wall. supplied Produced in India for Next Retail Ltd. U22227-2022-V1...
- Page 8 GRAND COUNTRY CORNER TV UNIT U22227 Assembly instructions Actual product size: H50 x W110 x D45 cm 110cm 45cm 15.8cm 50cm 12.5cm Produced in India for Next Retail Ltd. U22227-2022-V1...
