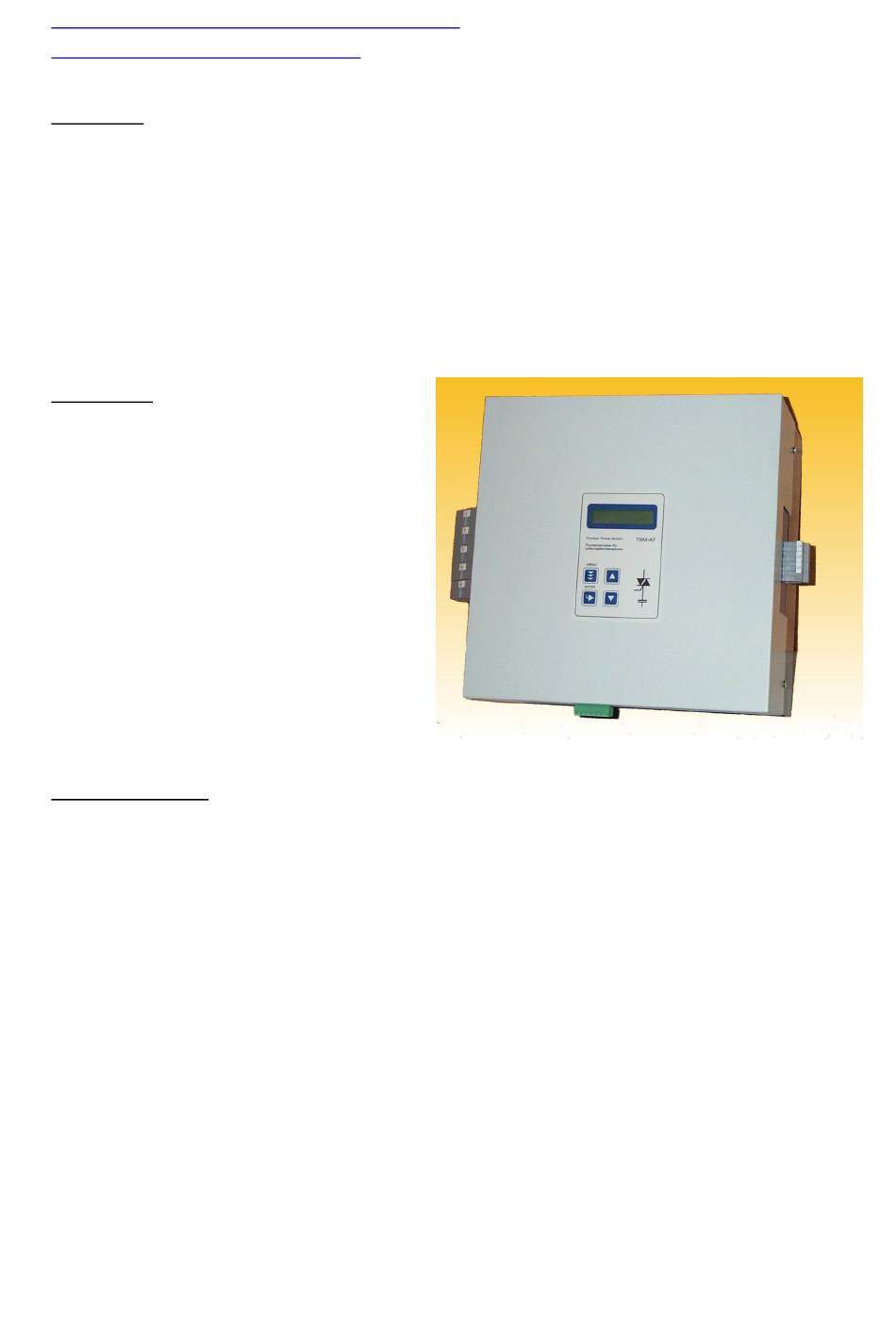

Blindleistungsregler TSM-AT Quick Start Manual

Dynamic Power Factor Correction
Thyristor Module TSM-AT

General:

Conventional systems for power factor correction are used to optimize the power factor and
reduce the level of harmonics in the net. The usage of new technologies in modern industry has
negative impacts on electrical power quality of the main supply networks, eg. frequent high load
fluctuations and harmonic oscillation. Excessive currents, increased losses and flickering will not
only influence the supply capacity but will also have a significant impact on the operation of
sensitive electronic devices. The solution for this are dynamic power factor correction systems.

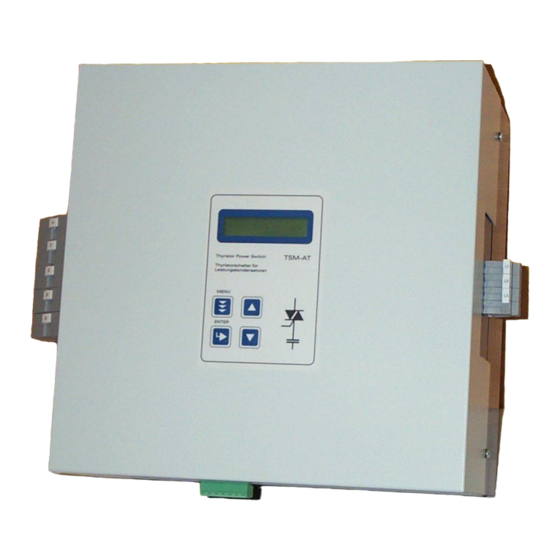

With the TSM-AT module we provide the main component – „electronic switch" – for dynamic
power factor correction. The TSM-AT is a fast electronically controlled, self-observing thyristor
switch for capacitive loads up to 100 kVAr, which is capable to switch PFC capacitors within a few
milliseconds as often as required.

Features:

Real 3-phase switching
-
(usage only with single-phase capacitors
L-N)
Output up to 120 kVAr at 690 V
-
Usage for PFC-systems with and without
-
reactors (programmable)
Connected load (output) programmable
-
Easy programming for the individual
-
application via
language display
Indication of all relevant parameters of
-
the grid
(voltage, current, temperature...)
Alarm output and error message storage
-

Technical Data

Voltage
Max. power
Parameter setting
via display
Control features
Display
Controlling
Power circuit
Losses
Fuses
Dimensions
multi-lingual plain
max. 690V ( 3 x 400V L-N )
up to 120 kVAr at 690 V
up to 100 kVAr at 525 V
nominal voltage, degree of detuning, overcurrent, alarm temperature,
frequency, error message storage, delay time during cascading
permanent monitoring of net voltage, phasing, capacitor current,
module temperature. Malfunction shown in plain language and evaluated;
former errors are stored in an error message storage
3-phase indication of net voltage and capacitor current
temperature values and all parameters programmed can be retrieved
10-24 VDC , internally DC-insulated; manual operation possible
connection: three-pole via clamp (25qmm)
Pv(in W)= 3.0 * I (in A) at 690V / 100 kVAr approx. 240W)
electronic fuse „superfast" 160 A (NH00)
300 x 300 x 200 mm (w x h x d)
.
