INSTRUCTIONS FOR USING KATO COILTHREAD
TOOLS
THE FOLLOWING INSTRUCTIONS ARE APPLICABLE FOR THE

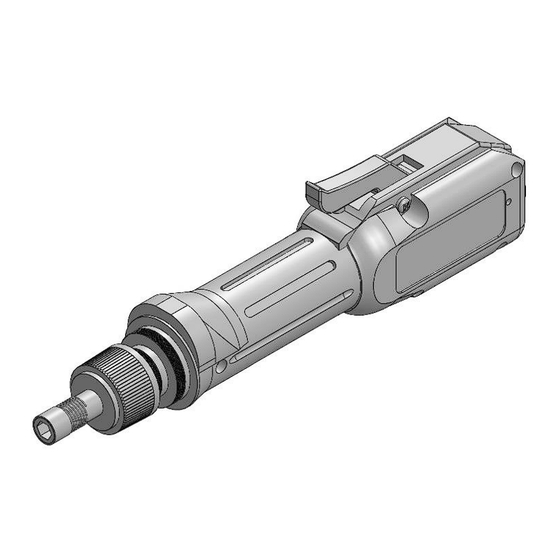

KATO KFS-20 BRUSHLESS ELECTRIC DRIVER (CT5420) & T-45BL POWER SUPPLY
KFS-20 PROPERTIES
Characteristics
Specifications
Length
8.85 in (225 mm)
Grip Diameter
1.28 in (32.7mm)
.88-.62 lbf-in
.1-.7 N･m.
Output Torque Range
1-7 kgf･cm
Rotation
480 RPM
(Low Setting, No Load)
Page 1
Advertisement
Table of Contents
Summary of Contents for Kato KFS-20
- Page 1 ® INSTRUCTIONS FOR USING KATO COILTHREAD TOOLS THE FOLLOWING INSTRUCTIONS ARE APPLICABLE FOR THE KATO KFS-20 BRUSHLESS ELECTRIC DRIVER (CT5420) & T-45BL POWER SUPPLY KFS-20 PROPERTIES Characteristics Specifications Length 8.85 in (225 mm) Grip Diameter 1.28 in (32.7mm) .88-.62 lbf-in .1-.7 N･m.
-
Page 2: Driver Features
6. Set the Power Supply output to the LOW speed setting. Make sure the power is in the OFF position until ready for use. 7. Pull the sleeve back on the KFS-20 driver and insert the Mandrel into the hex shaft. 8. Ensure the electric driver directional switch is in the FOR (Forward) position. -
Page 3: Torque Adjustment
“FOR” position. The driver will reverse direction automatically once the insert is installed properly and the installation torque is adjusted correctly. If the directional switch is set to Neutral, the KFS-20 will not operate. 20. For additional information please refer to the 2KPE or KPE series instructions. -
Page 4: Tips And Tricks
INSERTS WILL CAUSE THE RED DYE TO BLEED Figure 4 - Exploded View of CT5420 SAFETY Always wear eye protection when working with KATO tools. REPAIRS AND PARTS REPLACEMENT Any repairs should be done by an authorized dealer or trained professional. - Page 5 KATO T-45BL POWER SUPPLY Characteristics Specifications 5.75”x 1.80”x2.82” L x H x W Weight .60 lb. Input Voltage 100- 240 VAC 47-63 Hz Output Voltage 20 VDC/30 VDC Amperage 0.75 A Page 5...
-
Page 6: Important Notes
BEFORE YOU BEGIN PLEASE REVIEW… • Proper hole preparation procedures. • A step by step instructional video can be found in the KATOpedia section of the KATO website www.katofastening.com. Secure flat to the work station or wall. Figure 5 Figure 6 IMPORTANT NOTES The T-45BL is only compatible with the CT5420 Brushless Electric Drivers. -
Page 7: Maintenance
SAFETY Always wear eye protection when working with KATO tools. MAINTENANCE KATO T-45BL requires no maintenance. REPAIRS AND PARTS REPLACEMENT Any repairs should be done by an authorized dealer or trained professional. For additional information contact KATO Fastening Systems at support@katofastening.com... - Page 8 Notes © 2019 KATO Fastening Systems, Inc. Page 8...
