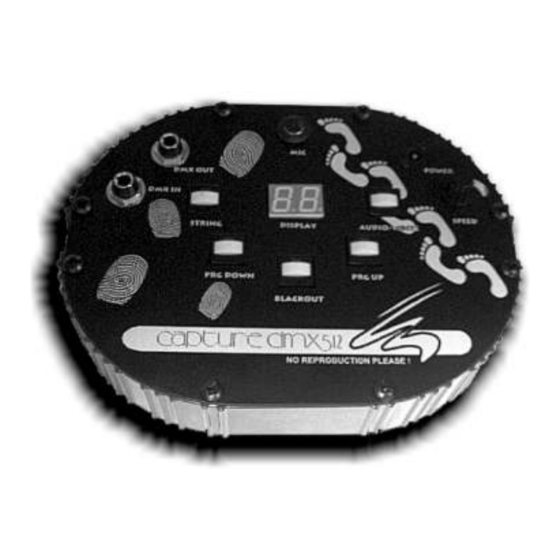

Summary of Contents for Proline CAPTURE DMX512
- Page 1 Capture DMX512 USER manual...
- Page 2 USER MANUAL CAPTURE DMX512 Location Don't install the device at places with mechanical shakings and vibrations, high dustiness or high temperature. Not keeping these conditions can lead to shorter lifetime or its damage. DON´ T expose the device to influence of water, rain or moisture. It could lead to electric shock or fire.
- Page 3 JACK 6,35 /1/4"/. Functions of the device CAPTURE DMX512 It is allow to save programs from whatever DMX controller. After saving programs you chosen you can them transmit to your devices . Built up 8 memory places, button choice for choice program /1-8/, AUDIO / mode of work according to coming sound impulses/, Black Out, Potentiometer on speed setting saved program.
- Page 4 RESET-clearing down the device Press BlackOut and switch on the device. After 4.sec display screen "CC" and whole memory of the device clear down. Setting size of packet Press AUDIO/WRITE and switch on the device. After 4 sec display hexadecimal value big as a input packet.
