Summary of Contents for Dalxo EB-67ERC-8BC54T

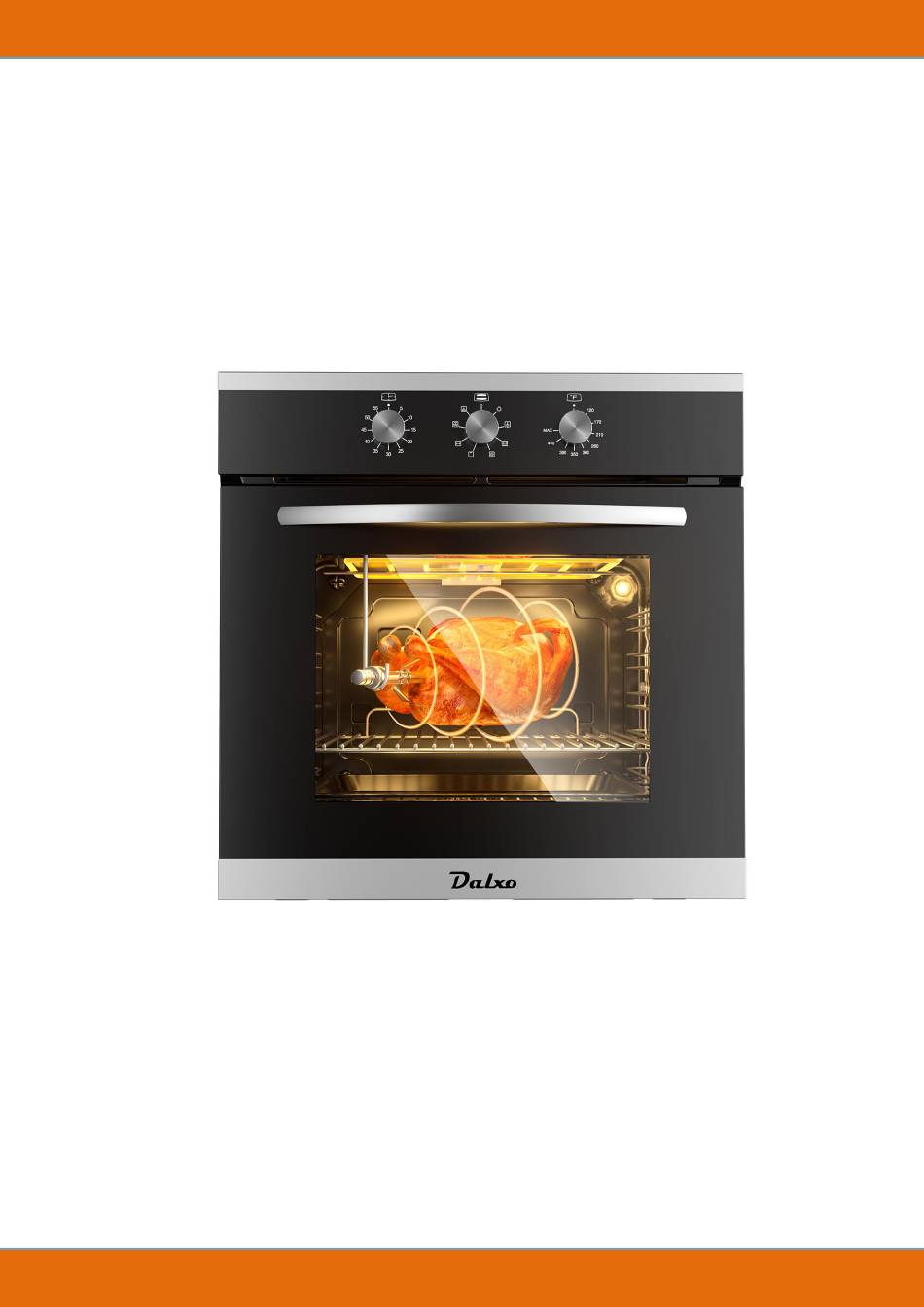

- Page 1 Electric Wall Oven Model: EB-67ERC-8BC54T Dalxo User Manual Please read the instruction carefully before usage. If you have any problems, please do not hesitate to contact our service team: support@dalxo.com...
-
Page 2: Table Of Contents
Table of Contents Introduction..........................1 Important Safety Tips......................3 Parts List..........................6 Installation Electric Wall Oven...................7 Using the Electric Wall Oven.....................12 Cleaning & Maintenance....................17 Troubleshooting........................19 Warranty..........................20... -
Page 3: Introduction
Hope that you will enjoy the use of Dalxo's oven for many years to come. Perfect for kitchens, islands and mobile homes. Moreover, if you have an apartment to rent, our stylish built-in ovens complement the kitchen perfectly to attract more tenants. - Page 4 The single-phase alternating current of the oven is 220-240V 50Hz. In any event, you should always check the nameplate specifications affixed to the machine before installing the equipment. Power of the Heating Tube & Light Lower Heating El. 1200W Circle Heating El. 2100W Total Upper Heating El.
-
Page 5: Important Safety Tips
Important Safety Tips Please read and understand the following safety tips prior to using your product. Recommend asking a professional electrician to install the single wall oven. The oven heats up when it is running. For your child's safety, do not approach the glass door. - Page 6 The following items are potentially dangerous and appropriate measures must be taken to keep children and the disabled out of the reach: Controls and general appliances; Package, such as bags, polystyrene, nails, etc; Electrical appliances when they are no longer in use, especially potentially hazardous ...
- Page 7 A qualified person must be contacted in the following cases: Install according to the instructions; When in doubt about operating the equipment; When the power socket is not compatible with the electrical plug, the power socket needs to be replaced, when it is not compatible with the electrical plug. Service Center authorized by the manufacturer must be contacted in the following: ...
-
Page 8: Parts List
Parts List Parts Number Diagram Tray 1pcs Large G 1pcs rill Small G 1pcs rill Rotisserie Fork 1pcs Pull Handle 1pcs Manual 1pcs... -
Page 9: Installation Electric Wall Oven
Installation Electric Wall Oven IMPORTANT: Unplug your oven before performing installation or maintenance. Installation should be carried out by qualified personnel according to the instructions. The manufacturer is not responsible for any damage to persons, animals or objects caused by incorrect installation. - Page 10 There are 2 holes in the door frame to mount the oven to other surroundings (under the bench or above other machines) by screwing and inserting the plastic cover (Fig. 3). The rear panel of the machine must be removed to allow free circulation of air. There should be at least 2.76”...
- Page 11 Connection to the Mains Supply Devices must be connected according to current rules. It is recommended to be wired by a professional electrician. This equipment must be grounded. Check that the rated power of power and outlet match the max wattage indicated on the nameplate. The correct connection is to insert the plug into a socket with a third contact point to the ground.
- Page 12 Removable Glass Door The oven door is made of 3 layers of glass, the top and bottom of each layer are flow-through. When the oven is running, air circulates through the door to keep the outer pane cool. If condensation is working between the glass panes, the door can be removed to clean between them.
- Page 13 Disassemble/Assemble the Oven Door To make it easier to clean the inside oven, the oven door can be removed by proceeding as follows: Open the door completely and lift the 2 levers “B” (Fig.11); Shut the door slightly, you can lift it out by pulling out the hooks “A” to reassemble the ...
-
Page 14: Using The Electric Wall Oven
Using the Electric Wall Oven Panel contain time, function and temperature knobs Note: All functions will not be activated until the temperature is selected using the knob. Recognition the Icon Note: the inverted triangle represents the inside heating tube in the top. - Page 15 Light A light inside the Oven. Defrost with Fan The air at ambient temperature is distributed inside the oven for defrosting food more quickly and without proteins adulteration. Conventional Bake+Rotisserie A conventional oven works by the heat rising. The top is hotter than the bottom. Perfect for cooking different sides of the meat simultaneously.
- Page 16 Use the Rotisserie In the icon " " of the function panel, the rotisserie can be used in combination with the rack. After fitting the food on to the spit “S”, block it with the two forks “F”. then proceed as follows: The common oven installation method is as shown below, but this product is suitable for Fig.13;...
- Page 17 Timer & Temperature Turn the knob clockwise to set the desired cooking time. The adjustable range of time is 1-60 minutes. It is recommended to be at least >5 min; there will be a sound signal when the time you set is reached; The temperature range is 0-440 °...
- Page 18 In the model, the internal oven light is always on in any running function and is considered an operational warning light. Replace the Light (Fig.15) Unplug your oven; Unscrew the glass cover attached to the lamp holder; Unscrew the lamp and replace it with high-temperature one, around 572℉ (300℃ ). ...
-
Page 19: Cleaning & Maintenance
Cleaning & Maintenance IMPORTANT: This appliance is only for household use, don’t use it outdoors! Important: Unplug your oven before cleaning or maintenance. To extend the life of your oven, it must be cleaned regularly as follows: Do not use steam equipment to clean the appliance. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in liquid or sprinkle water to clean the appliance. - Page 20 This product must not be disposed of with household waste. Disposal of electrical and electronic equipment must be carried out in a place authorized for recycling. Collecting and recycling waste saves natural resources and ensures that products are disposed of in an environmentally friendly and healthy way. If you decide to no longer use the oven, you should unplug and disconnect IMPORTANT the power cord so that it cannot be used.
-
Page 21: Troubleshooting
Troubleshooting Before calling service team for support, please check the following troubleshooting tips: Cause Reason Solution Use the natural convection position; The upper crust is dark Not enough heat from Use deeper cake tins; but the lower part too the bottom. -
Page 22: Warranty
Warranty This warranty applies to products sold by Dalxo in the U.S. It expressly applies to a single product only. Dalxo products are warranted for one year after purchase against defects in material and workmanship. Please save your receipt as proof of purchase is required to make a warranty claim. - Page 23 If you have a claim under this warranty, please contact : support@dalxo.com. For faster service, please provide the model number, serial number, and receipt ready for the...
