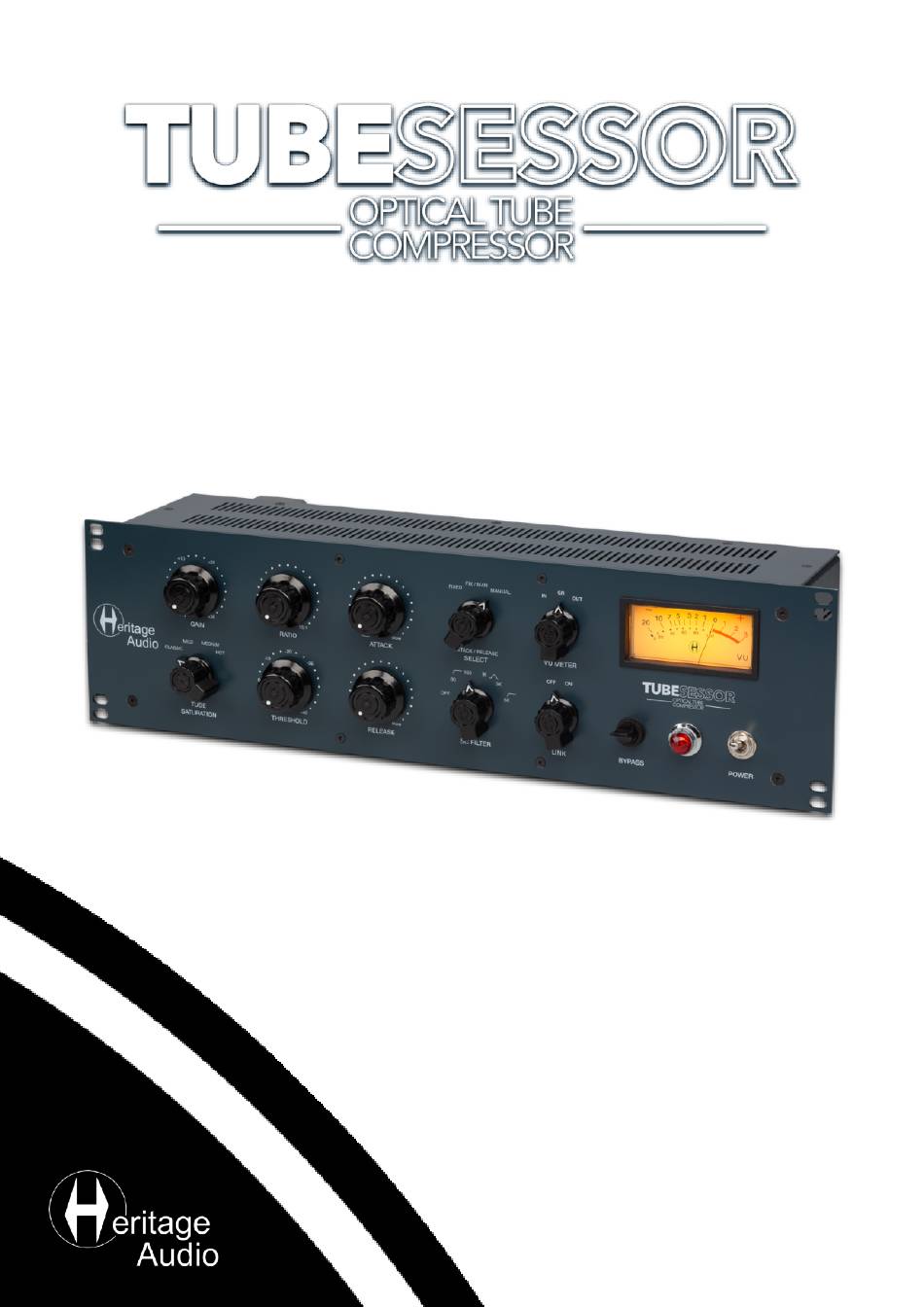

- Page 1 USER MANUAL November/2022 Rev. 1.0.
-
Page 2: Table Of Contents
Heritage Audio - Madrid, Spain © 2022 Heritage Audio S.L. is the sole owner of the copyright of all information and drawings contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission. -
Page 3: Description
HOT, an angry tone ready for a fight. This greatly increases the tonal options you can achieve with the TUBESESSOR therefore making it much more flexible than any other optical tube compressor out there. This takes full advantage of a creamy sounding NOS Raytheon double triode tube to add in just a pinch of aggression or fully transform the signal into something ready for war. - Page 4 As is the case with other tube offerings from Heritage Audio, the company has sourced NOS tubes for a lifetime, making sure your investment is safe and sound.
-
Page 5: Getting Started
9- RELEASE: Continuously variable from 0.05 to 10 seconds. 10- SC FILTER: This is a filter applied only to the control signal to decide if and where the TUBESESSOR will be less or more sensitive to certain frequencies. There are 5 choices available: 80, 160, 1K, 3K and 5K. The first two settings are great to avoid the compressor being unnecessarily overpowered by lower frequencies, very useful to avoid undesired pumping. - Page 6 REAR 1-TUBES: (2) User changeable valves with easy access. 2-LINE INPUT: Female Gold Plated XLR Connector. 3-LINE OUTPUT: Male Gold Plated XLR Connector. 4-VOLTAGE SELECTOR: Here you can select the correct voltage input according to the country you are in. 5-POWER INPUT: IEC standard power input connector.
-
Page 7: Measurements
MEASUREMENTS Frequency response 20 Hz: + 0.038 dBu, 20 kHz: - 0.112 dBu ∆dB = 0.15 dB from 20 Hz – 20 kHz THD @ 1 kHz, 0 dBu input with 0 dBu output, 0.02% Phase, normalized @ 1 kHz, 0 dBu... - Page 8 Compression Curves. Solid Line Ratio 10:1, Dashed Line Ratio 2:1, -1 dBu, -5 dBu, -10 dBu, -15 dBu, -20 dBu Threshold position Frequency response for -20 dB Threshold with Sidechain filter engaged. Red: 50 Hz, Purple: 80 Hz, Blue: 160 Hz, Cyan: 1 kHz, Green: 3 kHz, Yellow 5 kHz THD+N for the four Tube Saturation positions.
-
Page 9: Applications
APPLICATIONS VOICE TRACK INSERT OUTPUT AUDIO INTERFACE LINE INPUT AUDIO INTERFACE MONITOR SPEAKERS THUNDERBOLT COMPUTER BASS RECORDING OUTPUT D.I. INPUT LINE INPUT PREAMP TT-73 PREAMP TT-73 AUDIO INTERFACE MONITOR SPEAKERS THUNDERBOLT COMPUTER... - Page 10 STEREO COMPRESSION (LINKED) MASTER SLAVE LINK LINK CHANNEL LEFT CHANNEL RIGHT LINK MASTER LINK SLAVE OUTPUT 1 LINE INPUT 2 LINE INPUT 1 AUDIO INTERFACE AUDIO INTERFACE AUDIO INTERFACE OUTPUT 2 AUDIO INTERFACE MONITOR SPEAKERS THUNDERBOLT COMPUTER...
-
Page 11: Specifications
SPECIFICATIONS • Gain: 30 dB • Input Impedance: 600 Ω • Output Impedance: 20 Ω • Frequency Response: 20 Hz to 20 kHz ± 0.15 dB • Signal To Noise Ratio: >94 dB • Noise Floor: -75 dBu ± 1 dBu •... -
Page 12: Trouble Shooting
Try adjusting the SC FILTER to make the TUBESESSOR need. less sensitive to the lower frequencies. The TUBESESSOR does not seem to be reacting as it Have you allowed the recommend 10 minutes for the unit should. to warm up? The signal has decreased significantly after compressing. -
Page 13: Warranty Statement
2 years to the original purchaser. In the event of such defects, the product will be repaired without charge or, at our option, replaced with a new one if delivered to Heritage Audio prepaid, together with a copy of the sales slip or other proof of purchase date. -
Page 14: Recall Sheets
RECALL SHEETS... - Page 15 HERITAGE AUDIO. C/ Alfonso Gómez, 38, 3C. 28037 Madrid – Spain. Tel: +34 917 266 189 info@heritageaudio.com...
