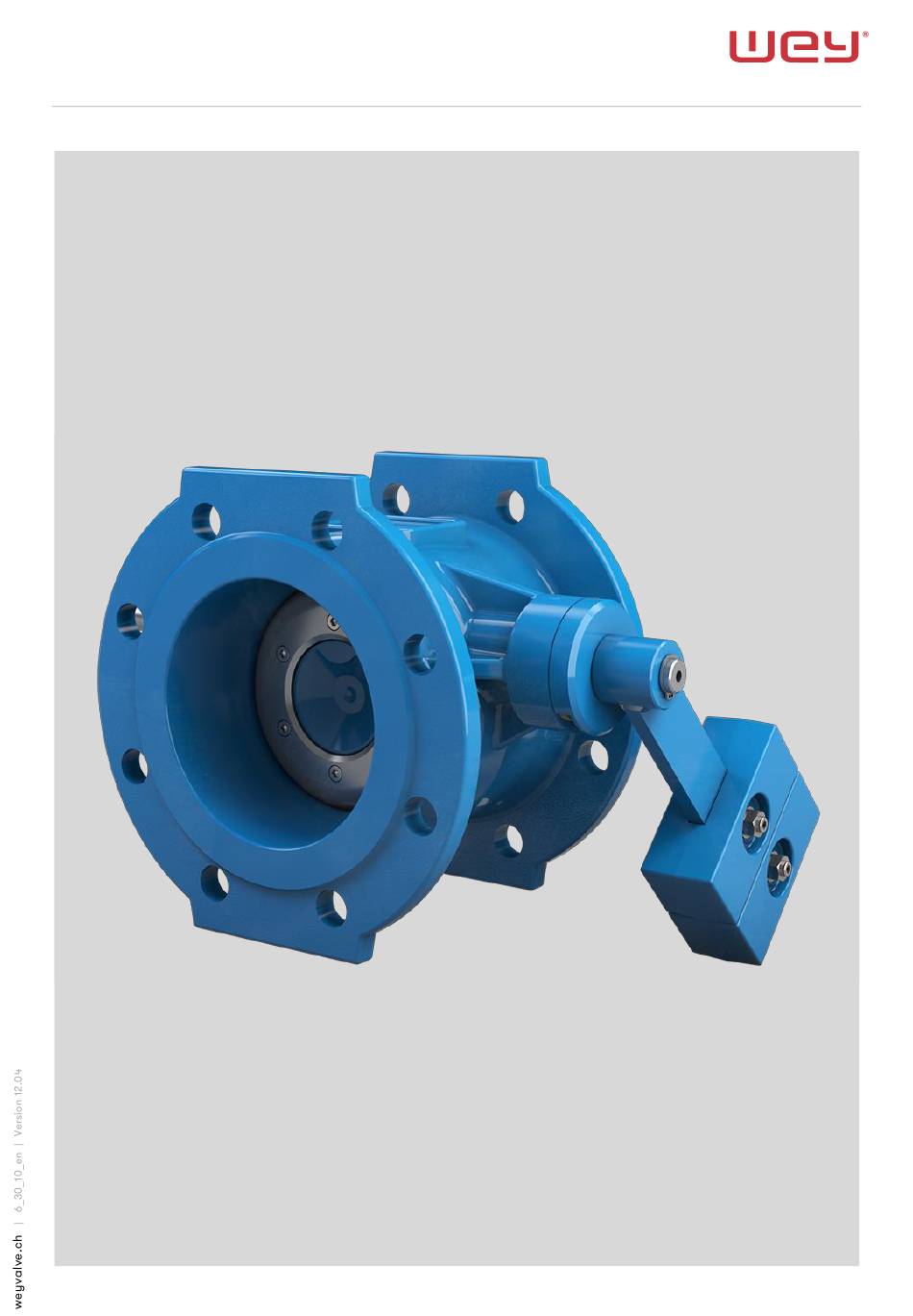

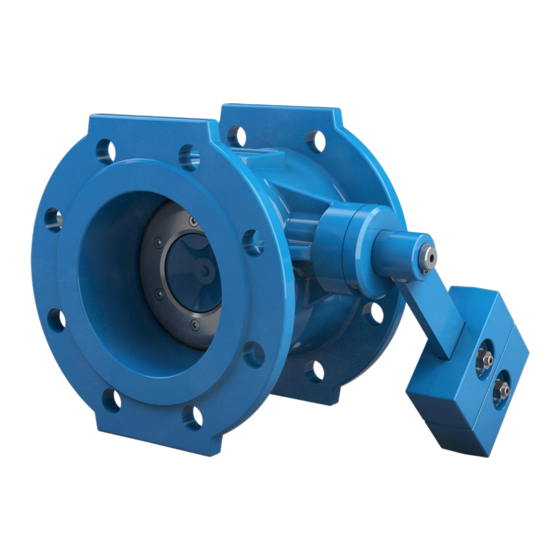

- Page 1 WEY CHECK VALVES TK/RSK Instruction manual 6.30.10 A S I STAG B RAND 1 / 7...
- Page 2 WEY CHECK VALVES TK/RSK | Instruction manual General Safety Transportation, Storage Transportation Storage Installation Preparation before installation Installation site Installation position Mounting Commissioning General measures Safety measures TK, RSK TK – Reservoir version Maintenance Operation cycles Checks / Lubrication Trouble shooting Final remarks 2 / 7...
-
Page 3: Transportation & Storage
WEY CHECK VALVES TK/RSK | Instruction manual General Safety Prior to any work or start-up and in order to ensure a proper functioning of our products, the instruction manual for installation and operation must be observed. Alterations on the products need our written approval. For consequential damages due to neglect of this direction, any liability will be rejected. - Page 4 WEY CHECK VALVES TK/RSK | Instruction manual For outdoor installations, the valves shall be protected at site with shields or covers against severe weather conditions like snow and ice. Installation position The check Wey Check Valves can be installed either horizontally or vertically. Therefore the respective lever positions acc.
- Page 5 WEY CHECK VALVES TK/RSK | Instruction manual Vertical line: flow from top to bottom Lever position 3.1 Right in flow direction 3.2 Left in flow direction 3.3 On both sides* Fig. 3 * If arrangement with two levers, no adjustable stop can be mounted. Mounting Before mounting, Wey Check Valves to be checked for possible transportation or storage damages.
- Page 6 WEY CHECK VALVES TK/RSK | Instruction manual Commissioning General measures Before taking the valves into service, clean body and actuator thoroughly. Check valve coatings for possible mounting damages and repair acc. to supplier’s instructions, if necessary . Safety measures For automated valves installed in an area where valve movement could be dangerous for people (or animals/objects), it must be ensured by the user on-site that all moving parts are enced with a suitable cover or protection shield.
- Page 7 WEY CHECK VALVES TK/RSK | Instruction manual Trouble shooting Trouble Possible Cause Elimination Leakage in bore passage of valve Valve disc not comp- letey closed; TK01 jammed particles between disc and – Open valve slightly and repeat closing action body internals –...
