Summary of Contents for B medical systems MRB 3000 SDD

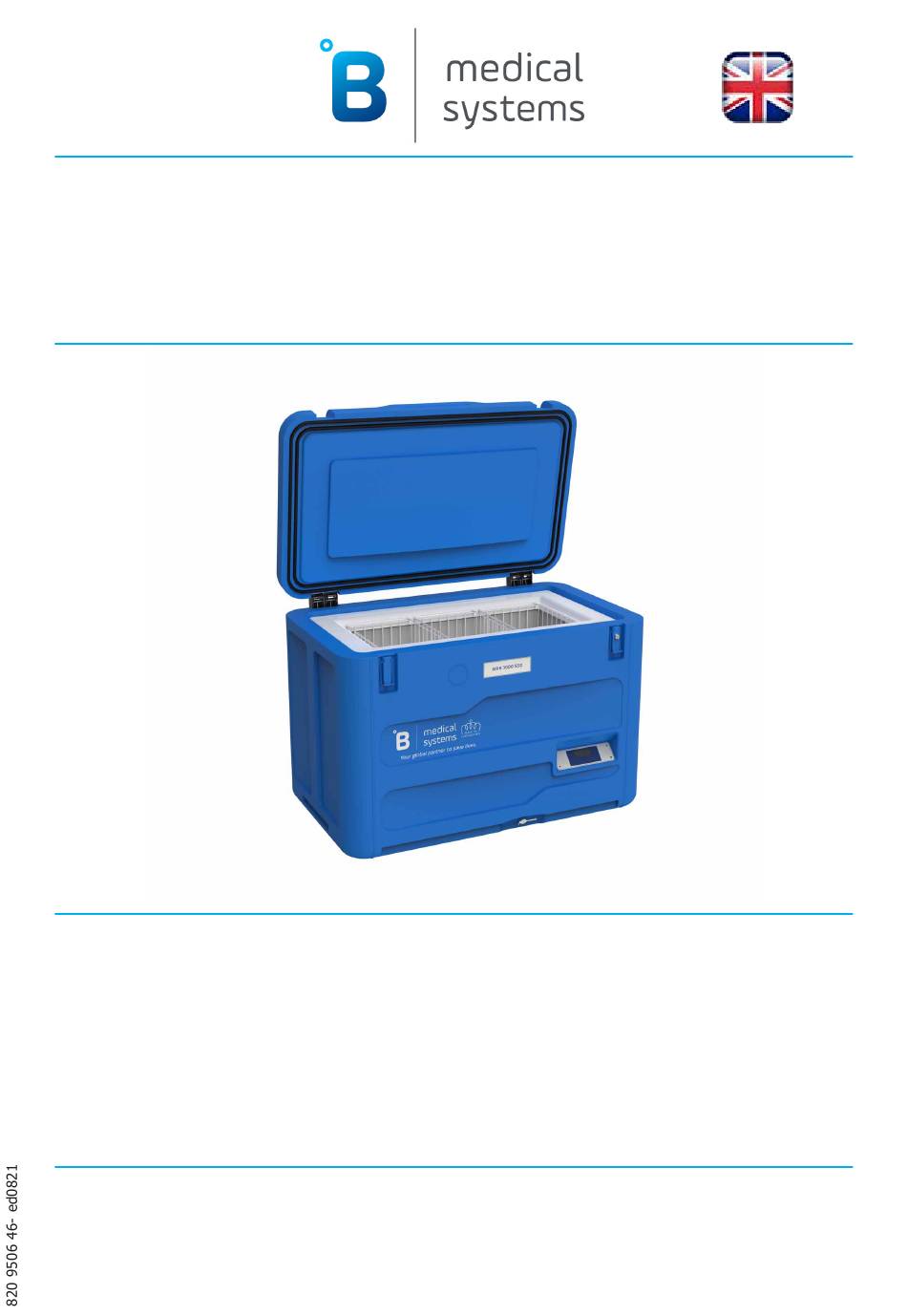

- Page 1 MRB 3000 SDD SOLAR DIRECT DRIVE ICE-LINED BLOOD STORAGE REFRIGERATOR Instructions for Use...
- Page 3 This equipment is certified according to the safety standard IEC 60335-1. Ice-lined blood storage refrigerators in 220-240V 50/60Hz are Class IIa medical devices according to the European Medical Device Regulation (EU) 2017/745 and bear a marking. 0123 This equipment is designed to be safe at least under the following conditions (based on the IEC 60335-1): •...
-
Page 4: Table Of Contents
3.1 Location ____________________________________________12 3.2 Final position ________________________________________13 3.3 Initial cleaning and disinfection __________________________13 3.4 Electrical Connection __________________________________14 3.4.1 Connecting to the “B Medical Systems” Solar Generator _14 4 Use and Operation _________________________________________15 4.1 Switching on _________________________________________15 4.2 Opening and closing___________________________________15 4.3 Important Advice for Storage ___________________________16... -
Page 5: Model Overview
1 Model Overview Group Model name Ice-lined Blood Storage Refrigerators MRB3000SDD... -
Page 6: Important Information
• B Medical Systems does not guarantee the safety of the stored products, if the appliance is used for any purposes other than its intended use or if any procedures other than those mentioned in this operating manual are used. -
Page 7: Warnings
2.1.1 Warnings • Do not use the device outdoors. Current leakage or electric shock may result if the unit is exposed to rain water. • Before cleaning or carrying out maintenance work, always switch the device off and disconnect the mains plug. -
Page 8: Cautions
2.1.2 Cautions • Ensure that there is sufficient room around the unit for air circulation. A good air circulation especially around the compressor is essential for trouble-free operation. Keep the ventilation openings of the compressor cover always free from any obstruction. Make sure that a minimum distance is provided between the unit and any wall or other device located next to it. -
Page 9: Labels And Symbols On The Packaging
2.2 Labels and Symbols on the Packaging • Follow the instructions for transport and storage of the product marked on the packaging: This side up Stacking limitation Store in a dry place Handle with care 2.3 Unpacking and Inspection CAUTION •... -
Page 10: Intended Use
2.4 Intended Use 2.4.1. Intended purpose Ice-lined blood storage refrigerators are devices intended to be used in the blood transfusion medicine for the support on the diagnosis, prevention and treatment of diseases or injuries by keeping whole blood or blood components at a protective and stable temperature between 2°C to 6°C until they are ready for use. -
Page 11: Contraindications
During a maximum transit time of 24 hours, the temperature of whole blood or other blood components must at no time exceed +10°C. Temperature excursions above +10°C increases the risk of sepsis due to bacterial contamination. Blood components intended for intrauterine and exchanged transfusion (e.g. IUT, ET, PR/ET) must be stored between 2°C and 6°C for no longer than five days prior to use. -
Page 12: Installation Procedure
3 Installation Procedure WARNING • All installation work and adjustments to the refrigerator must be carried out by qualified personnel. Work performed by persons with insufficient technical knowledge may adversely affect the performance or cause physical injury or damage to the equipment. •... -
Page 13: Final Position
3.2 Final position • The MRB3000SDD is equipped with bearing rolls. foot bearing roll Once it is in its final position, the feet must be screwed up to immobilise it and stop it rolling away. Screw the feet with the provided key until the rolls do not touch the floor anymore (image 3). -
Page 14: Electrical Connection
• All connected devices/signaling equipment must provide reinforced or double insulation for protection against electric shock. • The MRB3000SDD is intended to be connected to a “ B Medical Systems “ solar generator. • It is designed to work with a minimum solar radiation reference period of 3.5 kWh/m2/day. -
Page 15: Use And Operation
4 Use and Operation WARNING • The devices must only be used by adults. Do not allow children to play with it or touch the controls. • Do not store flammable or explosive substances inside these appliances (e.g. aerosols with flammable propellant). -
Page 16: Important Advice For Storage
4.3 Important Advice for Storage CAUTION • Before being loaded, the unit must have reached the set point temperature. • The load should only be stored in the provided baskets and should not exceed the storage areas. The total amount of stored blood bags should be evenly distributed on the 5 baskets (max. 18 blood bags per basket) (image 6). -
Page 17: Operating Controls
4.4 Operating controls 4.4.1 Main switch main switch • The main switch of the MRB3000SDD is fuse located behind the ventilation grid on the back side of the unit. ventilation grid 4.4.2 Control panel Alarm LED Display Power LED Mute Reset button button •... -
Page 18: Alarms
5 Alarms CAUTION • Upon the occurrence of an alarm situation, attempts must be made to discover the reason for the alarm and resolve it as quickly as possible. If that is not successful the necessary measures must immediately be taken so that the stored goods are not damaged. •... -
Page 19: Alarm Messages
5.2 Alarm messages • In case of an alarm, all display areas start flashing and the related alarm code is shown in the display. Furthermore the red Alarm LED on the display blinks and the buzzer sounds. The buzzer sound can be muted by pressing the Mute button on the display. - Page 20 • Minimum compressor speed error - E5.4 Keep the unit switched on. This problem might occur if the solar generator doesn’t deliver enough power (cloudy day, shadow on solar panels, bad positioning of solar panels etc.). Check the actual situation of the panels, and if the problem persists after corrective actions, notify Refrigerator Technician.
-
Page 21: Additional Equipment
6 Additional equipment 6.1 Rechargeable battery • The monitoring of the temperature alarm system and the temperature display during phases without power supply are maintained by an integrated rechargeable battery. • The battery is charged during phases with solar power. •... -
Page 22: Maintenance And Repair
7 Maintenance and repair WARNING • Before cleaning or carrying out maintenance work, always switch the machine off and disconnect the mains plug. Working on the connected appliance may cause electric shock or fire. • When disconnecting, always pull the plug and never the cable. Pulling the cord may result in electric shock or fire due to a short circuit. -
Page 23: Ventilation
7.3 Ventilation • The airflow to the internal fan must never be obstructed. The ventilation openings of the condenser MRB3000SDD must therefore never be blocked or covered. • The ventilation openings as well as the condenser behind the front ventilation grid must be cleaned regularly using the supplied brush. -
Page 24: Troubleshooting
9 Troubleshooting • If the unit does not appear to be working correctly, you may be able to attend to the fault yourself. Before calling a serviceman, carefully read and follow the information and advice below. Problem: Interior temperature too hot •... -
Page 25: Technical Data
10 Technical data Model MRB3000SDD Gross volume [L] Blood storage capacity [L] 40.5 External dimensions (HxWxD) [mm] 910x1270x780 Supply voltage [V ] 25V DC Energy Source(s) Solar / DC Power [W] Climate Class SN/T Set point [°C] Preset cold alarm [°C] 2°C Preset warm alarm [°C] 6°C... - Page 28 B Medical Systems S.à r.l. op der Hei 17 L - 9809 Hosingen, Luxembourg...
