SC466-HF(*)LDF (DXX) SERIES ANTENNA
SC466-HF(*)LDF (DXX-PIP) SERIES ANTENNA
SC366-HF(*)LDF (DXX) SERIES ANTENNA
SC46A-HF(*)LDF(DXX-PIP) SERIES ANTENNA
ITEM NO.
1
2
85 Mary Street, Aurora, Ontario Canada L4G6X5 (905)727-0165 ... (800)263-3275 ... Fax : (905)727-0861

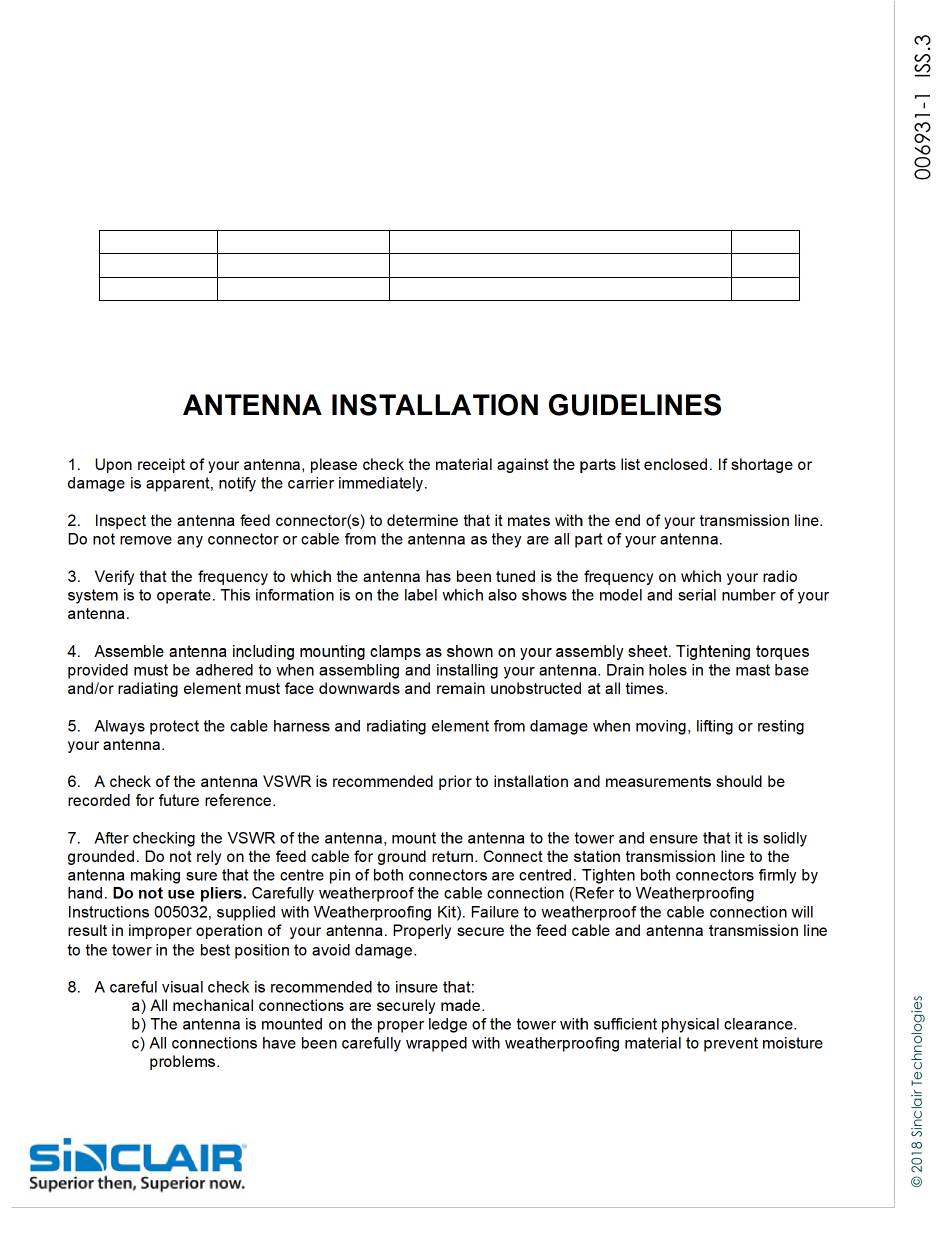

INSTALLATION INSTRUCTIONS
PART NUMBER
TO SUIT
ANTENNA ASSEMBLY
015768
WEATHERPROOFING KIT, WPK-1
DESCRIPTION
QTY.
1
1
Advertisement
Table of Contents
Related Manuals for Sinclair SC466-HF LDF Series
Summary of Contents for Sinclair SC466-HF LDF Series
- Page 1 INSTALLATION INSTRUCTIONS SC466-HF(*)LDF (DXX) SERIES ANTENNA SC466-HF(*)LDF (DXX-PIP) SERIES ANTENNA SC366-HF(*)LDF (DXX) SERIES ANTENNA SC46A-HF(*)LDF(DXX-PIP) SERIES ANTENNA ITEM NO. PART NUMBER DESCRIPTION QTY. TO SUIT ANTENNA ASSEMBLY 015768 WEATHERPROOFING KIT, WPK-1 85 Mary Street, Aurora, Ontario Canada L4G6X5 (905)727-0165 ... (800)263-3275 ... Fax : (905)727-0861...
- Page 2 BOTTOM MOUNTED ANTENNA UPRIGHT POSITION FOR ANTENNA REPLACEMENT ALIGN THE TOP EDGE OF THE ANTENNA AT THE SAME LEVEL OF THE OLD ANTENNA. SUPPORT PIPE (NOT SUPPLIED) SUGGESTED CLAMP NOTE: CLAMPS NOT INCLUDED SPACING PURCHASE SEPARATELY 51mm CONNECTOR WEATHERPROOF PER 005032 85 Mary Street, Aurora, Ontario Canada L4G6X5 (905)727-0165 ...
- Page 3 SIDE MOUNTED ANTENNA, UPRIGHT 711mm 28in 51mm 305mm 12in 102mm MIN. 51mm 127mm NOTE: SIDE MOUNTED ANTENNA IS SHOWN. USE SMK- 335- A3 PER DWG #005991. KIT SHOULD BE PURCHASED SEPARATELY DRAIN ORIENTATION THE ANTENNA IS SHIPPED WITH SCREWS INSTALLED IN THE DRAIN HOLES AT EACH END OF THE ANTENNA.
