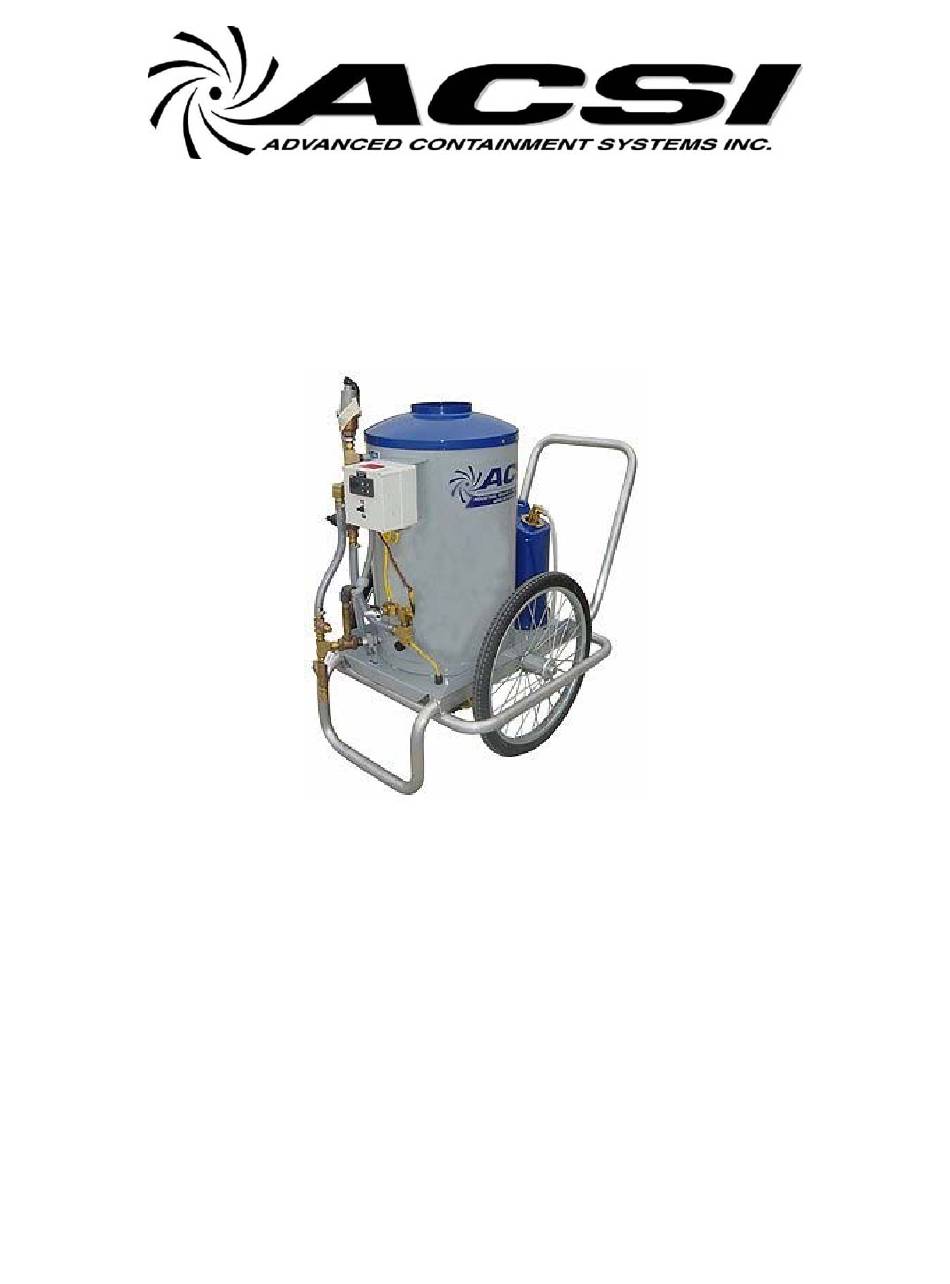

- Page 1 8720 LAMBRIGHT ROAD HOUSTON, TEXAS 77075 PHONE: (713) 987-0336 FAX: (713) 987-0355 www.acsi-us.com VERSI HEAT II PORTABLE WATER HEATER UNIT PART ORDER NUMBER: VHII OPERATING & MAINTENANCE MANUAL DOCUMENT NUMBER: OPMM-007E-R0...
-
Page 2: Reference Documents
NOTE: The purpose of this document is to provide the basic operation and maintenance information for the VERSI HEAT II PORTABLE WATER HEATER UNIT. This manual is limited to items stated within. Any changes, additions or modifications will require an amendment approved by ADVANCED CONTAINMENT SYSTEMS, Inc. -
Page 3: General Information
DOCUMENT NUMBER: OPMM-007E-R0 1. GENERAL INFORMATION: Versi Heat II is a versatile unitized high-volume blending diesel fired water heater. Versi Heat II was designed with simplicity of operation and serviceability in mind. Its rugged, compact square tubing steel frame construction and integrated water management system make it easy to use in close quarters. -
Page 4: Operation
120 PSI, AND A MINIMUM INPUT FLOW OF 18 GALLONS PER MINUTE. IT WILL NOT OPERATE IF WATER SUPPLY IS INSUFFICIENT OR SHUT-OFF. 3.1.1 Versi Heat II requires a power supply of 115 VAC, 60 Hz, 5.5 amp, minimum for normal operation. 3.1.2 Versi Heat II requires US#1 or #2 automotive diesel, US#1 or #2 home heating oil, Kerosene, or JP4. - Page 5 CONTAMINATED FUEL IS THE MOST COMMON SOURCE OF PROBLEMS WITH WATER HEATERS. VERSI HEAT II NEEDS TO BE OPERATED REGULARLY TO KEEP THE FUEL SUPPLY, FRESH AND CLEAN. IF IDLE FOR MORE THAN A MONTH, CONTACT YOUR DISTRIBUTOR FOR ASSISTANCE.
-
Page 6: Preventive Maintenance
Inlet Strainer (Fig. 2): 4.2.1 Versi Heat II is outfitted with an inlet “Y” strainer (Fig. 2) located at the inlet of the heater coil. The screen in the strainer keeps contaminants from flowing into the water stream feeding the shower booms. It also protects “wetted” mechanical components of the water heater. - Page 7 DOCUMENT NUMBER: OPMM-007E-R0 4.2.3 Remove the cap and check the screen (Fig. 3) for contamination. Rinse the screen with water if necessary. Fig. 3 Strainer Gasket 4.2.4 When reassembling the strainer make sure, the screen is properly seated in both, the body and the cap, and the gasket is properly located.
- Page 8 DOCUMENT NUMBER: OPMM-007E-R0 4.3.3 To exercise the valve, set the switch on the control panel (Fig. 1) to the “off” position. 4.3.4 Close all the water heater delivery valves (Fig. 5). Delivery Valves Fig. 5 Water Heater Delivery Valves 4.3.5 Now lift the manual activation handle on the T&P relief valve (Fig.
- Page 9 CONTAMINATED FUEL IS THE MOST COMMON SOURCE OF PROBLEMS WITH WATER HEATERS. VERSI HEAT II NEEDS TO BE OPERATED REGULARLY TO KEEP THE FUEL SUPPLY, FRESH AND CLEAN. IF IDLE FOR MORE THAN A MONTH, CONTACT YOUR DISTRIBUTOR FOR ASSISTANCE.
- Page 10 DOCUMENT NUMBER: OPMM-007E-R0 Fig. 8 Fuel Filter – Center Bolt 4.4.5 Separate the bowl (Fig. 9) from the head to expose the fiber element and pour the fuel in bowl into the container. Fig. 9 Fuel Filter – Fiber Element Proprietary Information: This document is the property of ADVANCED CONTAINMENT SYSTEMS, Inc.
- Page 11 DOCUMENT NUMBER: OPMM-007E-R0 4.4.6 The filter is composed of several bands of wool and a center screen. It is not necessary to disassemble the components of the element to clean it, just rinse properly. Although the element is reusable (if properly cleansed with mineral spirits and blown clear), we recommend one or two elements be stocked at all the time for quick turn around.
-
Page 12: Replacement Parts List
DOCUMENT NUMBER: OPMM-007E-R0 5. REPLACEMENT PARTS LIST: Versi Heat Replacement Part List: Item: Part Number: Descriptions: 56220105 Fuel Tank GI Jerry Can 5 Gal 56220106 Fuel Tank Holder 61010103 Fuel Tubing 1/4" 61080003 Hose Clamp #4 61080012 Hose Clamp #12 61090402 Hose Barb for Fuel Tank 61090404...
