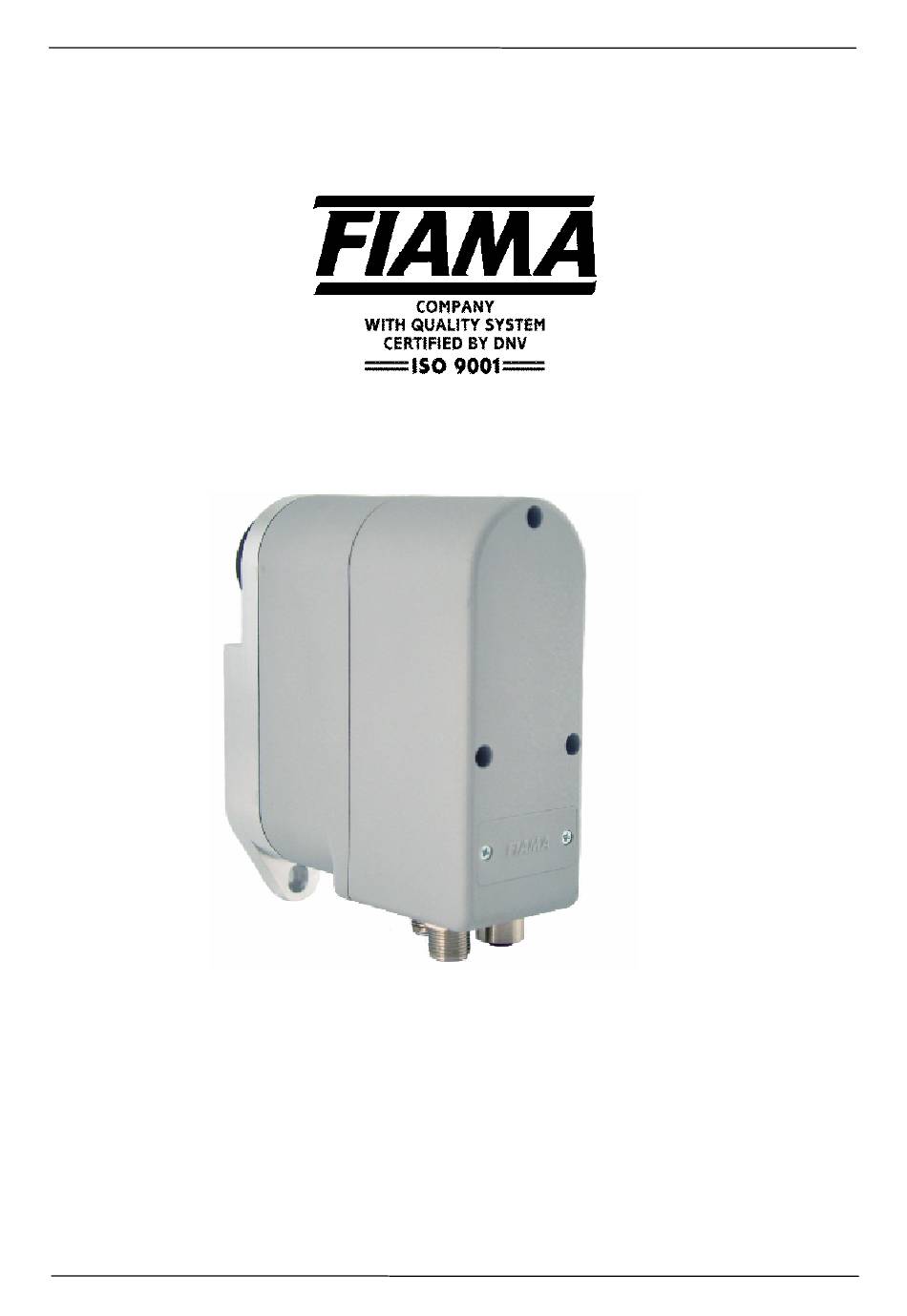

- Page 1 SERVO.D Positioning unit USER’S MANUAL AND MAINTENANCE POSITIONING UNIT SERVO.D Data: 13/01/16 file: Servo.D_ing.doc pg 1/7...
- Page 2 This manual has been designed by the manufacturer to provide the necessary information regarding the unit SERVO.D to those who are authorized to carry out safely its installation, maintenance, dismantling and disposal. All the necessary information for the buyers and planners can be found in the Sales catalogue.
- Page 3 PID. The SERVO.D unit has a hollow shaft output to enable a simple assembling and a versatile use, even with pre-existent manual motion machines that have to be automated. Therefore it is suitable for a large number of applications in machinery within industries such as printing, packaging, woodworking, marble, plastic, etc.
- Page 4 SERVO.D Positioning unit Power supply a) Before connecting the unit, check that the power supply tension is within the permitted limits and that it corresponds to the one indicated on the tag. b) Carry out the electrical connections with the instrument disconnected.
- Page 5 SERVO.D Positioning unit ELECTRICAL CONNECTION Disconnect from power supply before connecting/disconnecting the equipment/machinery. The connecting cables must be kept separate from the power lines or from electromagnetic interference sources. Pay careful attention to the electrical connections: any failure caused by a faulty connection will render the guarantee null and void.
- Page 6 SERVO.D Positioning unit MODBUS RTU BAUD ADDRESS RATE (Baud) 2400 4800 9600 ecc…… ecc…… 19200 By changing of address or baud rate is necessary to switch off and turn on the Servo. CANopen Transmission speed of serial communication (baud rate: 10, 20, 50, 100, 125, 250, 500, 1000kbaud).
- Page 7 Tel. (+39) 0521.672.341 - Fax. (+39) 0521.672.537 – e-mail: info@fiama.it - www.fiama.it FIAMA srl is not responsible for any damage to persons or things caused by tampering and wrong use and in any case that are not consistent with the features of the instrument.
