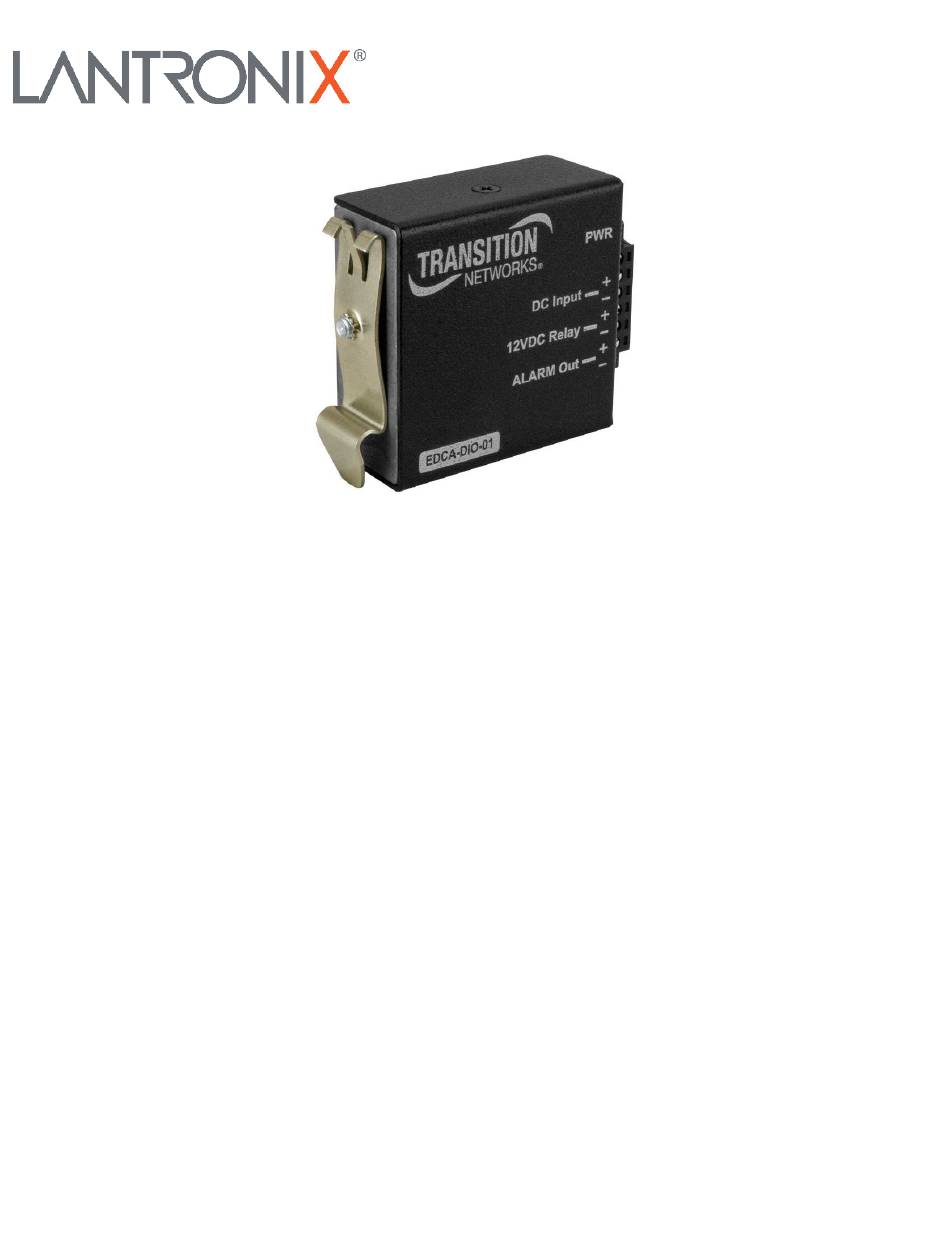

- Page 1 EDCA-DIO-01 Enclosure Door Contact Alarm Install Guide Part Number 33790 Revision C February 2022...
- Page 2 EDCA-DIO-01 Install Guide Intellectual Property © 2022 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries. All other trademarks and trade names are the property of their respective holders.
-
Page 3: Table Of Contents
Table of Contents Product Description ................................. 4 Ordering Information ................................4 Features ....................................4 Specifications ..................................5 EDCA-DIO-01 Dimensions ..............................5 Installation ....................................6 Package Contents ................................6 DIN Rail Clip Installation ..............................6 Wall Mount Plate Installation (Optional) ..........................6 EDCA-DIO-01 Installation .............................. -
Page 4: Product Description
DIO voltage input range. The EDCA-DIO-01 can be mounted within the cabinet via DIN Rail Clip or via an optional Wall Mount Plate. For example, the EDCA-DIO-01 can be used in conjunction with the Lantronix SISPM1040-362-LRT, SISPM1040-384-LRT-C, or SISPM1040-582-LRT hardened managed Ethernet switches. -
Page 5: Specifications
Lantronix EDCA-DIO-01 Install Guide Specifications IEEE, IETF, Safety Compliance Regulatory Compliance for Emission EN 55032 Regulatory Compliance for Immunity EN 55024 Power Consumption 1.2W (100mA at 12V out max.) Power Source 20-60 VDC Power Output 12VDC +/- 10% Dimensions 2.2“ x 2” x 7/8” (6.2 x 5 x 2.2 cm) Weight 0.2 Lb. -
Page 6: Installation
Lantronix EDCA-DIO-01 Install Guide Installation Package Contents Carefully unpack the EDCA-DIO-01 and verify you have received the following items. Contact your sales representative if any item is missing. Please save the packaging for possible future use. One EDCA-DIO-01 • One printed Quick Start Guide •... -
Page 7: Edca-Dio-01 Installation
EDCA-DIO-01 Install Guide EDCA-DIO-01 Installation The EDCA-DIO-01 requires power and can be powered by the same power supply providing power to the Lantronix Ethernet switch in the cabinet. The power port (marked DC Input) is a 2-wire Terminal Block supporting 20 - 60 VDC. -
Page 8: Edca-Dio-01Install Procedure
Switch Software Configuration When the EDCA-DIO-01 is installed with a Lantronix managed hardened Ethernet PoE switch, you can set up alarm notifications and clear the logged alarm from either the switch Web UI or the CLI. See the related manual for your particular switch model. -
Page 9: Recording Information
Serial No.: _____________________________________________________________________________________ Lantronix connected devices: ____________________________________________________________________ Others connected devices: _______________________________________________________________________ LED Status: ____________________________________________________________________________________ Your Lantronix service contract number: ____________________________________________________________ Describe the failure: _______________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ Describe any action(s) already taken to resolve the problem (e.g., changing mode, rebooting, etc.): ________________... -
Page 10: 22365 Magnetic Contact Switch (Option)
Lantronix EDCA-DIO-01 Install Guide 22365 Magnetic Contact Switch (Option) The optional 22365 Magnetic Contact Switch accessory is sold separately. The 22365 features positive clamping terminals with anti-rotation lugs and captured screws with combination heads for easy, quick installations. The positive terminals do not require washers that can corrode or increase resistance. -
Page 11: Compliance Information
Declaration of Conformity Manufacture’s Name: Lantronics, Inc. Manufacture’s Address: 48 Discovery, Suite 250, Irvine, California 92618 USA Declares that the products: EDCA-DIO-01 Enclosure Door Contact Alarm Conform to the following Product Regulations: FCC Part 15 Class A, EN 55032:2012, EN 55024:2010... - Page 12 Lantronix EDCA-DIO-01 Install Guide Lantronix Corporate Headquarters 48 Discovery, Suite 250 Irvine, CA 92618, USA Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Tel: +1 (800) 526-8766, Tel: +1 (949) 453-3990, or https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to www.lantronix.com/about/contact.
