stewi First LADY Mounting Instructions

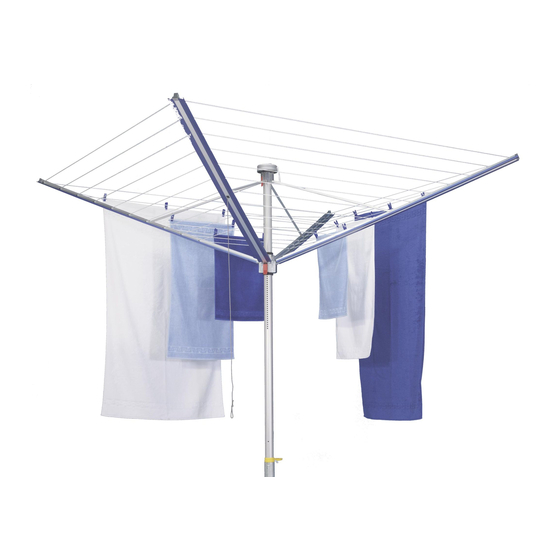

Mounting instructions STEWI First LADY / LADY 50m

How to set the Rotary Dryer

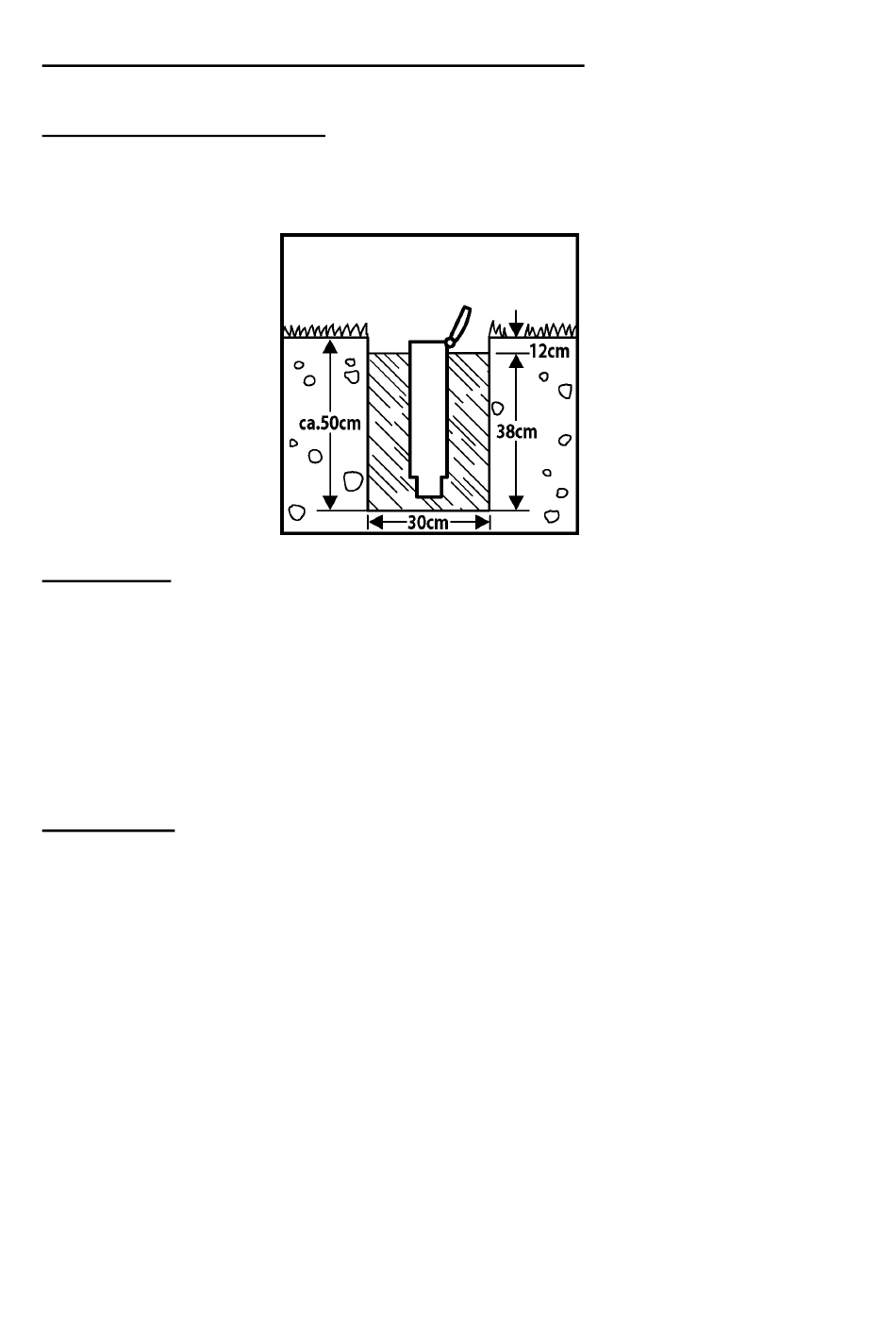

Choose a place to set the ground tube, where the open rotary dryer can turn freely. The
plastic sleeve supplied should be concreted as shown in the figure below.

How to open

Move the plastic head (top of rotary dryer) by sliding it a bit upward. Now the aluminium flaps
(which protect the lines) are free. Push them somewhat more towards the outside in order to
allow easy opening using the pulling line (at hand height).
The pull line is exactly at the height of your hand. Pull it until the rotary dryer engages.
Should the washing lines not be tight enough, push the bearer arm (near the pole/central star
part) upward, until the lines are tight, and the clutching mechanism (central star part)
engages in the upper holes.

How to close

Take the pull line into your hand, pull the red rocking lever (of the star part) towards you and
let the upper part of the rotary dryer glide downwards.
Grab the aluminium flaps with both hands below the plastic head (top), so that you can slide
the plastic head over the aluminium flaps. Thus, the aluminium flaps are secured by the
plastic hooks (flap holders) under the plastic head. (See picture)
Bend down (in front of the Lady) and pull the left aluminium flap (for right-handers) with your
left hand towards the outside so that you can glide the washing lines with your right thumb
between the opening of the two aluminium flaps. (See picture)
