RATING (A)
RATED RESIDUAL OPERATING CURRENT (IΔn)
AFDD060630B AFDD061030B AFDD061630B AFDD062030B AFDD062530B AFDD063230B AFDD064030B
PART NUMBER
GTIN-13
5060523524457
STANDARD
NUMBER OF POLES
RATED VOLTAGE (Un/AC)
FREQUENCY (Hz)
RATED BREAKING CAPACITY (Icn)
RATED CURRENT (In)
TRIPPING CHARACTERISTICS
RESIDUAL CURRENT CHARACTERISTICS
RATED RESIDUAL OPERATING CURRENT (IΔn)
MECHANICAL ENDURANCE
PROTECTION DEGREE (IP)
MAXIMUM TERMINAL CAPACITY
RECOMMENDED TIGHTENING TORQUE (Nm)
FLYING NEUTRAL CABLE LENGTH (mm)
OVERVOLTAGE PROTECTION
MATERIAL
WEIGHT (1PC) Kg
INNER CARTON QUANTITY
OUTER CARTON QUANTITY
ENERGY LIMITING CLASS
MOUNTING
ORIGIN OF MANUFACTURE

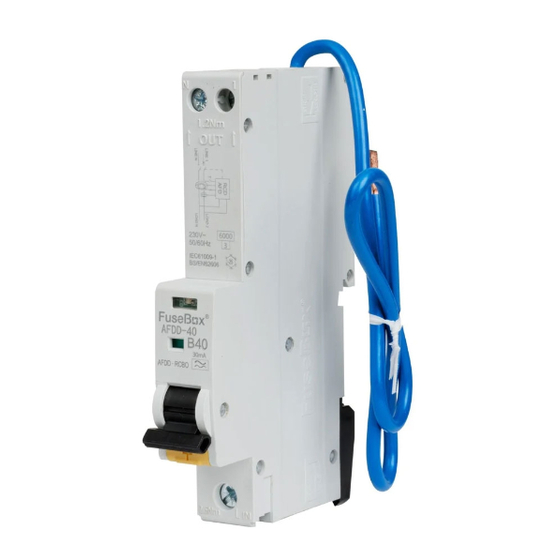

FUSEBOX 2021 AFDD 6KA 1P+N B CURVE 6_40A TECHNICAL DATA
AFDD_RCBO (ARC FAULT DETECTION DEVICE)
6
10
16
30mA
30mA
30mA
5060523524464
5060523524471
20
25
30mA
30mA
30mA
5060523524488
5060523524495
5060523524501
IEC 61009-1, BS EN 62606
1P+N (Switched)
230V
50/60
6000A (6kA)
6, 10, 16, 20, 25, 32, 40
B CURVE : 3-5In
TYPE A (AC AND PULSATING DC UP TO 6mA)
0.03
10,000
20
1-16mm² IN L / 1-10mm² OUT N L
2.5Nm IN L / 1.2Nm OUT N L
450 (can be cut to suit)
>285V
PA6 (Nylon 6)
0.185
1
60
3
35mm Din rail mounting
CHINA
