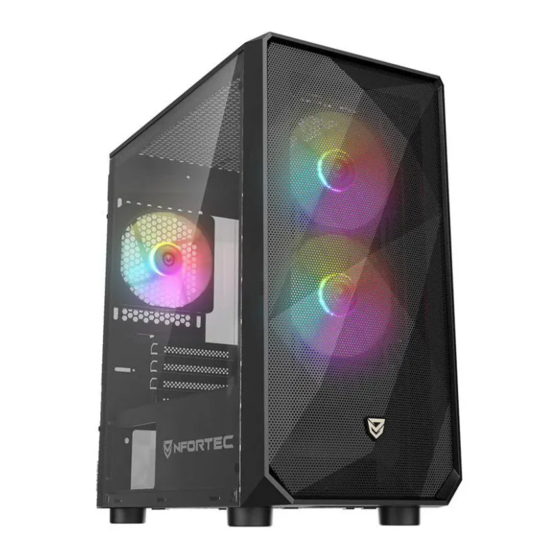

Rgb gaming tower
Hide thumbs Also See for DYS:

Advertisement

INSTRUCTIONS MANUAL
MANUAL DE INSTRUCCIONES
D Y S
RGB G A M ING T O W ER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DYS and is the answer not in the manual?

Questions and answers

Summary of Contents for nfortec DYS

  • Page 1 INSTRUCTIONS MANUAL MANUAL DE INSTRUCCIONES D Y S RGB G A M ING T O W ER...
  • Page 2: Technical Specifications

    TECHNICAL SPECIFICATIONS ESPECIFICACIONES TÉCNICAS MODEL MODELO DIMENSIONS (L x W x H) 340mm x 205mm x 412mm DIMENSIONES (L x An x Al) 340mm x 205mm x 412mm WEIGHT 4,9Kg PESO 4,9Kg MATERIAL Steel 0,6mm SPCC, tempered glass MATERIAL Acero 0,6mm SPCC, cristal templado Front: 3x 120mm (2x RGB included) Parte delantera: 3x 120mm (2x RGB incluidos) 2x 140m...
  • Page 3 PC CASE GENERAL DIAGRAM DIAGRAMA DE INFORMACIÓN GENERAL Magnetic Dust filter Front mesh panel HDD/SSD enclosure bays Filtro de polvo magnético Panel frontal mallado Bahías para discos duros HDD y SSD Side tempered glass 120mm RGB Fans Front panel I/O Cristal templado lateral Ventiladores RGB 120mm Panel frontal de E/S...
  • Page 4 FRONT PANEL I/O AND MOTHERBOARD CONNECTORS PANEL FRONTAL DE E/S Y CONECTORES PARA PLACA BASE Power LED Button USB3.0 HD AUDIO Reset ACCESORY BAG ACCESORIOS PARA INSTALACION PSU screws Motherboard standoffs Tornillos para Fuente de alimentación Soportes para placa base x 12 HDD screws Motherboard Screws...
  • Page 5: Basic Installation

    BASIC INSTALLATION INSTALACIÓN BÁSICA Disassemble the side panel and the front panel. Desmontar los paneles laterales y el panel frontal. Install the power supply. Instalación de la fuente de alimentación. Install the motherboard. Instalación de la placa base. Install HDD/SSD. Instalación de discos duros HDD/SSD.
  • Page 6 Make sure the screw holes for PSU and the PC case are aligned before screwing. Asegúrate que los huecos para los tornillos de la fuente de alimentación se alinean de manera correcta con los de la torre antes de atornillar. Make sure that the motherboard aims at the copper cylinder and install the standoffs (No.2) before screwing in with the No.4 screws.
  • Page 7 Take off the hard disk enclosure for both HDD and SSD and install it with No.4 screws Desmonta el soporte para los discos HDD y SSD e instálalos con los tornillos No.4 Remove the baffle marked in the picture, make sure the VGA card aims at the motherboard slot and then fix VGA card and case with No.1 screw.
  • Page 8 FRONT FRONTAL Fans → 3x 120mm Ventiladores → 3x 120mm → 2x 140mm → 2x 140mm Radiator up to 240mm Radiador hasta 240mm SUPERIOR Fans → 2x 120mm Ventiladores → 2x 120mm → 2x 140mm → 2x 140mm Radiator up to 240mm Radiador hasta 240mm REAR TRASERO...
  • Page 9 5V 3PIN A-RGB TO MOTHERBOARD CONECTOR A PLACA BASE DE 5V 3PIN A-RGB 5V 3PIN A-RGB BRIDGE RESET SW TO CONTROL COLOUR MODES BY CASE LED/RESET BUTTON CONECTOR PUENTE PARA OTROS DISPOSITIVOS A-RGB IF NOT SYNC WITH CONTROLLER HUB OR MOTHERBOARD CONECTOR A RESET SW DE LA CAJA/TORRE PARA CONTROLAR LOS MODOS DE COLOR EN...
  • Page 10 D Y S RGB G AM ING T O W ER...
