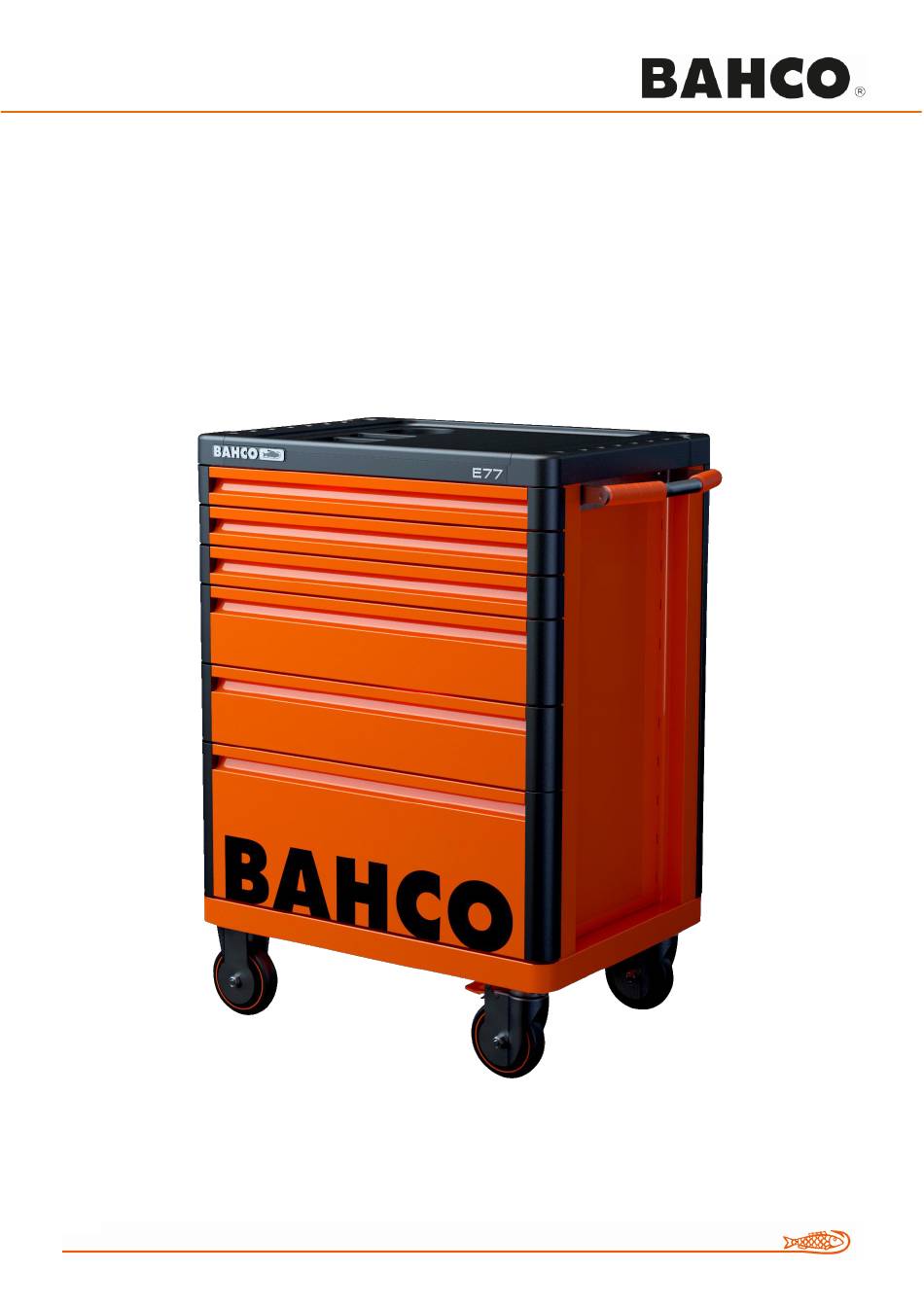

- Page 1 1477K Tool trolleys Service Manual Annex: The lock key does not lock the drawers November 2020...
- Page 2 Introduction In some units, after a while of use, you can open the drawers even if the trolley is locked. This is due to the internal lock bar got blocked. To unblock the locking bar and to avoid future blockages, follow the next instructions: Tooling B190.040.100 BahcoFit Slotted Flat Tipped...
- Page 3 To disassemble the second drawer it is necessary to move the switches of the first drawer guide Disassemble the top cover screws Remove the top cover Unscrew the left top side over...
- Page 4 Disassemble the left top side covers Unscrew the locking system cover Rotate 180º the locking system cover Unblock the locking bar...
- Page 5 Make a 2mm hole with a drill in the position described below, and screw on it a 14.8mm screw Test that the locking system works well as the next video shows: https://youtu.be/7oDM2j1FxFo...
- Page 6 Assemble the drawers and the top cover. For more detailed information about the trolley disassembly and assembly process, refer to the next video guide: https://youtu.be/CHBNRwEf5a0 Remarks “SNA Europe does not cover the causes over negligence in tool use and/or repair, inadequate care, or abnormal usage conditions. Follow the instructions for proper use, safety, maintenance and servicing given by SNA Europe”...
