Summary of Contents for Hay PIERRE CHARPIN PC TASK Series

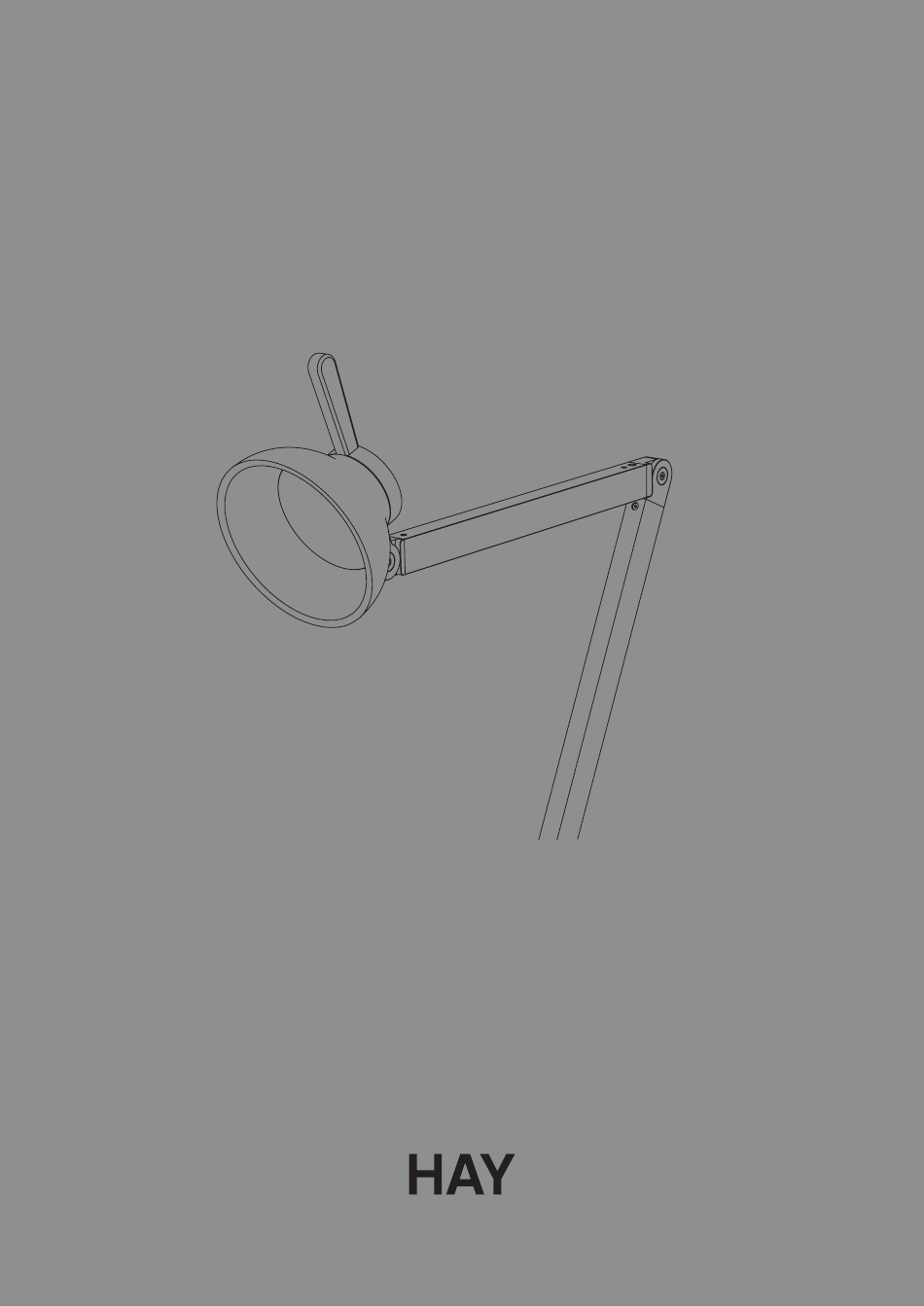

- Page 1 – INSTRUCTION MANUAL – PC TASK COLLECTION DESIGN BY PIERRE CHARPIN...
-
Page 3: General Information
The product must not be modified in any way. HAY accepts no responsibility for any products that have been modified or tampered with. The external flexible cable or cord of this luminaire cannot be replaced. - Page 4 – PARTS – Lamp Allen key Screw Adapter Power supply...
- Page 5 The lamp can be used with several different bases and fixings. Unpack all the parts and check that you have received all the parts listed.
- Page 6 Table Lamp only Insert the lamp into the base (packed separately). Using the provided Allen key and screw, the lamp can be fixed to the base through a hole underneath.
- Page 7 Clamp only Clamp the clamp base in place by adjusting the grip. Insert the lamp body into the clamp base.
- Page 8 Table Insert only Carefully drill a 10 mm hole into a desktop where you would like the lamp to be positioned. Insert the table. Insert into the hole and tighten the circular nut underneath to hold firmly in place.
- Page 9 Wall Bracket only With a pencil, mark fixing holes on the wall. Drill holes and insert wall plugs. Ensure you use the correct type of wall plug for the material you are drilling into.
- Page 10 Wall Bracket only Screw the internal bracket to the wall with the fixings provided and place the external plastic cover over the wall bracket.
- Page 11 Wall Bracket only Wall Bracket only Fix the external plastic cover in place with the provided screw. Fix the external plastic cover in place with the provided screw. The groove on the side of the plastic cover provides simple The groove on the side of the plastic cover provides simple cable cable management for the wall mounted lamp.
- Page 12 Wall Bracket only Insert lamp into the wall bracket and push the cable Wall Bracket only into the groove. Insert lamp into the wall bracket and push the cable into the groove.
- Page 13 The lamp can be freely moved and will hold in any position. The lamp can be freely moved and will hold in any position.
- Page 14 If necessary, the joints can be adjusted using the provided torx tool. Carefully tighten the bolts until the lamp supports itself in any position. If necessary, the joints can be adjusted using the provided torx tool. Carefully tighten the bolts until the lamp supports itself in any position.
- Page 15 Plug the trailing cable into the power supply. Attach the correct adapter for your region. The lamp is now ready for use.
-
Page 16: Care And Maintenance
– CARE & MAINTENANCE – Our Care & Maintenance offers guidance for optimal maintenance of your HAY product. It includes advice and instructions on cleaning and caring for specific materials to prolong the life of your lighting. Please find our Care & Maintenance... - Page 20 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.com www.hay.com 10/01/2022...
