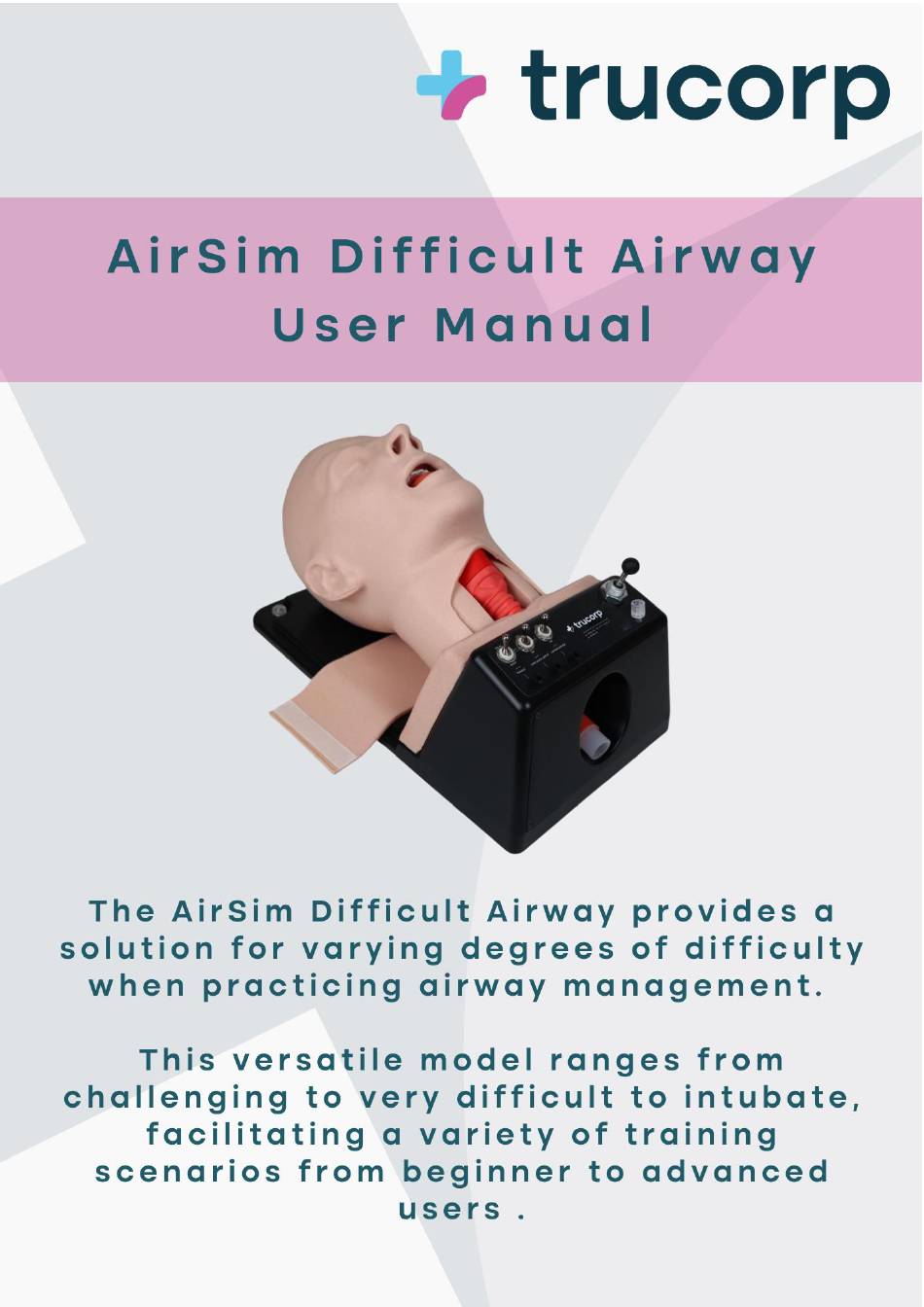

Summary of Contents for TruCorp AirSim Difficult Airway
-
Page 2: Table Of Contents
Contents Product specifications ........................1 Package contents ..........................2 Recommended equipment sizes ....................2 Initial set-up information ........................ 2 List of procedures facilitated by the AirSim Combo X ............3 Replacement of consumables ...................... Care and maintenance ........................Warranty ............................Product specifications... -
Page 3: Package Contents
Full shipment dimensions: 47 x 27 x 34cm Package contents • 1 AirSim Difficult Airway ready-to-use (DA91100) • 1 AirSim Difficult Airway carrier case (ABAG01) • 100ml bottle of lubrication (TL001) • 5 Larynx inserts (NLX050 – 1 supplied on the manikin and 4 spare) •... -
Page 4: List Of Procedures Facilitated By The Airsim Combo X
Laryngospasm, Tongue Edema and a Displaced Larynx. The Airsim Difficult Airway has a built in pump and extendable hose to supply air to each feature. A control toggle situated on the base interface belongs to each of the... - Page 5 airway features and is used for activation and deactivation. For specific features, please see below; Laryngospasm On the base’s interface, switch the laryngospasm control toggle from ‘off’ to ‘on.’ This opens up the system to allow air to travel to the mechanism. Pull out the pump’s hose and attach the hose’s spin luer lock to the corresponding luer lock on the base.
- Page 6 When connected, use the pump to activate the mechanism until partially displaced or fully displaced. Remove the hose and return it to its retracted position. With the hose retracted fully, the feature will remain activated as long as the control toggle remains in the ‘on’ position. When finished, switch the control toggle to ‘off,’...
- Page 7 Mechanical Features Overview The Airsim Difficult Airway has the ability to adjust the; Lock jaw, Jaw position and head rotation. The lockjaw and jaw positions are activated by pin plunger components that have two positions;...
-
Page 8: Replacement Of Consumables
To move and lock out at a different position, repeat steps 1-4. Rotational Lock The Airsim Difficult Airway as standard allows for head rotation, this can be locked making head rotation impossible. To do this, follow the steps below; Rotate the head forward slightly or lift the head slightly. - Page 9 The larynx insert is designed to be replaced for each student to provide a unique training experience. This is a very quick and easy process, perfect for a busy teaching environment. 1. Please ensure the manikin head is placed in a neutral position 2.
-
Page 10: Care And Maintenance
Care and maintenance Store in clean, dry conditions away from heat and direct sunlight; avoid contact with metals, solvents, oils or greases and strong detergents. When the product is not in use please store in the black carrier case provided. Thoroughly wash the AirSim X airway in warm water. -
Page 11: Warranty
If the unit should malfunction it must be returned to the factory for evaluation. Upon examination by TruCorp, if the unit is found to be defective it will be repaired or replaced at no charge.
