Manhattan 461825 Installation Instruction

IMPORTANT SAFETY INSTRUCTIONS
Please read through these instructions completely to be sure you're comfortable with this easy
install process. Also check your TV owner's manual to see if there are any special requirements
for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation,
Assembly or use of this product, contact your Customer Service.
CAUTION: Avoid potential personal injuries and property damage!
● This product is designed for use in wood stud, solid concrete, and concrete block walls
- DO NOT install into drywall alone!!
● Make sure that mounting screws are anchored into the center of the stud. Use a stud
finder to locate the edge of the wood stud, then draw stud center line in the middle
point of the edges.
● The wall must be capable of supporting five times the weight of the TV and mount combined.
● Do not use this product for any purpose not explicitly specified by manufacturer.
● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
● The temperature at the front of the fireplace mantle must never exceed 45℃（113℉）

TOOLS NEEDED FOR ASSEMBLY

Wrench Pencil Level
Installation Instruction

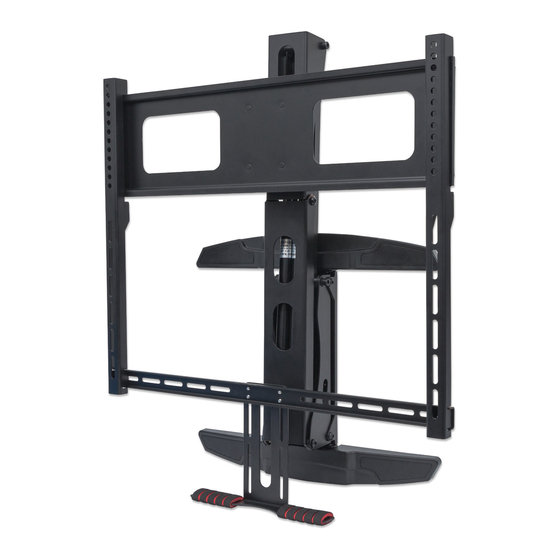

Above Fireplace Pull Down TV Mount
INTRODUCTION：
Mount your television conveniently
above your fireplace using this Above
Fireplace Mount.
The mount allows you to keep
the TV safely up and out of the way
when not in use, then you can pull
it down to eye level for comfortable
viewing
Screw Electric Socket
driver Drill Wrench
Model
Display size
Minimum display weight
Maximum display weight
Minimum VESA size
Maximum VESA size
Swivel range
Tilt range
Rotation range
(7/32 in.)
Stud Wood
Finder Drill Bit
1
461825/461276
40"-70"
16.5 lbs
78 lbs
200 x 200 mm
600 x 400 mm
+/- 45°
+5°/-15°
+/- 6°
5.5 mm
10 mm
(3/8 in.)
Masonry
Drill Bit
Hammer
