Summary of Contents for Polar Electro Connect

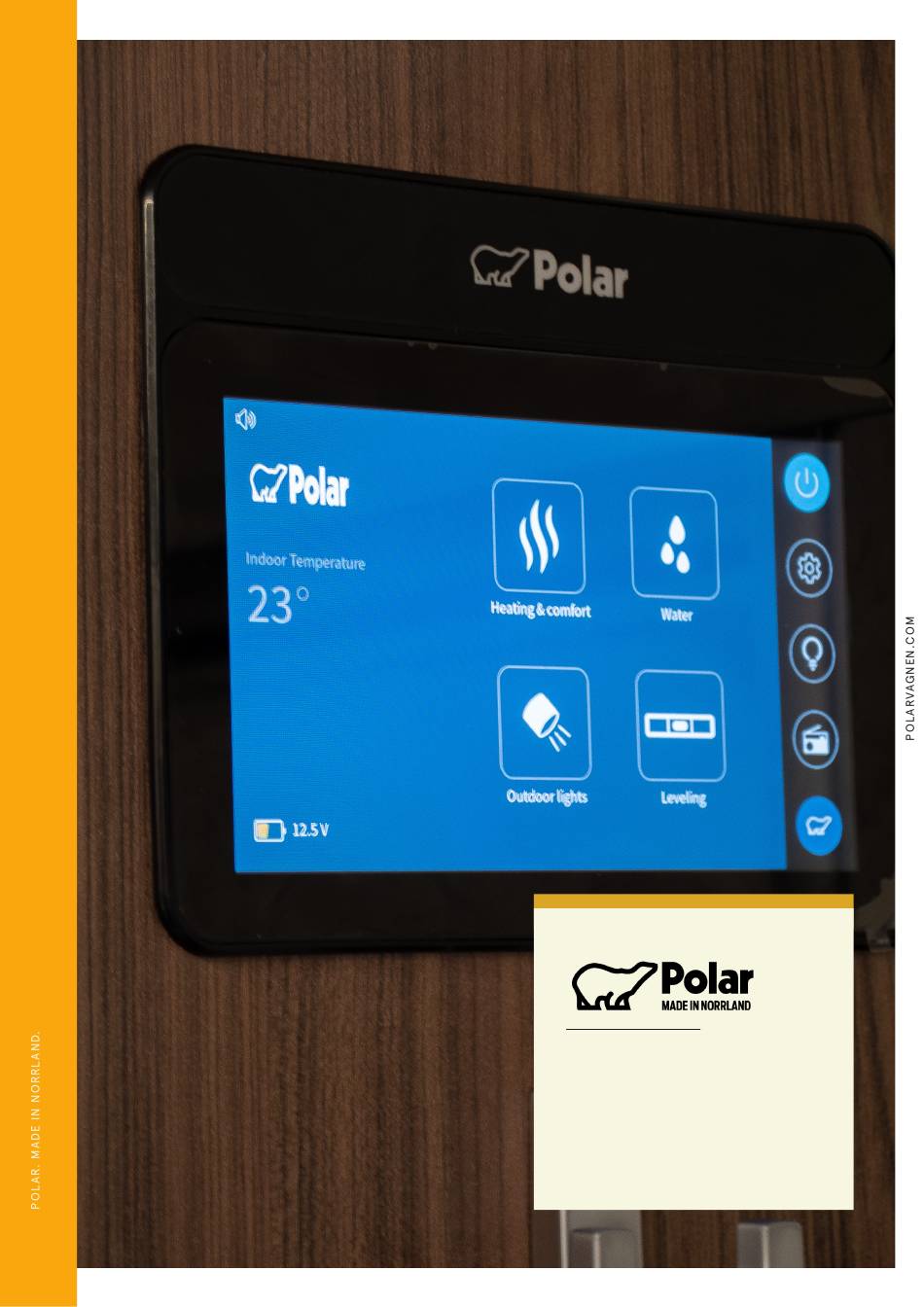

- Page 1 MADE NORR L AND INSTRUCTIONS FOR POLAR PANEL 2022...
- Page 2 2019 - 2022 Polar Connect. This instruction applies to Polar connect 2020-2022 and is included in each caravan. Start by downloading the Polar Connect app from the Appstore or Google Play Store. Open the app to start the installation. Click on ”get started with polar connect”.
- Page 3 Check the tab ¨I accept the terms of use¨ and then click on ”continue”. Fill in your email address and then click ¨Create an account¨...
- Page 4 You will now receive an email to your e-mail. Click on email and Verify address and select subscription. Select subscription and then continue. Enter First and Last Name, then press approve.
- Page 5 EXTERNAL START OF ALDEPANNAN Raise and lower the temperature Start the alde panel and press MENU. Choose the desired temperatur and effect and the gas off. Press the gear at the bottom right corner. Scroll down until a box named EXT shows. Click on EXT.
- Page 6 Open Polar connect and make sure that heaster is on and then set the desired temperature down below. Note! It’s not possible to change the temperature over the value you put in the aldepanel.
- Page 7 GET STARTED WITH THE POLAR PANEL Settings Lightning Radio Back to main page Change the language Start by changing the language of the panel under the icon settings -> Select language. There is no save button. Once you have selected your language, click on the Polar Bear symbol at the bottom right of the panel to return to the home page.
- Page 8 Change light settings Click on indoor lighting -> Here are several different ones options to set the lighting in the carriage exactly as you want it. Drag the bars under each heading to adjust the lighting. Save scenario It is possible to save up to 4 different ones scenario.
- Page 9 Climate Click on the climate icon to start the alde pan, refrigerator and underfloor heating. Here you start, among other things, the boiler, the re- frigerator, electronics and the floor heat pump. Water levels Click on the Water icon to bring up the trolley water level bars.
- Page 10 Voltmeter Calibrable voltmeter in the panel. To calibrate the voltmeter, you must first measure the voltage across the battery terminals. Click Settings -> System. Here you calibrate the voltage difference between it value you got from the battery and that is down in the panel.
- Page 11 RADIO Volume Scan Back to main menu Channel search Channel search Turn of radio...
- Page 12 When this screen is displayed, bluetooth is activated in the screen. Follow the instructions in the app to con- nect to the stroller. NOTE! To connect to Bluetooth, you need to be inside the caravan. Turn on bluetooth in your phone and search for new devices.
- Page 13 After successful connection, it indicates that The ”ESP_SPEAKER” is connected. The polar panel indicates that the device is connected and ready to use. ESP_SPEAKER Then open any streaming service to play audio through the caravans speaker system.
- Page 14 DAB radio To switch between ”FM” and ”DAB”, click on the symbol in the middle at the top of the screen. The radio will then scan for channels and show which ones are available.
- Page 15 Polar Connect app. Position alarm - if the caravan is moved from its current location, you will receive a message via the Polar Connect app. Click Motion Alarm to activate the motion detector in the ceiling.
- Page 16 Polar connect app - Applies from model year 2020 Under the Menu button on the home screen, you can click Messages. Here you can see old and new notices from the alarm. Version history To find version history about the panel and the app, go to...
