Making British gardens great

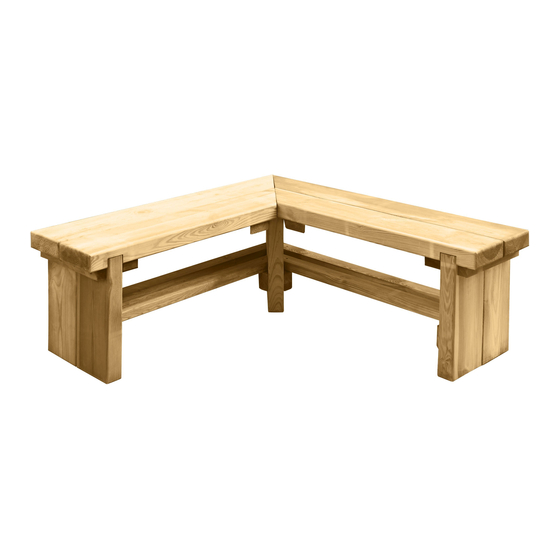

CORNER SLEEPER BENCH
INSTRUCTIONS (1200x1200mm)
We recommend using the following tools (not supplied):
Tape Measure
Pozidrive
Screwdriver
PLEASE KEEP PLASTIC BAGS AND SMALL PARTS AWAY FROM CHILDREN
1
END LEG
CORNER LEG
Position the legs as shown above. Ensure there is a
End Leg at each side, with the battens attached facing
inwards. Place the Corner Leg in the middle. Ensure the
battens attached to the legs are positioned lowest to
the ground as shown above.
IMPORTANT
Assembly requires 2+
adults.
Missing something or need more information?
Call our aftersales team on
0333 321 3142
Forest Garden, Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB
Drill & 2mm
Rubber Mallet
Drill Bit
END LEG
FIXING PACK CODE: CORNBEN12FP
2
FRONT BENCH SUPPORT (828mm)
Position and secure the Front Bench Supports
(828mm) and Back Bench Supports (945mm) to the
End Legs and Corner Leg Battens.
REMINDER
Always pre-drill before
screwing.
Visit our website for spare instructions and
more information
www.forestgarden.co.uk
ISSUE: 0121
FIXING PACK CONTAINS:
4 x 60mm Screws
QTY: 24
6 x 100mm Screws
QTY: 8
60
SCREWS
BACK BENCH SUPPORT (945mm)
MM
Advertisement
Table of Contents
Related Manuals for Forest CORNER SLEEPER BENCH
Summary of Contents for Forest CORNER SLEEPER BENCH
- Page 1 Always pre-drill before adults. screwing. Missing something or need more information? Visit our website for spare instructions and Call our aftersales team on more information 0333 321 3142 www.forestgarden.co.uk Forest Garden, Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB...
- Page 2 SEAT LH SCREWS SCREWS SEAT RH SCREWS SCREWS Place the Seats on top of the legs. Ensure the End Ensure the End Legs are flush to the Seats. Fix the End Legs into place using 4 x 60mm screws on the outside Legs slit into the notches provided.
- Page 3 CHECK YOU HAVE ALL YOUR PARTS. (The parts do not have codes on them. They are listed below should you need to order one.) The components provided may be heavy. Please lift with caution and with a minimum of 2 people. Corner Double Sleeper Bench 1200x1200mm (CORNBEN12) Label Description...
