Summary of Contents for Wow Madison 633/3221

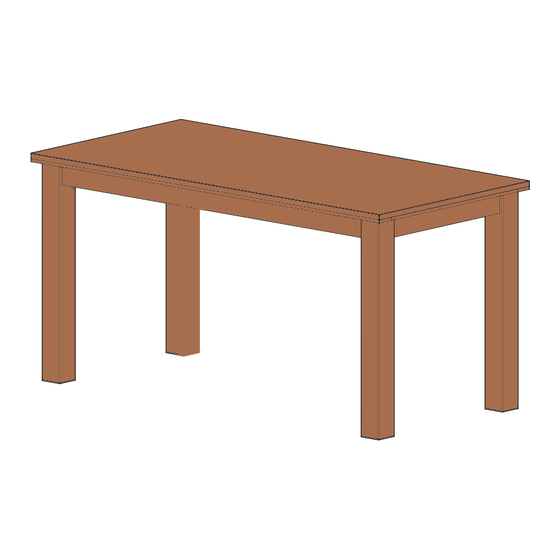

- Page 3 Wow Madison Table Assembly Instructions - 633/3221 Please keep for future reference Assembly Instructions - 633/3386 Please keep for future reference Dimensions Length - 150cm Width - 73cm Height - 75cm Important – Please read these instructions fully before starting assembly ...
- Page 4 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on • We do not components and tools listed on the product during assembly, recommend the pages 2 and 3.
- Page 5 Components - Panels If you have damaged or missing components, call the Customer Helpline: 0845 640 0800 Please check you have all the panels listed below Leg x 4 (7.8 x 72.2cm) underside (150 x 73cm)
- Page 6 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. 70mm Bolt x 8 Assembly bolt x 4 Washer x 8 13mm Spanner x 1 13mm Nut x 8...
- Page 7 Assembly Instructions Step 1 Fitting bolts Insert assembly bolt into leg . Screw bolts into assembly bolt Repeat with remaining legs Step 2 Attaching legs Attach the four pieces of legs to top using washer , spring washer and nut Tighten the bolts with spanner With help, turn the...
