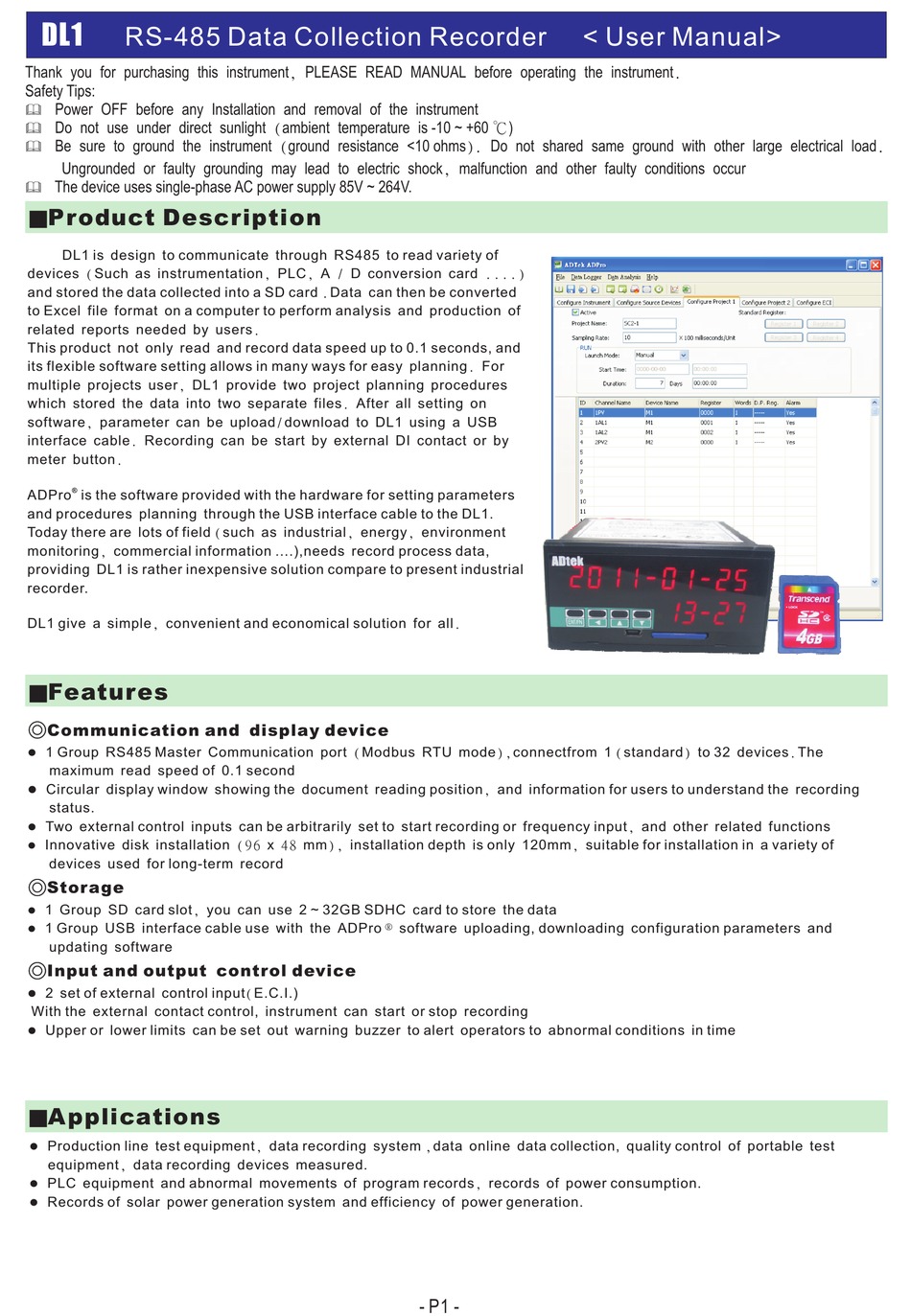

ADTEK DL1 User Manual

DL1
RS-485 Data Collection Recorder
Thank you for purchasing this instrument, PLEASE READ MANUAL before operating the instrument.
Safety Tips:
Power OFF before any Installation and removal of the instrument
&
Do not use under direct sunlight (ambient temperature is -10 ~ +60 ℃)
&
Be sure to ground the instrument (ground resistance <10 ohms). Do not shared same ground with other large electrical load.
&
Ungrounded or faulty grounding may lead to electric shock, malfunction and other faulty conditions occur
The device uses single-phase AC power supply 85V ~ 264V.
&
■ 產品 說 明

Product Description

■
DL1 is design to communicate through RS485 to read variety of
devices ( Such as instrumentation, PLC, A / D conversion card . . . . )
and stored the data collected into a SD card . Data can then be converted
to Excel file format on a computer to perform analysis and production of
related reports needed by users.
This product not only read and record data speed up to 0.1 seconds, and
its flexible software setting allows in many ways for easy planning. For
multiple projects user, DL1 provide two project planning procedures
which stored the data into two separate files. After all setting on
software, parameter can be upload/download to DL1 using a USB
interface cable. Recording can be start by external DI contact or by
meter button.
®
ADPro is the software provided with the hardware for setting parameters
and procedures planning through the USB interface cable to the DL1.
Today there are lots of field ( such as industrial, energy, environment
monitoring, commercial information ....),needs record process data,
providing DL1 is rather inexpensive solution compare to present industrial
recorder.
DL1 give a simple, convenient and economical solution for all.
■ 特點

Features

■
◎
Communication and display device
1 Group RS485 Master Communication port (Modbus RTU mode) , connectfrom 1 ( standard) to 32 devices.The
l
maximum read speed of 0.1 second
Circular display window showing the document reading position, and information for users to understand the recording
l
status.
Two external control inputs can be arbitrarily set to start recording or frequency input, and other related functions
l
Innovative disk installation ( 9 6 x 48 mm), installation depth is only 120mm, suitable for installation in a variety of
l
devices used for long-term record
◎
Storage
1 Group SD card slot, you can use 2 ~ 32GB SDHC card to store the data
l
1 Group USB interface cable use with the ADPro ® software uploading, downloading configuration parameters and
l
updating software
◎
Input and output control device
2 set of external control input(E.C.I.)
l
With the external contact control, instrument can start or stop recording
Upper or lower limits can be set out warning buzzer to alert operators to abnormal conditions in time
l
■

Applications

Production line test equipment, data recording system ,data online data collection, quality control of portable test
l
equipment, data recording devices measured.
PLC equipment and abnormal movements of program records, records of power consumption.
l
Records of solar power generation system and efficiency of power generation.
l
< User Manual>
- P1 -
