I N S T R U C T I O N M A N U A L
M A N U E L D ' I N S T R U C T I O N S
M A N U A L D E I N S T R U C C I O N E S

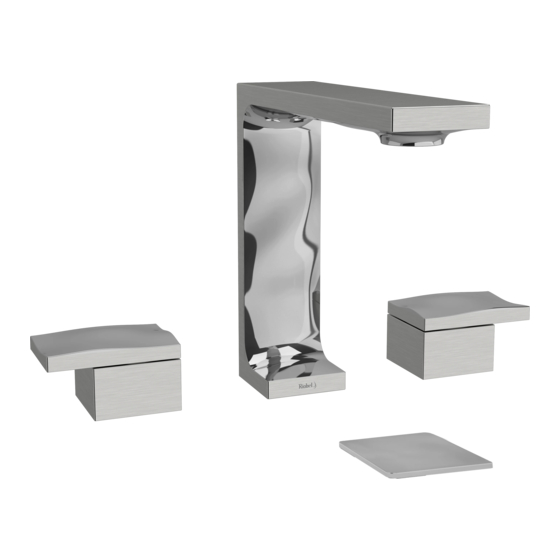

Widespread Lavatory Faucet
Robinet de lavabo 8"
Llave de Lavabo con dos Asas
HELPFUL TOOLS
For safety and ease of installation, the use of
these helpful tools is recommended.
OUTILS UTILES
Pour des raisons de sécurité et de facilité
d'installation, l'utilisation de ces outils utiles
est recommandée.
HERRAMIENTAS ÚTILES
Por seguridad y facilidad de instalación, se
recomienda el uso de estas útiles
herramientas.
Adjustable Wrench
Hex Wrench
Safety Glasses
Clé ajustable
Clé Hexagonale
Lunettes de sécurité
Llave ajustable
Llave Hexagonal
Gafas de seguridad
A D I S T I N C T I V E M E M B E R O F T H E H O U S E O F R O H L
U N M E M B R E D I S T I N C T I F D E H O U S E O F R O H L
INS-RF08-REV00
M I E M B R O D I S T I N T I V O D E L A F A M I L I A H O U S E O F R O H L
Advertisement
Related Manuals for Riobel RF08
Summary of Contents for Riobel RF08
- Page 1 U N M E M B R E D I S T I N C T I F D E H O U S E O F R O H L INS-RF08-REV00 M I E M B R O D I S T I N T I V O D E L A F A M I L I A H O U S E O F R O H L...
- Page 2 Parts List Handle Kit (x2) Widespread Hose Tee Handle Hub Kit (x2) Widespread Hose Cartridge - Hot Aerator Valve Spindle Body - Hot Cartridge - Cold Spout Valve Spindle Body- Cold Spout Gasket Spout Attach Kit Liste des pièces Poignée (x2) Kit d’attache de poignée Boyau de robinet Cartouche (eau chaude)
- Page 3 Top View Vue De Dessus Vista Superior Align Aligner Alinear 1. Install Spout (E) & Gasket (F) into sink hole. Install Spout Attach Kit (G) & Widespread Hose Tee (H) to secure to sink. Push Tee (H) upwards as far as it will go until fully engaged with Spout (E). 1.
- Page 4 1. Install top parts of Handle Hub Kits (B) to Valve Spindle Bodies (D) & (L) as 1. Install Handles (A) onto threaded rings of Handle Hub Kits (B). illustrated. 1. Installer les poignées (A) sur les anneaux filetés du kit d’attache de poignée (B). 1.
- Page 5 Hand Tighten Serrer à La Main Apretar a Mano 1. Thread Hose (I) ends into opening of valve bodies (D) & (L). Hand tighten. 1. Tighten Nuts (x2) (G) on valve bodies with adjustable wrench. 1. Visser les extrémités du boyau (I) dans l’ouverture des pivots (D) et (L). 1.
- Page 6 INS-RF08-REV00 GUI-RF08 REV00 - Rev. 9/20 M I E M B R O D I S T I N T I V O D E L A F A M I L I A H O U S E O F R O H L...
