Summary of Contents for Space Television cahors D120-O-SMC-V

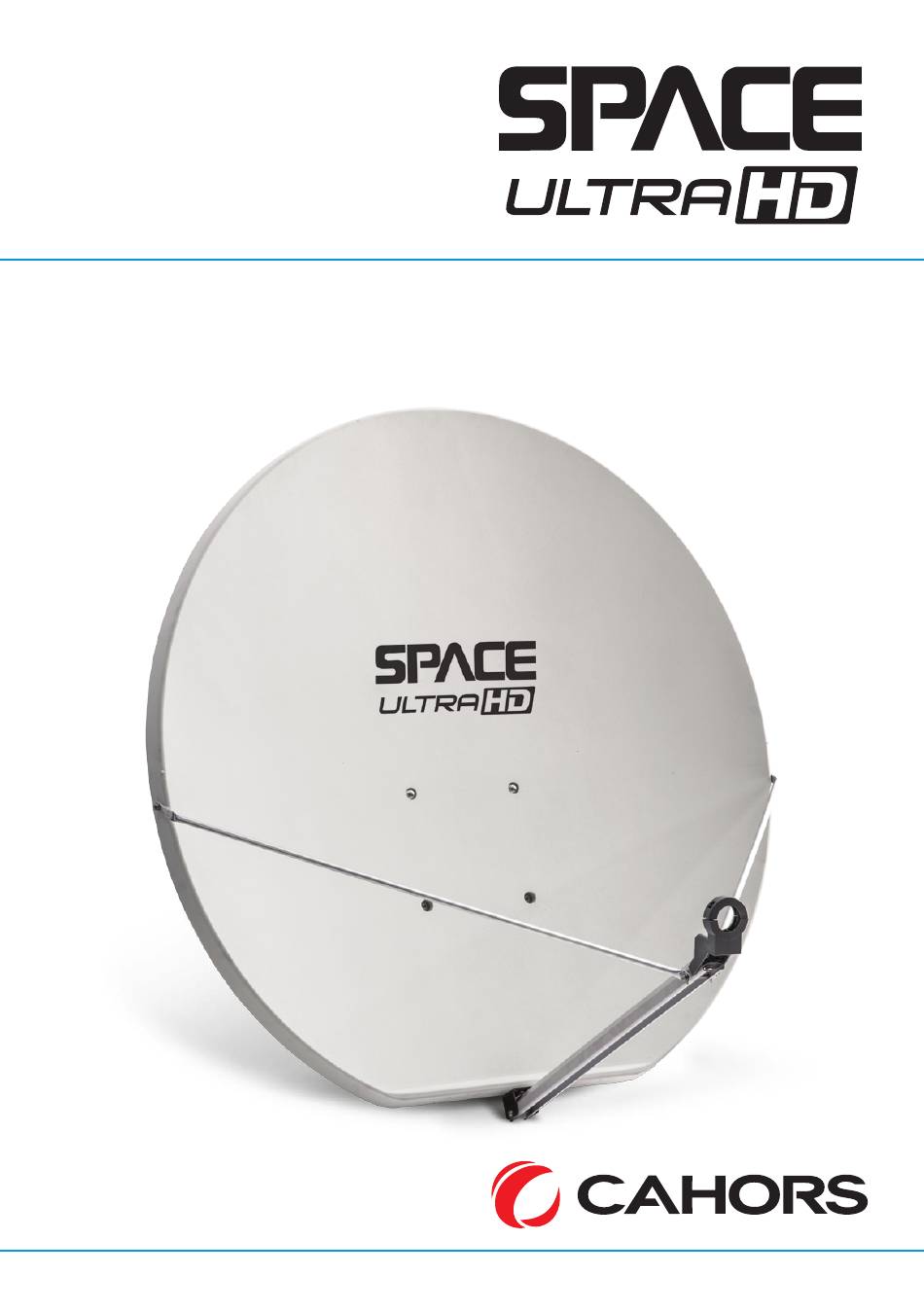

- Page 1 120cm SMC Fibre Satellite DiSh D120-O-SMC-V User Manual www.spacetv.co.za Helpline: 0861 40 41 42 •...
-
Page 2: Table Of Contents
Space Television reserves the right to change the specifications of the hardware and software described in these manuals at any time. Space Television cannot be held liable for any damages resulting from the use of this product. Specifications are subject to change without notice. -
Page 3: Safety
D120-O-SMC-V Cahors 120cm Satellite Dish User Manual Safety: • Safety and installation rules are given in standards regarding cabled distribution systems for television and interactive multimedia signals eN 50083-1. the installer must follow these rules to be in conformity with the law. always implement regulations as issued by national and local authorities. PrecaUtiONS: •... -
Page 4: Satellite Dish Parts
D120-O-SMC-V Cahors 120cm Satellite Dish User Manual Satellite DiSh PartS liSt: 1. Main dish 6. Side feed legs (x2) 2. Az – El mount (in separate box) 7. Screws and nuts for Main Dish / arm/ 3. Support arm Side feed legs / 4. -
Page 5: Mounting Pole Dimensions
D120-O-SMC-V Cahors 120cm Satellite Dish User Manual MOUNtiNG POle DiMeNSiONS: Mechanical forces to be considered are shown in the picture below: Minimum pole diameter must be 76 mm. in order to receive signals through geostationary satellites, you need a clear view in the direction in which the satellite is pointed, i.e.: clear to the north (in Southern hemisphere). -
Page 6: Step By Step Assembly
D120-O-SMC-V Cahors 120cm Satellite Dish User Manual SteP by SteP aSSeMbly: For sake of ease, the Az – El mount is pre-assembled at the factory. Important! It is recommended that 2 people install this satellite dish az - el MOUNt aND DiSh aSSeMbly: Nut hM8 Washer L8 1. - Page 7 D120-O-SMC-V Cahors 120cm Satellite Dish User Manual 4. install the side legs as shown in fig 4a, do not initially tighten the bolts. Move the arm up towards the dish and hold it in its final position using the 2 side feed legs as shown in Fig.
-
Page 8: Satellite Dish Alignment
D120-O-SMC-V Cahors 120cm Satellite Dish User Manual Satellite DiSh aliGNMeNt PrOceDUre: • The charts for elevation, azimuth and feed polarisation shown on the next pages (P 16 ~18) allow you to align the satellite dish regardless your geographical position with respect to earth station latitude and Delta l, the difference between earth station longitude and satellite longitude. - Page 9 D120-O-SMC-V Cahors 120cm Satellite Dish User Manual HELPLINE 0861 40 41 42 • www.spacetv.co.za...
-
Page 10: Pointing Data According To Geographical Situation
D120-O-SMC-V Cahors 120cm Satellite Dish User Manual POiNtiNG Data accOrDiNG tO GeOGraPhical SitUatiON: CAUTION! EAST longitude: + sign WEST longitude: - sign DELTA WARNING! • DELTA is the relative difference between the • Satellite West of satellite dish site: satellite dish site longitude and the satellite + sign Clockwise (CW) longitude, in absolute terms. -
Page 11: Elevation Chart
D120-O-SMC-V Cahors 120cm Satellite Dish User Manual elevatiON chart: POlariSatiON chart: HELPLINE 0861 40 41 42 • www.spacetv.co.za... -
Page 12: Azimuth Chart
D120-O-SMC-V Cahors 120cm Satellite Dish User Manual aziMUth chart: SATELLITE WEST OF SATELLITE DISH SITE, SOUTHERN HEMISPHERE aziMUth chart: Satellite eaSt Of Satellite DiSh Site, SOUtherN heMiSPhere HELPLINE 0861 40 41 42 • www.spacetv.co.za... -
Page 13: Specifications
D120-O-SMC-V Cahors 120cm Satellite Dish User Manual SPecificatiONS horizontal axis 123 cm vertical axis 127 cm Disc material Polyester reinforced with glass fiber arm material aluminum Back piece material SMc / Galvanized steel Frequency Range 10.7 - 12.75 Ghz Opening angle at 11.325 Ghz 1.4°... - Page 14 Helpline: 0861 40 41 42 www.spacetv.co.za...
