IOTA APIS FUZZ Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
APIS FUZZ
Inspired by the TMR Bumble Buzz.
All trademarks and registered trademarks are the property of their respective owners. The company and product names used
in this document are for identification purposes only. Use of these names and brands does not imply endorsement.
— APIS FUZZ (2021-06-30)

Advertisement

loading
Need help?

Need help?

Do you have a question about the APIS FUZZ and is the answer not in the manual?

Questions and answers

Summary of Contents for IOTA APIS FUZZ

  • Page 1 Inspired by the TMR Bumble Buzz. All trademarks and registered trademarks are the property of their respective owners. The company and product names used in this document are for identification purposes only. Use of these names and brands does not imply endorsement. — APIS FUZZ (2021-06-30)

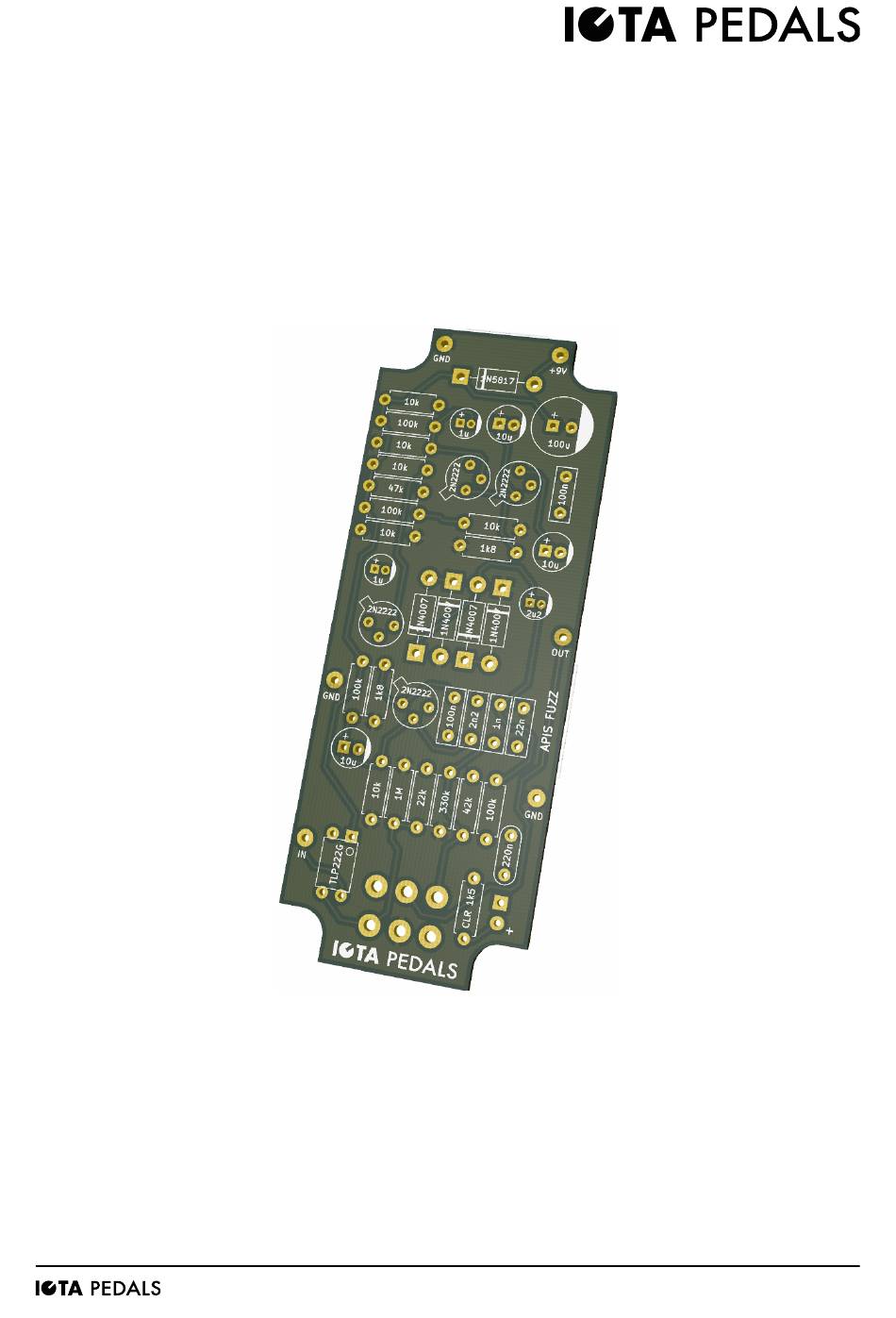

  • Page 2 SUMMARY The APIS FUZZ is inspired by the TMR Bumble Buzz, a knob-less octave-up fuzz using a phase splitter followed by a differential pair to emphasise the upper octave. It features an optical true bypass, allowing for a smaller DPDT footswitch with a click more subtle than with a common 3PDT footswitch.

  • Page 3: Parts List

    1x Alpha DPDT footswitch, latching 2x Lumberg 1/4” jack, mono MLCC 1x Lumberg DC jack, 2.1 mm 1x 220n 1x 3mm LED bezel ELECTROLYTIC 2x 1u OTHER 1x 2u2 3x 10u APIS FUZZ PCB 1x 100u Wires — APIS FUZZ (2021-06-30)

  • Page 4: Build Steps

    Make sure the TLP222G photofet is properly oriented. The point on the photofet must be aligned with the point of its footprint on the PCB. Push the 2N2222 metal can transistors down firmly, but gently. They must not touch the PCB and should not be taller than the film capacitors. — APIS FUZZ (2021-06-30)
  • Page 5 Measure four wires of at least 3.5 cm length and strip off about five millimetres of insulation at each end. The wires should be as short as possible, yet long enough to leave some slack to make it easy to put the PCB into the enclosure. — APIS FUZZ (2021-06-30)
  • Page 6 Check the PCB for the orientation of the +9V and GND pads. Tighten the nut of the DC jack and solder the two wires to the PCB. The longer lug of the DC jack must connect to the +9V pad. — APIS FUZZ (2021-06-30)
  • Page 7 Make sure the PCB sits low enough so that no component is higher than the edge of the enclosure. It’s supposed to be a tight fit but there’s a 1-2 mm tolerance. CONGRATULATIONS! Give your new pedal a test drive. If everything works as expected, screw on the lid and you’re done. — APIS FUZZ (2021-06-30)
  • Page 8 — APIS FUZZ (2021-06-30)
  • Page 9 Removing the LED from the build entirely requires soldering a solid wire in its place. The value of R should be changed to at most 2.4 kΩ — to account for power supplies down to 8.5 V and keep I at about 3 mA. — APIS FUZZ (2021-06-30)
  • Page 10 This kit is intended to be built by the customer. IOTA PEDALS is not responsible for language that may be used by the customer in the marketing or resale of the finished product.
