Bass Pro Shops Extreme Tourney XTT10A Owner's Manual

XTT10A, XTT20A, XTT30A, XTT40A
Congratulations on your purchase of an Extreme Tourney spinning reel! This reel is
®
manufactured with the highest-quality components and has been extensively tested
to ensure that your day on the water is more productive. The Extreme Tourney was
designed with a lightweight graphite frame and double-anodized-aluminum spool to
resist corrosion. The 10-bearing system, including our Powerlock™ instant
anti-reverse, keeps the drive train moving smoothly.
Reel Specifications
Gear Weight Max Line Capacity
Model Bearings Ratio IPT (oz.) Drag (lbs.) mono (lb./yds.)
XTT10A 10 (9+1) 5.1:1 22" 6.9 11 4/235, 6/175, 8/120
XTT20A 10 (9+1) 5.1:1 24" 7 11 6/210, 8/160, 10/115
XTT30A 10 (9+1) 5.1:1 28" 9.5 13 8/205, 10/170, 12/130
XTT40A 10 (9+1) 5.1:1 30" 10 13 10/235, 12/195, 14/160
• 10-Bearing System (9+1)
• Powerlock™ Instant Anti-Reverse
• Double-anodized spool
• 5.1:1 Gear Ratio

Features and Operations Instructions

Lightweight Graphite Frame

The frame was designed to be lightweight, durable, and corrosion-resistant.

Anodized-Aluminum Spool

The spool has been double-anodized to provide years of corrosion resistance.

Drag Setting

Your reel is equipped with a drag system to help you ght sh without the risk of
breaking your line. To properly set the drag, you will need a spring scale. Your drag
should be set at 25% of the test rating of your line. Tie a loop in the end of your
main line. Run it through the guides of your rod and attach it to the hook on the
scale. Pull the scale until it registers 25% of the line rating. If you are using 6 lb. test,
then you should set your drag to start slipping at 1.5 lbs.
Powerlock™ Instant Anti-Reverse
This model is equipped with a Powerlock instant anti-reverse system. This is a
special type of bearing that allows the handle to only turn forward. There is no play
in the handle, so you have complete control during the retrieve and no "loose"
feeling, which is important during stop-and-go retrieves.
basspro.com

Reel Care And Lubrication

Your new reel is designed to provide years of dependable service. But like any
other precision machine, periodic cleaning and maintenance is required for
continued peak performance.
Reels made today require both a lightweight oil and grease. Oil and grease should
be used sparingly; too much can have a negative impact on reel performance.
There are lightweight oils and grease made speci cally for shing reels that can be
found at basspro.com
As a rule of thumb, oils should be used to lubricate any moving part on the reel,
e.g. ball bearings, bushings, handle joints, bail springs, etc. Grease should be used
to lubricate the main drive gear and pinion gear.
We do not recommend using any multipurpose oils. Many of these oils have
properties that will attract dirt and dust to the internal parts. This may cause
excessive wear and reduce the life of the reel.
After each trip, the reel should be checked for dirt or sand. If it has been exposed
to saltwater, the spool should be removed and the entire reel rinsed in freshwater.
Dry with a soft cloth and lubricate the reel as described above.
For professional cleaning and maintenance, send your reels postage prepaid to:
Outdoor World Rod & Reel Repair
2300 E. Turner, Suite M
Spring eld, MO 65803
Phone: (417) 873-5274 Fax: (417) 873-5280
Bass Pro Shops Fishing Reels:
®

Limited Warranty

Bass Pro Shops will repair or replace (at our discretion) any Extreme ® Tourney
shing reel which proves to be defective in workmanship or materials within one
year from the original date of purchase. You must save your dated sales receipt for
warranty validation. This warranty gives you speci c legal rights, and you may have
other rights which vary from state to state or province to province.
For reels purchased through our catalogs or Bass Pro Shops online:
• For reel replacement only: Return your reel postage prepaid with your dated
sales receipt to the Return Center address listed on your receipt.
• For reel repair only: Return your reel postage prepaid with a copy of your dated
sales receipt as proof of purchase and warranty validation to the Outdoor World
Rod & Reel Repair address below.
®
For reels purchased through Bass Pro Shops retail locations:
• For reel replacement only: Return your reel (postage prepaid if sending
by mail) along with your dated sales receipt to the store from which it was
purchased.
• For reel repair only: Return your reel postage prepaid with a copy of your dated
sales receipt as proof of purchase and warranty validation to the Outdoor World
Rod & Reel Repair address below.
Outdoor World Rod & Reel Repair
2300 E. Turner, Suite M
Springfield, MO 65803
This warranty does not cover lost parts, malfunctions, or damage due to abuse,
accidents, or normal wear. Failure to clean, lubricate and provide reasonable and
necessary maintenance will void the warranty. Repairs needed to your reel due to
abnormal use or modi cation, or after warranty expiration, are available for a
reasonable charge from Outdoor World Rod & Reel Repair, providing the reel is
returned postage paid.
Except to the extent prohibited by applicable law, there are no warranties or
conditions, express or implied, other than those expressly set out herein. Bass Pro
Shops shall not, under any circumstances, be liable for an amount greater than the
actual purchase price of the product nor for any special, incidental, or
consequential damages suffered or incurred in connection with the product and
Bass Pro Shops does not assume, and does not authorize any person to assume
for it, any obligation or liability other than those expressly set out herein.
18
17
16
19
13
15
14
12
11

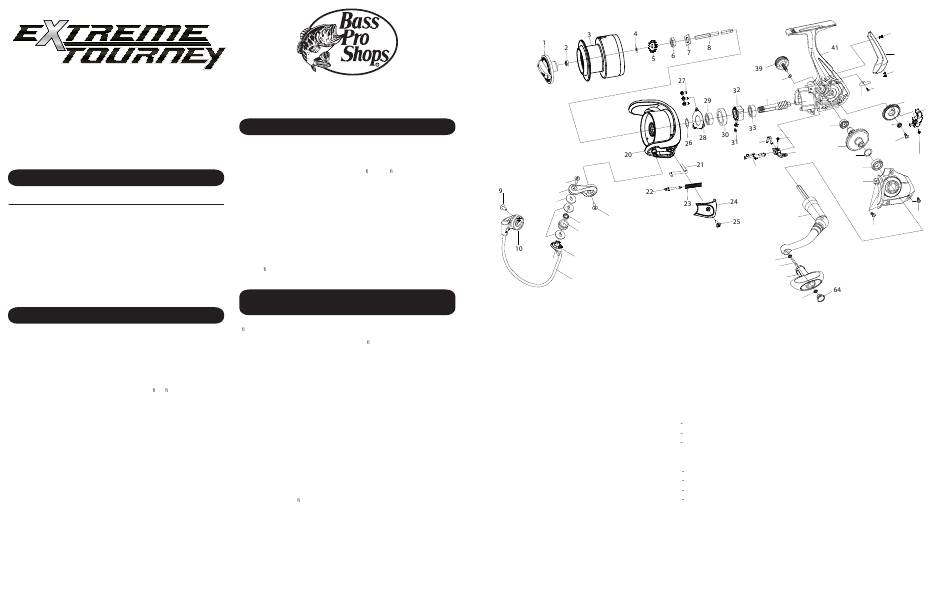

PART
NO. NAME
1 DRAG KNOB ASSEMBY
2 SPOOL BALL BEARING
3 SPOOL ASSEMBLY
4 CLICK GEAR WASHER
5 CLICK GEAR
6 BRASS NUT
7 PINION SQUARE PLATE
8 MAIN SHAFT
9 BAIL HOLDER SCREW
10 BAIL HOLDER
11 BAIL WIRE
12 LINE ROLLER CAP
13 LINE ROLLER WASHER
14 LINE ROLLER
15 LINE ROLLER BALL BEARING
16 LINE ROLLER WASHER
17 BAIL ARM
18 LINE ROLLER SCREW
19 BAIL ARM SCREW
20 ROTOR
21 BAIL TRIP PLUNGER
22 BAIL ARM TRIP SHAFT
BP132493
40
34
52
38
36
37
35
59
60
61
62
63
PART PART
NO. NAME NO. NAME
23 TRIP PLUNGER SPRING 45 REAR COVER
24 ROTOR BAIL ARM COVER 46 REAR COVER SCREW
25 ROTOR BAIL ARM COVER SCREW 47 OSCILLATION GEAR
26 BRASS PINION WASHER 48 OSCILLATION SLIDER
27 BALL BEARING COVER PLATE SCREW 49 OSCILLATION SLIDER SCREW
28 BALL BEARING COVER PLATE 50 OSCILLATION GEAR BALL BEARING
29 PINION BALL BEARING 51 OSCILLATION GEAR SCREW
30 ONE WAY CLUTCH SLEEVE 52 BODY BALL BEARING
31 ONE WAY CLUTCH SPRING 53 DRIVE GEAR
32 ONE WAY CLUTCH 54 BODY COVER WASHER
33 PINION BALL BEARING 55 BODY COVER BALL BEARING
34 BRASS PINION GEAR 56 BODY COVER
35 ANTI REVERSE SHAFT 57 BODY COVER SCREW
36 ANTI REVERSE SPRING 58 BODY COVER SCREW
37 ANTI REVERSE LEVER 59 HANDLE ASSEMBLY
38 ANTI REVERSE LEVER SCREW 60 HANDLE KNOB BALL BEARING
39 HANDLE SCREW CAP 61 HANDLE KNOB PIN
40 HANDLE SCREW CAP WASHER 62 HANDLE KNOB
41 BODY 63 HANDLE KNOB BALL BEARING
42 OSCILLATION SLIDER PLATE 64 HANDLE KNOB COVER
43 OSCILLATION SLIDER PLATE SCREW
44 BODY DECORATE REAR COVER SCREW
44
45
46
43
42 47
48
50
51
53
54
49
55
56
58
57
