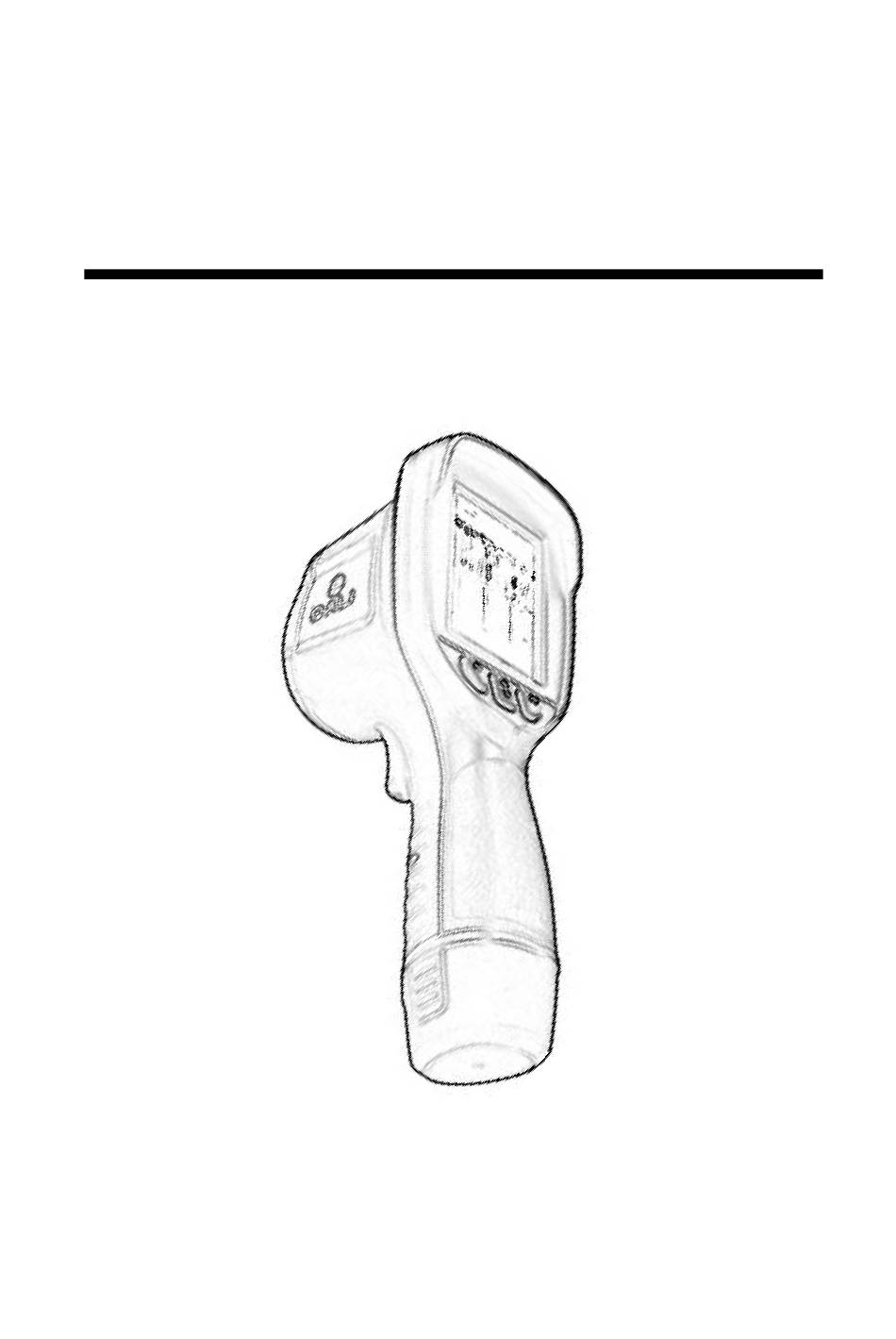

- Page 1 Thermal Image Camera Quick Start Guide ZHEJIANG DALI TECHNOLOGY CO LTD © 2016 DALI TECHNOLOGY...
-
Page 2: Buttons Function
1. Buttons Function [1] Power a) Press and hold 3+ second to turn / off the device. /Menu Enter into the menu mode and select / confirm the settings [2] F1 Select Select Left/Up under the menu mode. Select Right/Down under the menu mode. [3] F2 Select [4] Freeze /Back Press to freeze the screen when imaging. -
Page 3: Operation
2. Operation 2.1 Load battery Push the battery into the battery compartment until hear sound, then the device will be ready to be turned on. Please hold both side of the battery when pulling it out. 2.2 Obtain Thermal Imaging Load the battery then press the ... -
Page 4: Measure Temperature
2.3 Measure Temperature Press Menu Button to change the measure point then aim the cursor to the target, then the target temperature will be shown at the top-left of the screen. The temperature will be shown as “＞ XXX℃”... - Page 5 2.5 Playback Select “File” icon in menu. Press F1、F2 button to select different saved imaging. Press Freeze/Back button to exit Playback and enter imaging mode. 2.6 Export saved imaging Connect device to PC by USB cable to export saved imaging.
-
Page 6: Specification
3. Specification Specification Item Type Uncooled FPA Resolution 120x120 Spectral range 8-14um Detector Frame rate 50 Hz Thermal sensitivity 0.06℃@30℃ 33°x33° Lens 0.5m~∞ Focus range Focus method Focus-free Spatial resolution 5mrad Image Visual light lens 3.2" TFT LCD，240x320 Color palette 4 color Image IR and visual image changed fast, Dual band image enhancement... - Page 7 Operating -15℃~+50℃ temperature Storage temperature -25℃~+60℃ Environme Humidity ≤90% Encapsulation IP54 Anti-shock 25G, IEC68-2-29 Anti-vibration 2G, IEC68-2-6 Drop 1.5meter Safety Electromagnetic specificati Meet to the standards of CE certification compatibility Physical Dimension 240*88*135mm (H*W*D) characteris Weight (with battery) 510g...
