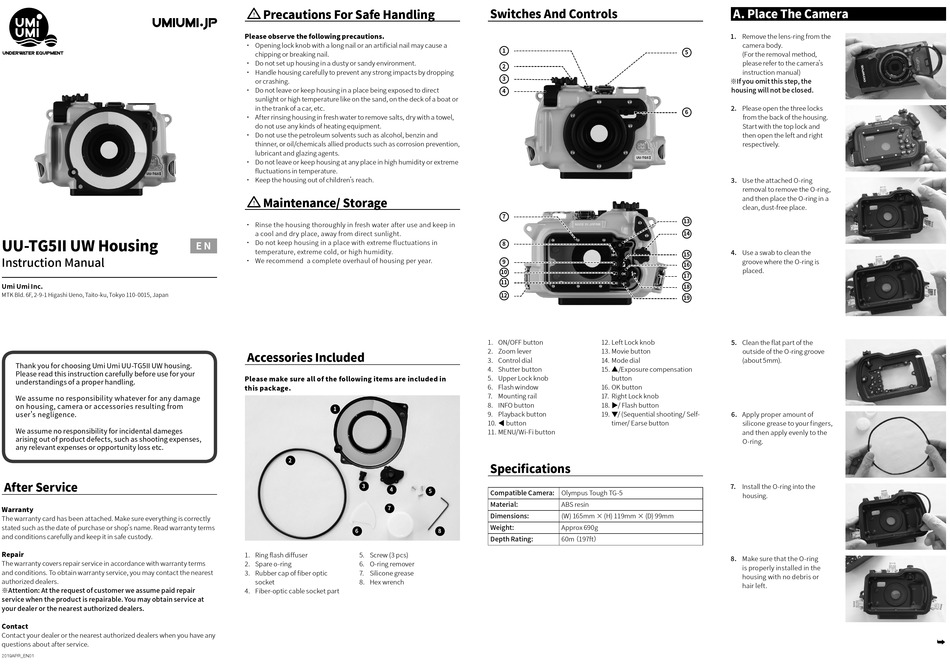

Umi Umi UU-TG5II Instruction Manual

UU-TG5II UW Housing
Instruction Manual
Umi Umi Inc.
MTK Bld. 6F, 2-9-1 Higashi Ueno, Taito-ku, Tokyo 110-0015, Japan
Thank you for choosing Umi Umi UU-TG5II UW housing.
Please read this instruction carefully before use for your
understandings of a proper handling.
We assume no responsibility whatever for any damage
on housing, camera or accessories resulting from
user's negligence.
We assume no responsibility for incidental dameges
arising out of product defects, such as shooting expenses,
any relevant expenses or opportunity loss etc.
After Service
Warranty
The warranty card has been attached. Make sure everything is correctly
stated such as the date of purchase or shop's name. Read warranty terms
and conditions carefully and keep it in safe custody.
Repair
The warranty covers repair service in accordance with warranty terms
and conditions. To obtain warranty service, you may contact the nearest
authorized dealers.
※Attention: At the request of customer we assume paid repair
service when the product is repairable. You may obtain service at
your dealer or the nearest authorized dealers.
Contact
Contact your dealer or the nearest authorized dealers when you have any
questions about after service.
2019APR_EN01
Precautions For Safe Handling
!
Please observe the following precautions.
・ Opening lock knob with a long nail or an artificial nail may cause a
chipping or breaking nail.
・ Do not set up housing in a dusty or sandy environment.
・ Handle housing carefully to prevent any strong impacts by dropping
or crashing.
・ Do not leave or keep housing in a place being exposed to direct
sunlight or high temperature like on the sand, on the deck of a boat or
in the trank of a car, etc.
・ After rinsing housing in fresh water to remove salts, dry with a towel,
do not use any kinds of heating equipment.
・ Do not use the petroleum solvents such as alcohol, benzin and
thinner, or oil/chemicals allied products such as corrosion prevention,
lubricant and glazing agents.
・ Do not leave or keep housing at any place in high humidity or extreme
fluctuations in temperature.
・ Keep the housing out of children's reach.
Maintenance/ Storage
!
・ Rinse the housing thoroughly in fresh water after use and keep in
a cool and dry place, away from direct sunlight.
E N
・ Do not keep housing in a place with extreme fluctuations in
temperature, extreme cold, or high humidity.
・ We recommend a complete overhaul of housing per year.
Accessories Included
Please make sure all of the following items are included in
this package.
1
2
3
6
1. Ring flash diffuser 5. Screw (3 pcs)
2. Spare o-ring 6. O-ring remover
3. Rubber cap of fiber optic 7. Silicone grease
socket 8. Hex wrench
4. Fiber-optic cable socket part
Switches And Controls
1
2
3
4
7
8
9
10
11
12
1. ON/OFF button
2. Zoom lever
3. Control dial
4. Shutter button
5. Upper Lock knob
6. Flash window
7. Mounting rail
8. INFO button
9. Playback button
10. ◀ button
11. MENU/Wi-Fi button
Specifications
4
5 Compatible Camera: Olympus Tough TG-5
Material: ABS resin
7
Dimensions: (W) 165mm × (H) 119mm × (D) 99mm
Weight: Approx 690g
8
Depth Rating: 60m （197ft）
A. Place The Camera
1. Remove the lens-ring from the
camera body.
5 (For the removal method,
please refer to the camera's
instruction manual)
※If you omit this step, the
housing will not be closed.
2. Please open the three locks
6
from the back of the housing.
Start with the top lock and
then open the left and right
respectively.
3. Use the attached O-ring
removal to remove the O-ring,
and then place the O-ring in a
clean, dust-free place.
13
14
4. Use a swab to clean the
15
groove where the O-ring is
16
placed.
17
18
19
12. Left Lock knob 5. Clean the flat part of the
13. Movie button outside of the O-ring groove
14. Mode dial (about 5mm).
15. ▲/Exposure compensation
button
16. OK button
17. Right Lock knob
18. ▶/ Flash button
19. ▼/ (Sequential shooting/ Self-
6. Apply proper amount of
timer/ Earse button
silicone grease to your fingers,
and then apply evenly to the
O-ring.
7. Install the O-ring into the
housing.
8. Make sure that the O-ring
is properly installed in the
housing with no debris or
hair left.
➥
