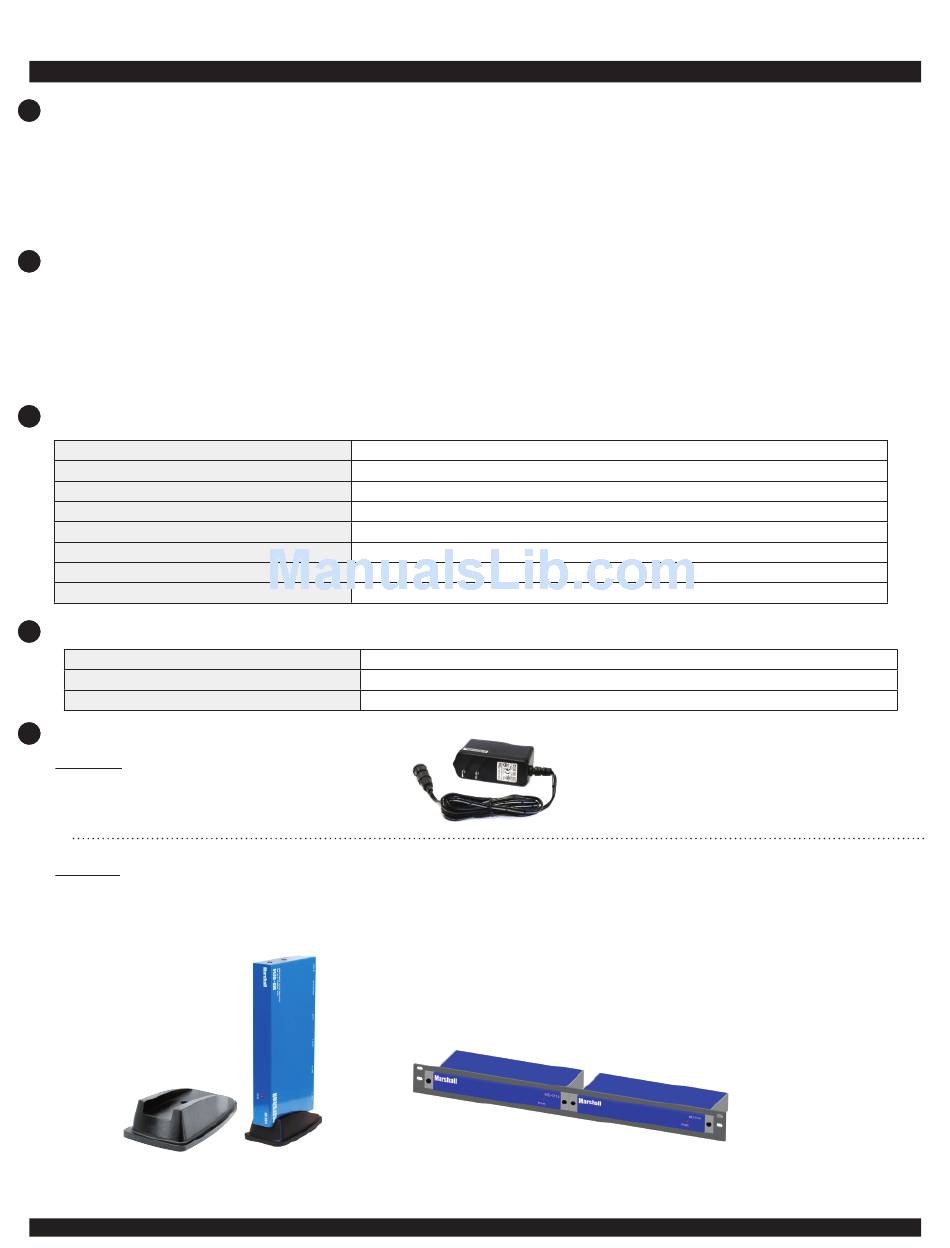

MC-0201-4 Distribution Amplifier Users Guide

Product Overview

1
The MC-0201-4 S-Video to composite conversion module fills a void that has long existed in Professional and Multimedia applica-
tions. Until now, the only way to convert S-Video to composite was by using a very low quality passive device or expensive boxes
that lacked in capability. The MC-0201-4 is the only product of its type available, providing simultaneous conversion of 4 separate
S-Video (Y/C) channels to composite video. The S-Video is processed and amplified for output to another device like a vision mixer
or VCR. Compare the features and price of the MC-0201-4 to similar devices and you will be pleasantly surprised. In most cases
the MC-0201-4 provides 4 channels of conversion compared to other products providing only 1 channel at a similar price point.
2 Features
• Four channels of conversion in each MC-0201-4.
This is a perfect fit for use of S-Video signals with the Marshall Electronics 4 screen monitor set model V-R44P.
• S-Video signal loops out for use with downstream equipment like switcher, vision mixer, or VCR
• Compact design can be installed on the tabletop, wall mounted or placed into a standard 19" EIA rack using the optional V-CRM2 rack kit.
• Full bandwidth conversion of S-Video (Y/C) chrominance and luminance components to composite video.
• Low Power consumption less than 10 watt
• Operates from 6 Volt DC
3 Electrical Specifications
Signal Input
Signal Output
Bandwidth
K factor
Signal to Noise
Differential Gain
Differential Phase
Input Cable length

Mechanical Specifications

4
Dimensions
MC-0201-4 Weight
V-PS6-1.2A Power Supply Weight
Accessories
5
Included:
1. Power Supply (Class 2)
2. Users Guide
3. Wall Mount Brackets
Optional: 1. Desktop Stand (Model V-CB1)
2. 2 Module Rack Mount Kit (Model V-CRM2)
3. S-Video Cable (Model TCS5139-x)(x=length in feet 1,6,12,20,30,50,75,100)
4. BNC Cable (Model 9406M 6ft)
V-CB1 Desktop Stand
1910 East Maple Ave. El Segundo, CA 90245 • Tel.: 800-800-6608 • Fax:310-333-0688 • www.LCDRacks.com • Email: sales@lcdracks.com
Y/C Video 4 pin Mini- din x 4 channels
Composite Video BNC Plus Y/C Video 4 pin Mini- din x 4 channels
>7mhz
<1%
>60 db
<0.4%
0.40
Up to 100ft
7.625"W x 4.125"D x 1.0"H
1.15 lbs (.52kg)
0.20 lbs (0.10kg)
2 Module Rack Mount Kit (Model V-CRM2)
Power Supply (Class 2)
