LTC3212 SOFTWARE CONTROL WINDOW
The LTC3212 software control window consists of
7 LED Enable Mode option buttons, which allow
the user to select which LEDs to turn on or off, or
4

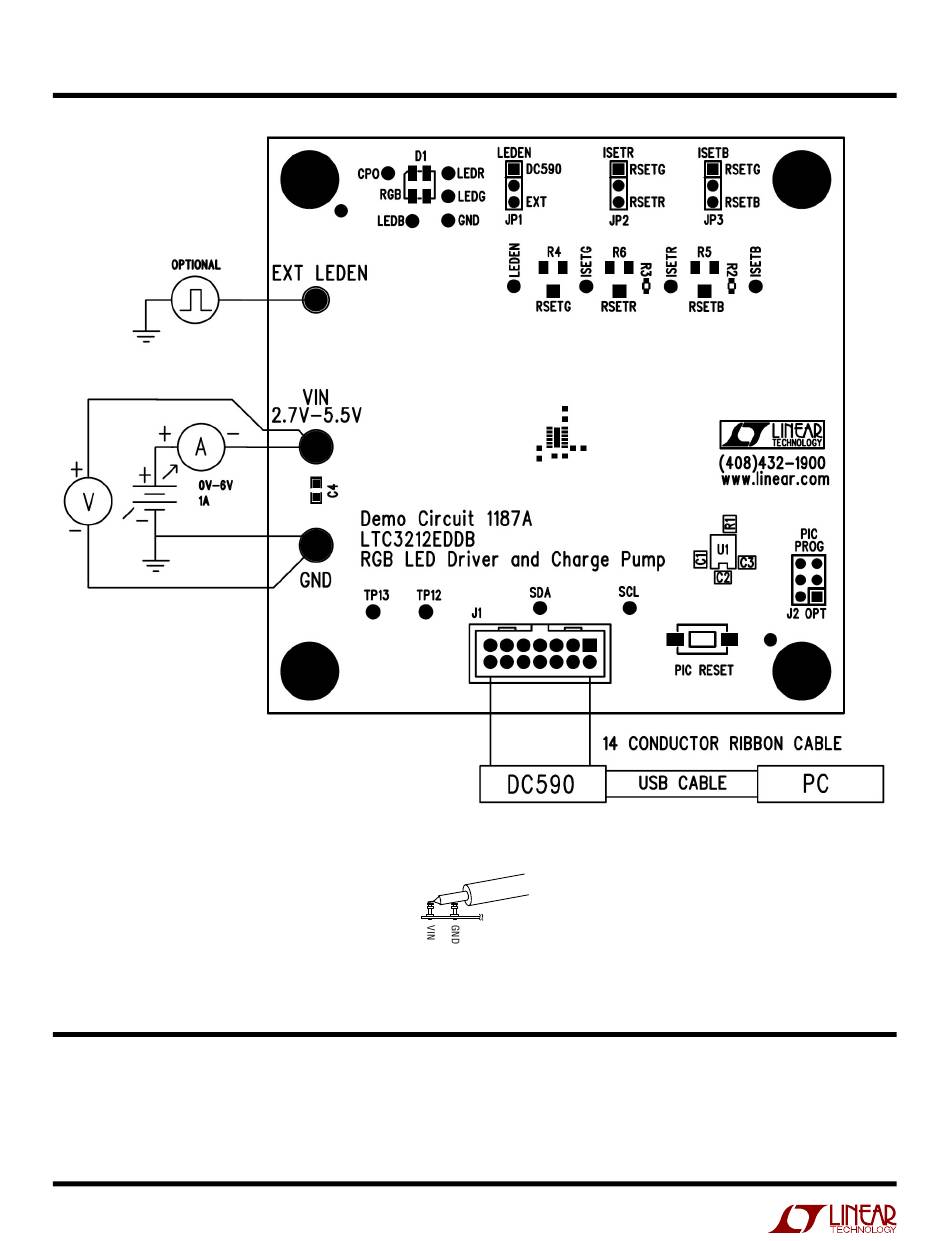

Figure 1. Proper Measurement Equipment Setup
Figure 2. Measuring Input or Output Ripple
select white mode. White mode turns on the three
LEDs at an optimal intensity to display white light.
A Pulse text box displays how many pulses were
