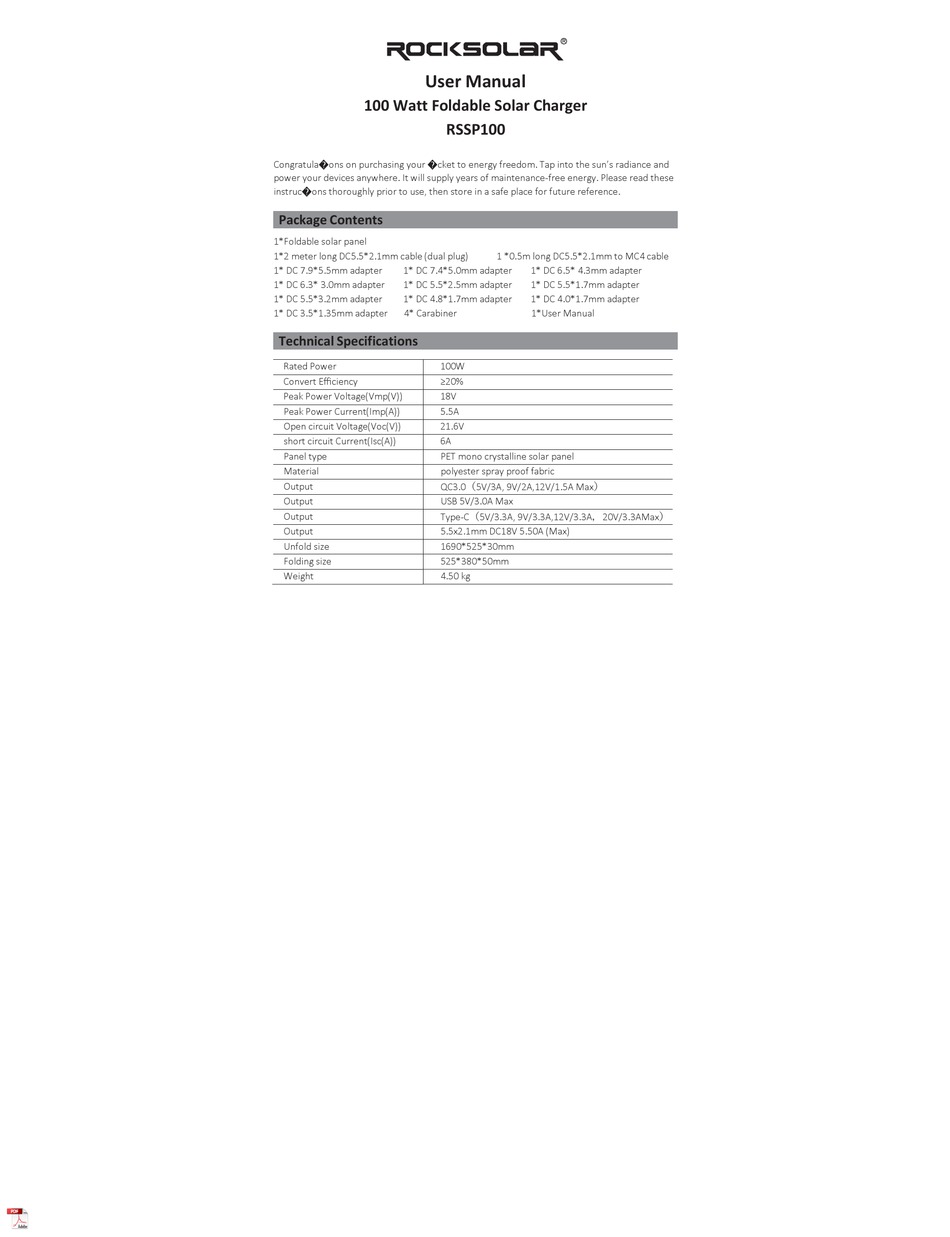

User Manual
100 Watt Foldable Solar Charger
RSSP100
Congratula�ons on purchasing your �cket to energy freedom. Tap into the sun's radiance and
power your devices anywhere. It will supply years of maintenance-free energy. Please read these
instruc�ons thoroughly prior to use, then store in a safe place for future reference.

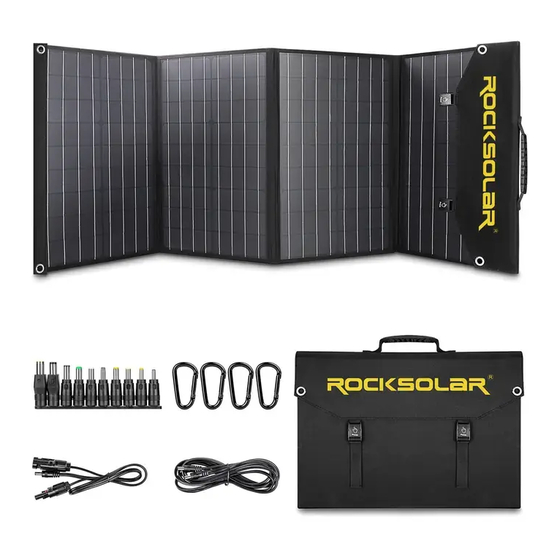

Package Contents
1*Foldable solar panel
1*2 meter long DC5.5*2.1mm cable (dual plug)
1* DC 7.9*5.5mm adapter
1* DC 7.4*5.0mm adapter
1* DC 6.3* 3.0mm adapter
1* DC 5.5*2.5mm adapter
1* DC 5.5*3.2mm adapter
1* DC 4.8*1.7mm adapter
1* DC 3.5*1.35mm adapter
4* Carabiner
Technical Specifications
Rated Power
100W
Convert Efficiency
≥20%
Peak Power Voltage(Vmp(V))
18V
Peak Power Current(Imp(A))
5.5A
Open circuit Voltage(Voc(V))
21.6V
short circuit Current(Isc(A))
6A
Panel type
PET mono crystalline solar panel
Material
polyester spray proof fabric
Output
QC3.0（5V/3A, 9V/2A,12V/1.5A Max）
Output
USB 5V/3.0A Max
Output
Type-C（5V/3.3A, 9V/3.3A,12V/3.3A，20V/3.3AMax）
Output
5.5x2.1mm DC18V 5.50A (Max)
Unfold size
1690*525*30mm
Folding size
525*380*50mm
Weight
4.50 kg
1 *0.5m long DC5.5*2.1mm to MC4 cable
1* DC 6.5* 4.3mm adapter
1* DC 5.5*1.7mm adapter
1* DC 4.0*1.7mm adapter
1*User Manual
Advertisement
Table of Contents
Related Manuals for ROCKSOLAR RSSP100
Summary of Contents for ROCKSOLAR RSSP100
- Page 1 User Manual 100 Watt Foldable Solar Charger RSSP100 Congratula�ons on purchasing your �cket to energy freedom. Tap into the sun’s radiance and power your devices anywhere. It will supply years of maintenance-free energy. Please read these instruc�ons thoroughly prior to use, then store in a safe place for future reference.
- Page 2 How to charge your phone/ USB device: 1. Unfold the charger and place the panels under direct sunlight. 2. Connect your USB device or 12V-22V powered device to the solar charger. 3. Keep your device cool while charging. Place it under the solar panel, in the pocket of the solar panel, or in the shade to avoid overhea�ng.
