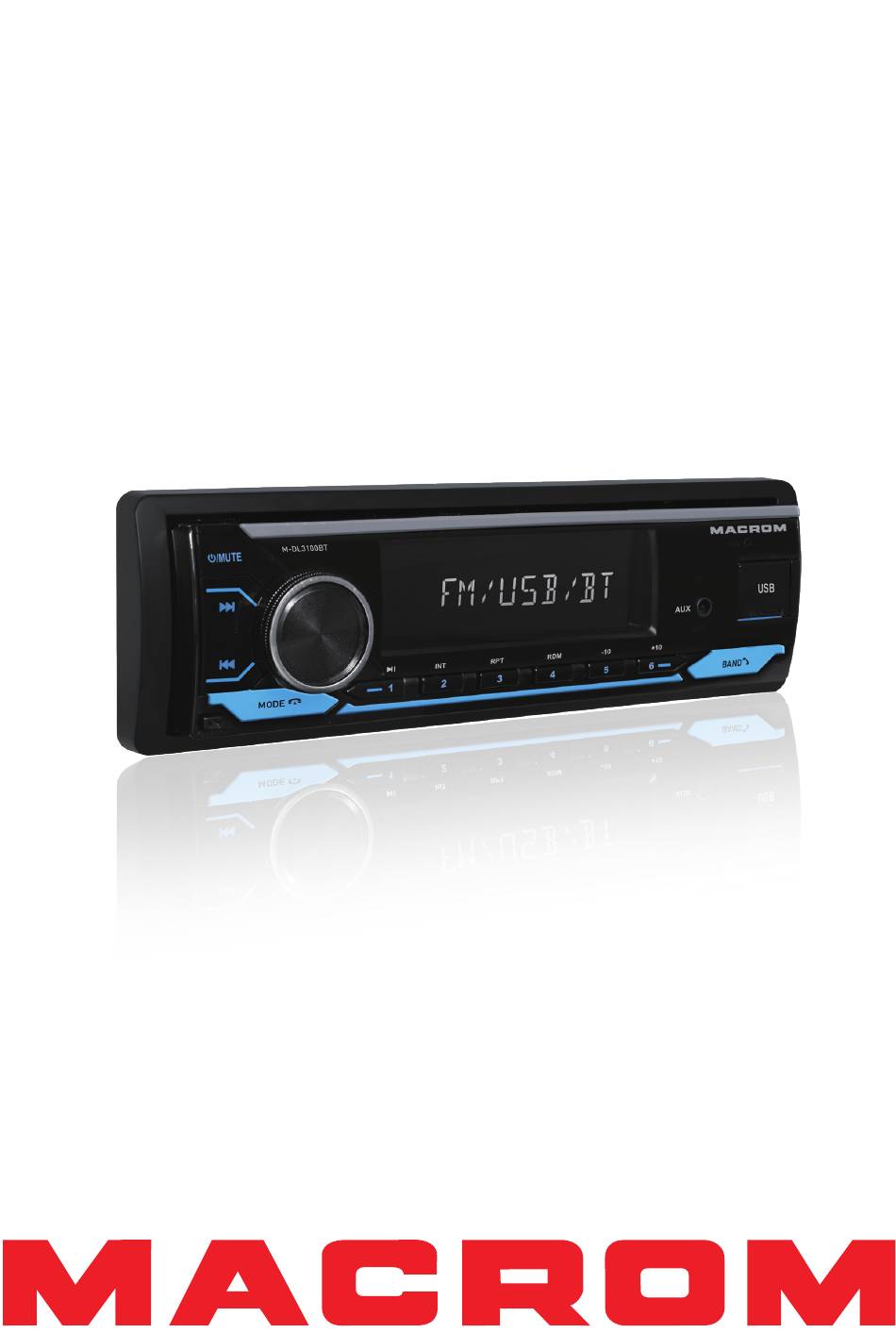

- Page 1 RADIO RADIO RECEIVER RECEIVER USER MANUAL M-DL3100BT...
-
Page 2: Safety Precautions
Safety Precautions Thank you for purchasing this product. Please read through these operating instructions so you will know how to operate your model properly. After you’ve finished reading the instructions, keep this manual in a safe place for future reference. Never expose this unit, amplifier, and Only connect the unit to a 12-volt power speakers to moisture or water to prevent... -
Page 3: Installation
Installation • Before final installation, connect the wiring temporalty and make sure it is all working properly. • Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. • This item must be installed by an authorized dealer in order to keep the warranty vaild. •... - Page 4 Installation Detachable control panel (D.C.P.) Removing the detachable control panel 1. Turn the power off 2. Press the D.C.P release button 3. Remove the D.C.P Panel release button Attaching the detachable control panel 1. Insert the panel from the right side. 2.
-
Page 5: Product Overview
Product overview Front Panel M-DL3100BT / MUTE BAND MODE Warning: The images in this manual are indicative only and may differ from the actual product. Refer to the actual device unit. 1. Power button (On / Off) and Mute 2. Search for next track / next radio station 3. -
Page 6: General Operations
General Operations Power On/Off button and MUTE button Press to turn on the unit, press and hold the button to turn off the unit. Press quickly to mute the unit (Mute) Menu key Press the MENU key to navigate through the menu items as follows: AUTO (BLUE / GREEN / CYAN / RED / PURPLE / YELLOW / WHITE) ->... - Page 7 If a radio station is found, it will automatically stop and start playing. 3. 6 radio stations can be pre-stored in each band. A total of 32 radio stations (18 FM, 12 AM) can be pre-stored in this unit. M-DL3100BT 4. Manually pre-store the radio station: / MUTE press and hold the desired preset button from (1-6) for about 3 seconds to save the frequency of the received radio station.
- Page 8 RPT ONE -> RPT DIR-> RPT ALL Random button When the random play mode is selected, the tracks will be played in random order, press P4 again to cancel the random play mode. M-DL3100BT / MUTE Next/Previous Track button In normal playback mode, press...
- Page 9 MMC/SD card & USB Operations Caution Carefully unplug the USB socket from the unit, excessive force may cause permanent and severe damage to the drive and USB device. Compatibility This unit may not be compatible with all USB devices. In particular, USB devices requiring a driver or a power supply of more than 1A. Specifications supported * Support MAX 32G USB flash memory * Support MAX 999 Songs...
-
Page 10: Bluetooth Mode
1. Select the BT audio source by pressing the MODE button repeatedly. The display shows the message “CONNECT”. Activate the Bluetooth function on the mobile phone and select the Bluetooth device name “M-DL3100BT” M-DL3100BT / MUTE 2. Wait until the connection is complete, the unit display shows “BT ON” and the name of your device. -
Page 11: Wire Connections
Wire Connections Fusibile 15A Connector A Connector B (Output speaker) (Power/service) Connector A Connector B Connector A (Output speaker) (Power/service) 1. Rear Right (+) 1. nc Connector A 2. Rear Right (-) 2. nc 1. Rear Right (+) 1. nc 3. -
Page 12: Declaration Of Conformity
Declaration of Conformity The manufacturer G.M.A. Italia s.r.l declares that the type of radio equipment- AM/FM/ radio receiver and USB/SD card reader, model M-DL3100DBT, brand Macrom - complies with the 2014/53 / EU Directive. The full text of the EU Declaration of conformity is available at the following internet address: www.macrom.it, or at...
