Marantz AV9000 Specifications

The Ultimate Home Theater Control Center
FM Tuner Section
# of FM/AM station presets:
Usable FM sensitivity (mono):
Signal to noise ratio (mono/stereo):
Stereo channel separation 1 kHz:
Total harmonic distortion (mono/stereo):
Alternate channel selectivity:
Capture ratio:
Rear Panel
Audio inputs CD, Tape,CD-R/ MD, TV, LD,DVD,
VCR1, DSS/VCR2
Direct inputs: LS, RS, Center, SW
Audio outputs: Tape, CD-R/MD, VCR1, DSS/VCR2,
Multi-Room
Composite Video inputs: TV, LD, DVD, VCR1,
DSS/VCR2
Composite Video outputs: VCR1, DSS/VCR2,
TV Monitor, Multi-Room
S-Video inputs: TV, LD, DVD, VCR1, DSS/VCR2
S-Video outputs: VCR1, DSS/VCR2, TV Monitor
Component video inputs: DVD, DSS/VCR2
Component video output: TV Monitor
Digital inputs: 2 Toslink, 2 Coaxial,
1 Dolby Digital RF
Digital outputs: 1 Toslink, 1 Coaxial
Preamp outputs: Front L/R, Surround L/R,
Center, Subwoofer
Remote (RC-5): 1 in, 1 out
Multi-Room (RC-5): 1 in, 1 out
General
Power requirements: 120 V, 60 Hz,
Dimensions H x W x D: 6 1 / " x 17
4
159mm x 440mm x 355mm
Weight: 17.7 lbs. 39 kg
"DOLBY", "DOLBY DIGITAL", "Dolby Pro Logic" and the
double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
DTS is a registered trademark of DTS Technology.
THX Ultra is a registered trademark of Lucasfilm Ltd.
All specifications are subject to change without notice.
© 1999 Marantz America, Inc.

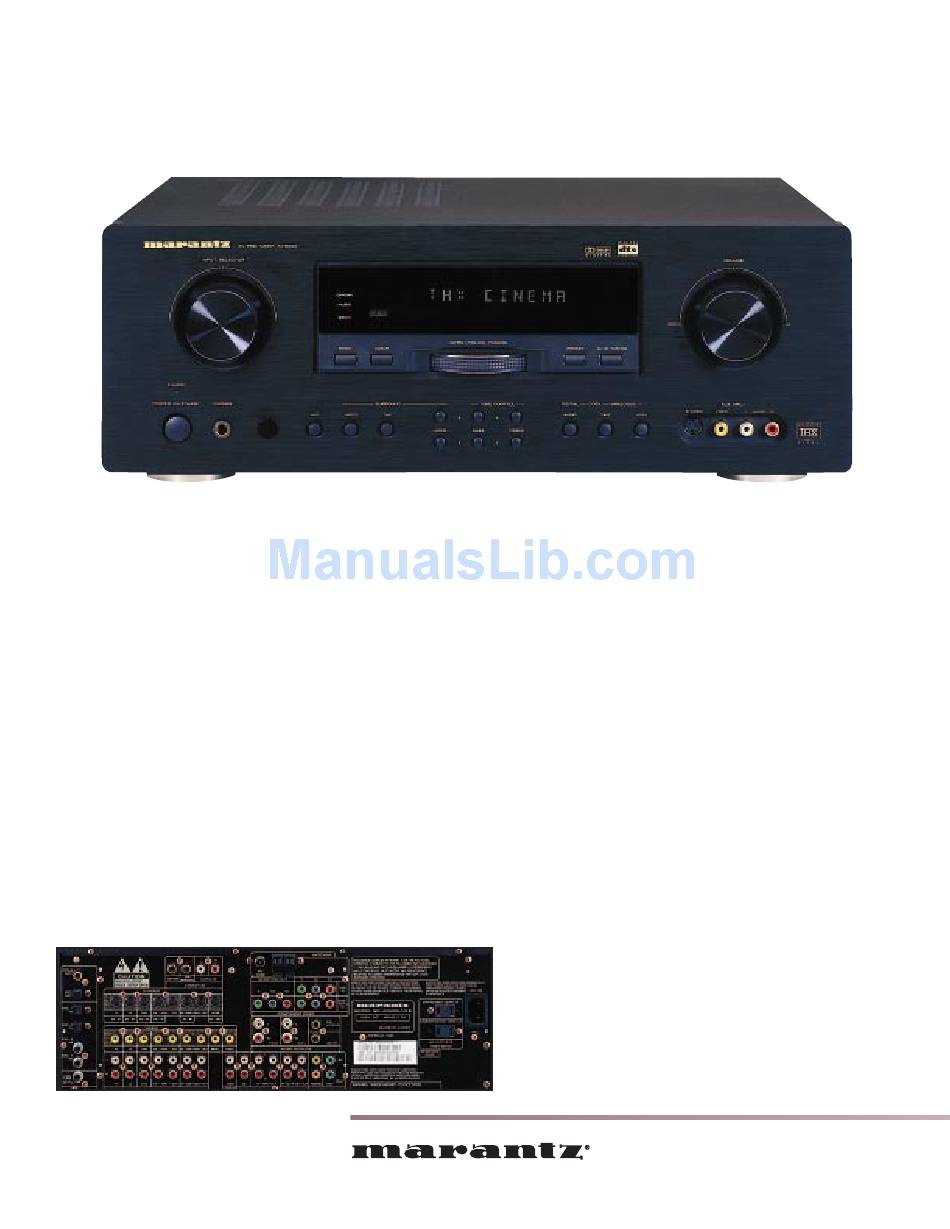

The Marantz AV-9000:
The THX Ultra
30
more performance, features and flexibility than ever before available in a high-end home theater
13.5 dBf
control center. The AV-9000 incorporates the most advanced digital technologies for unprecedented
76/73 dB
45 dB surround sound performance, along with a remarkable array of audio and video inputs and outputs
.2/.3 %
including component video switching.
65 dB
1 dB
Marantz AV-9000 Features:
Dolby Digital
variety of additional surround modes for total surround sound versatility. All surround sound settings
operate entirely in the digital domain.
THX ® Ultra post-processing provides the most accurate reproduction of movie soundtracks in the
home.
96kHz/24-bit dual-differential D/A converters and 24-bit A/D converters provide the highest
possible fidelity and high-resolution playback of 96/24 DVD audio discs.
Component video switching allows the user to choose between two component video sources,
such as a DVD player and DTV set-top decoder.
Six-channel direct inputs accommodate future surround sound formats or an external digital decoder.
Gyro-Touch tuning - provides precision AM/FM tuning via a large-diameter tuning wheel that is
weighted and balanced for a silky-smooth "feel," operating in conjunction with a sophisticated digital
tuner section, 30-station preset memory and a convenient station naming function.
Multi-room capability offers independent control of a second room audio and video system.
A special version of the RC2000 Mark II Programmable Learning Remote Control is included.
3 / " x 14"
This versatile remote can be programmed to operate every component in a home entertainment
8
system with one-touch macro convenience.
Marantz America, Inc.
Phone 630-307-3100 • Fax 630-307-2687 • www.marantz.com
® certified Marantz AV-9000 redefines the state of the art in preamp/processors, with
® and DTS ® surround sound decoding, plus Dolby Pro Logic
Wide variety of additional audio and video inputs, outputs and
switching facilities, including S-video and composite video switching,
coaxial and optical digital inputs and outputs, and a full selection of audio
inputs.
Premium-quality parts and construction including copper shielded
HDAMs (High Definition Amplifier modules) for maximum sonic
performance and reliability.
Easy-to-read fluorescent front panel display and user friendly
on-screen menu system.
440 Medinah Road
® decoding and a
Roselle, IL 60172
