Sunmi M2 - Android Tablet Manual

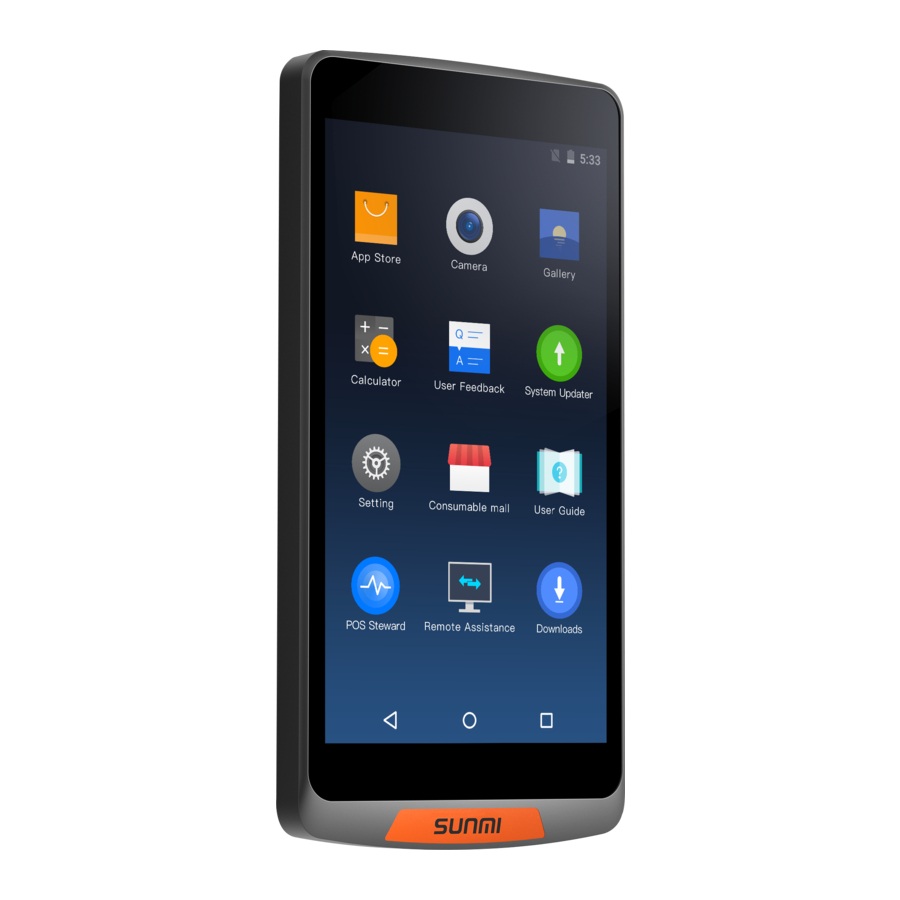

Product Introduction

Power key
Short press: light the screen, lock the screen.
Long press: in shutdown mode, long press for 2 to 3 seconds to turn on the device;
in service mode, long press for 2 to 3 seconds, and you can choose to shut down or to reboot;
in crashed mode, long press for 11 seconds to automatically reboot.

Volume key
Adjust the volume

Return key
Click to return to the previous screen

Main screen key
Click to quickly return to the main screen

Menu key
Click to quickly check the program running at the backstage; choose application and sideslip to close this application.

Camera
Used for payment code scanning, supporting 1 D & QR code.

SIM card slot
Note: this slot uses micro-SIM card; when inserting or taking out SIM card, the device must be always in shutdown mode. If it is inserted or taken out in the state of power-on, it may cause device fault.

Open the battery cover, insert or take out SIM card in the direction as shown in this figure;

Battery Instructions/Points for Attention

This device chooses 3.8V/3000mAh non-removable built-in lithium battery. Please don't disassemble it by yourself.

To ensure the lifetime of this battery, please don't charge it after it has been completely consumed.

Charging & battery instructions

This device supports the charging with USB line, and also charging with charging base;

Insert the base adapter into the charging socket;

Place the device into the charging base in the direction as shown in this figure;

It is being charged, there will be a corresponding icon to display it on the screen;

If there is no charging icon displayed, please check whether the direction in which the device is placed into the charging base is correct or not.

Minimalist Setting

It will take only a few steps to enable an intelligent commercial device

1. 2G/3G/4G device. Insert the corresponding 2G/3G/4G card in shutdown mode, and then turn the device on.
   (Please read the technical specification table as for the details of card support)
2. Long press the power key for 2 to 3 seconds, light the screen, enter the first boot interface and then operate according to the prompt. As for this device, there are two types of Internet surfing modes available.
3. WIFI setting

• Click "Setting" button, and then enable WLAN to enter WLAN search interface. Wait for its search and listing of available WLAN hot spots;
• Click WLAN to be connected. If one encrypted network is selected, it is necessary to enter access password for connection.

How to download/use App

As for the relevant Apps, you may complete the installation by opening App market, browsing & downloading App in networking mode.

Common troubleshooting

Unable to turn on the device

(for example: too low electric quantity of the device)

• Power on the device or place it onto the charging base to charge it. Turn the device on after charging for 3 minutes;
• Check whether charging state is normally displayed or not on the screen.

What to do if the device is crashed

Long press the power key for 11 seconds, and enter the reboot state.

More using help

After turning on the device, please check the "User Guide" of the application

Technical Indexes of the Product

Package Content

Name and content of toxic and harmful substances contained in this product are shown in the following table

	Toxic and harmful substances and elements
Name of parts	(Pb)	(Hg)	(Cd)	(Cr(VII)	(PBB)	(PBDE)
Circuit board
Shell

:It indicates that the content of toxic and harmful substances in allhomogeneous materials of this part is below the limit specified inSJ/T11363-2006.

:It indicates that the content of toxic and harmful substances is higher than the limit specified in SJ/T11363-2006 in at least one homogeneous material of this part; however, the the reason why the toxic substance of that part exceeds the limit is that there is no applicable material to replace it currently.

For products that have reached or passed the service years for environmental protection, they should be recycled according to Measures for Control and Management of Electronic Information Products and should not be thrown away at will.

Manufacture
Shanghai Sunmi Technology Co., Ltd.
Room 505 No.388 Song Hu Road Shanghai, China
