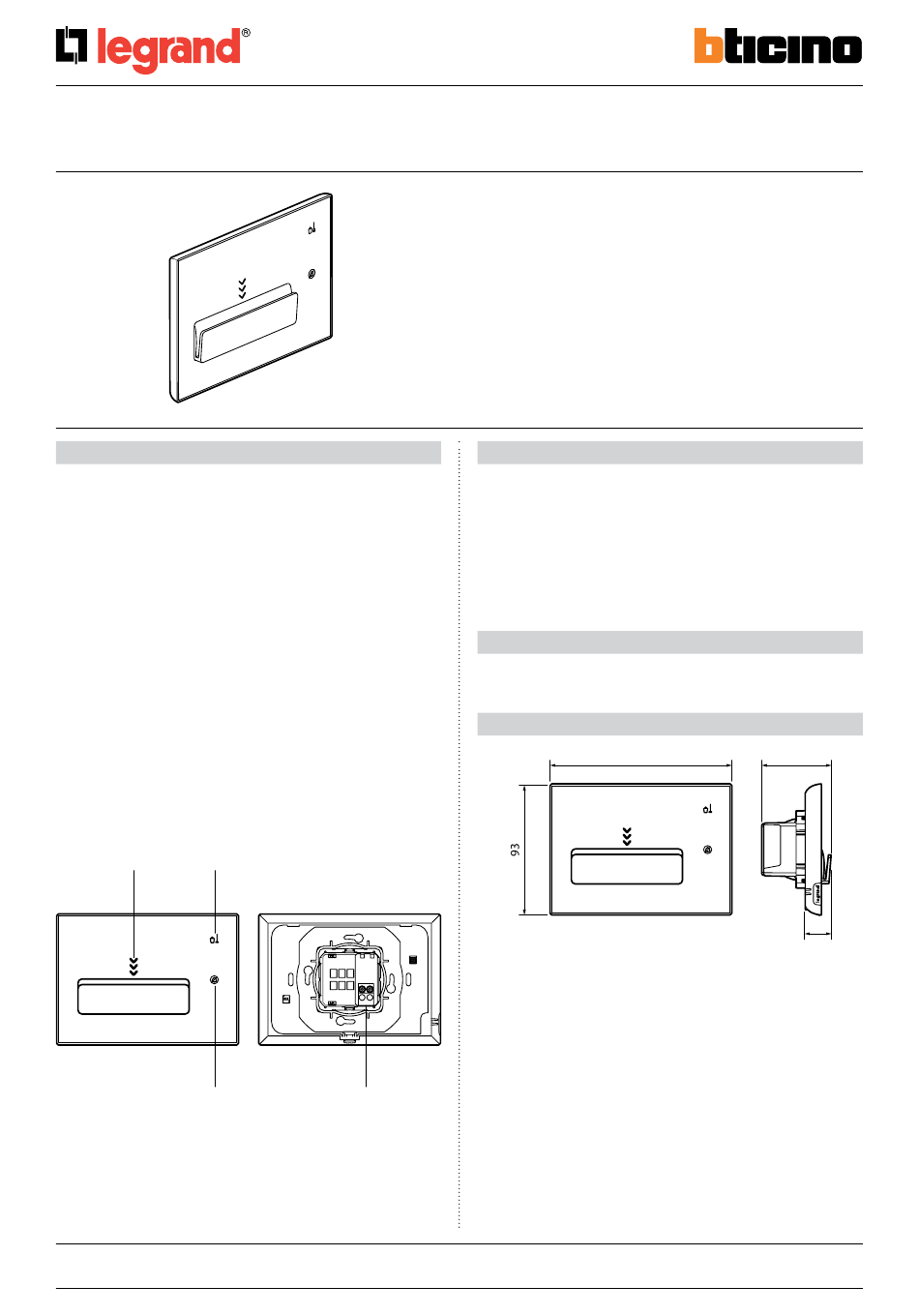

LEGRAND Bticino FL4649 Quick Start Manual

RFID keycard reader
BUS/SCS
1. DESCRIPTION
This is an RFID keycard reader (13.56 MHz) located at the entrance to the
room which can, by inserting an RFID keycard in the appropriate slot:
- indicate someone is in the room
- trigger a "welcome" scenario
And by removing it:
- indicate no one is in the room
- trigger a "goodbye" scenario
It can, by configuration, recognise a scenario associated with the keycard
profile (customer, management, etc).
It indicates and can be used to activate the housekeeping information:
- Do Not Disturb
- Make Up Room
- Extra service, for example picking up laundry (only available on
configured version)
The card position is indicated by arrows (illuminated flashing path).
It has a proximity sensor which can be disabled by configuration: when
the device detects an approach, it switches from standby state to active
state. The LED brightness level (on standby or active) can also be set by
configuration.
It can be configured using the MyHOME_Suite software, which can be
downloaded from the website www.homesystems-legrandgroup.com.
Front view
3 1
2
Key
1. MUR indicator (green LED on = MAKE UP ROOM)
2. DND indicator (red LED on = DO NOT DISTURB)
3. Keycard slot indicator
4. BUS/SCS plug-in connector
Technical data sheet: S000102710EN-1
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: +33(0)5 55 06 87 87 Fax: +33(0)5 55 06 88 88
www.legrand.com
Rear view
4
5
4
Updated: 24/04/2018
CONTENTS
1. Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2. Technical characteristics . . . . . . . . . . . . . . . . . . . . . . 1
3. Standards, certifications and markings. . . . . . . . 1
4. Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
5. Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
6. Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
7. Configured version Cat. No. 0 487 80/FL4659. . 3
2. TECHNICAL CHARACTERISTICS
BUS/SCS power supply:
Standby consumption:
On-load consumption:
RFID frequency:
Operating temperature:
Storage temperature:
Protection index:
Plate and surround colour:
3. STANDARDS, CERTIFICATIONS AND MARKINGS
EN 60669-2-5
CE marked
4. DIMENSIONS
129
Cat. No(s): 0 487 70/80
FL4649/49W/59
Page
18-27 VDC
12 mA
25 mA
13.56 Mhz
0°C to +40°C
-20°C to +70°C
IP 20, IK 04
Black Cat. No. 0 487 70/FL4649
or white Cat. No. FL4649W
49
18.1
Created: 13/04/2018
1/3
