ITALIANO

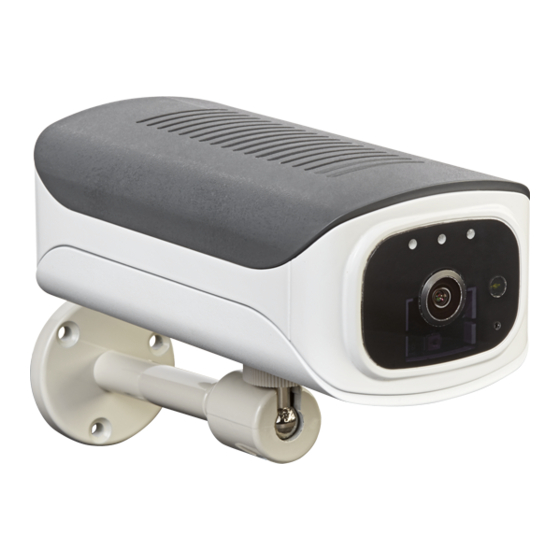

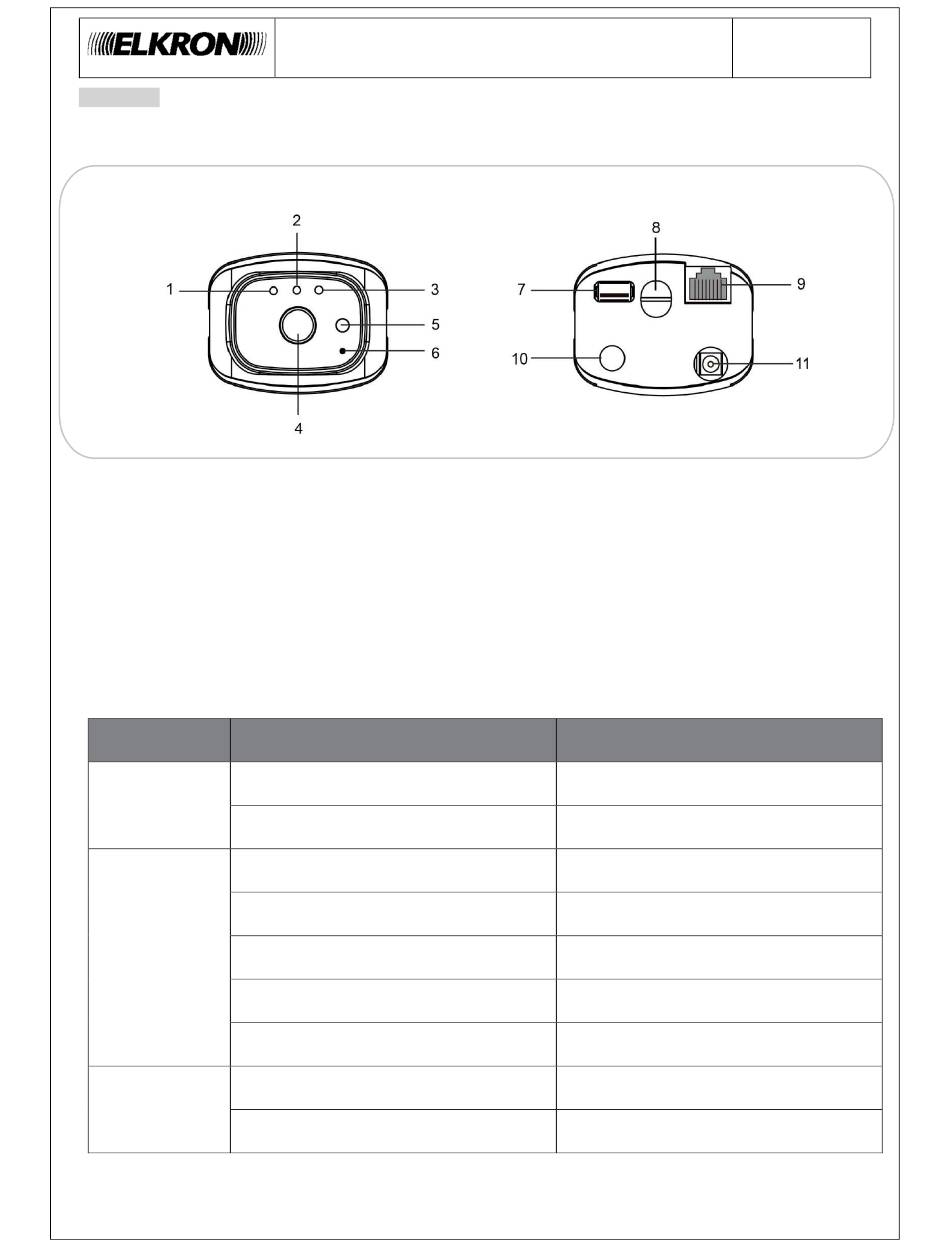

Vista frontale
1)
Led VERDE
2)
Led ROSSO
3)
Led GIALLO
4)
Lente
5)
Sensore di luminosità
6)
Microfono
TEL600EXT è compatibile con le Micro SD fino a 32GB di memoria (la Micro SD non è inclusa nella telecamera).
NOTA BENE: Prevedere max 4 telecamere per impianto.
LED
Acceso
VERDE
Spento
Lampeggio continuo
3 lampeggi veloci
ROSSO
2 lampeggi veloci
Acceso
Acceso
Spento
GIALLO
Lampeggio veloce per 5 minuti
GUIDA RAPIDA
TELECAMERA IP TEL600EXT
Comportamento
Vista posteriore
7)
Porta USB (Type A)
8)
Slot per Micro SD
9)
Porta Ethernet
10) Tasto Apprendimento / Privacy
11) Jack per alimentazione
Condizione
La telecamera è alimentata
La telecamera non è alimentata
La telecamera non è connessa al server EGON
Telecamera associata al router tramite WiFi
Ingresso/Uscita dalla modalità Privacy
La telecamera è in modalità Privacy
Connessa a Internet (via cavo o wireless)
Disconnessa da Internet
La telecamera è in apprendimento
