CONSUMER SAFETY INFORMATION
 Read this manual before installing and operating this appliance
 Failure to follow these instructions may result in electric shock, fire property,
or personal injury
 Do not store or use gasoline or other flammable liquids in vicinity of this
appliance.

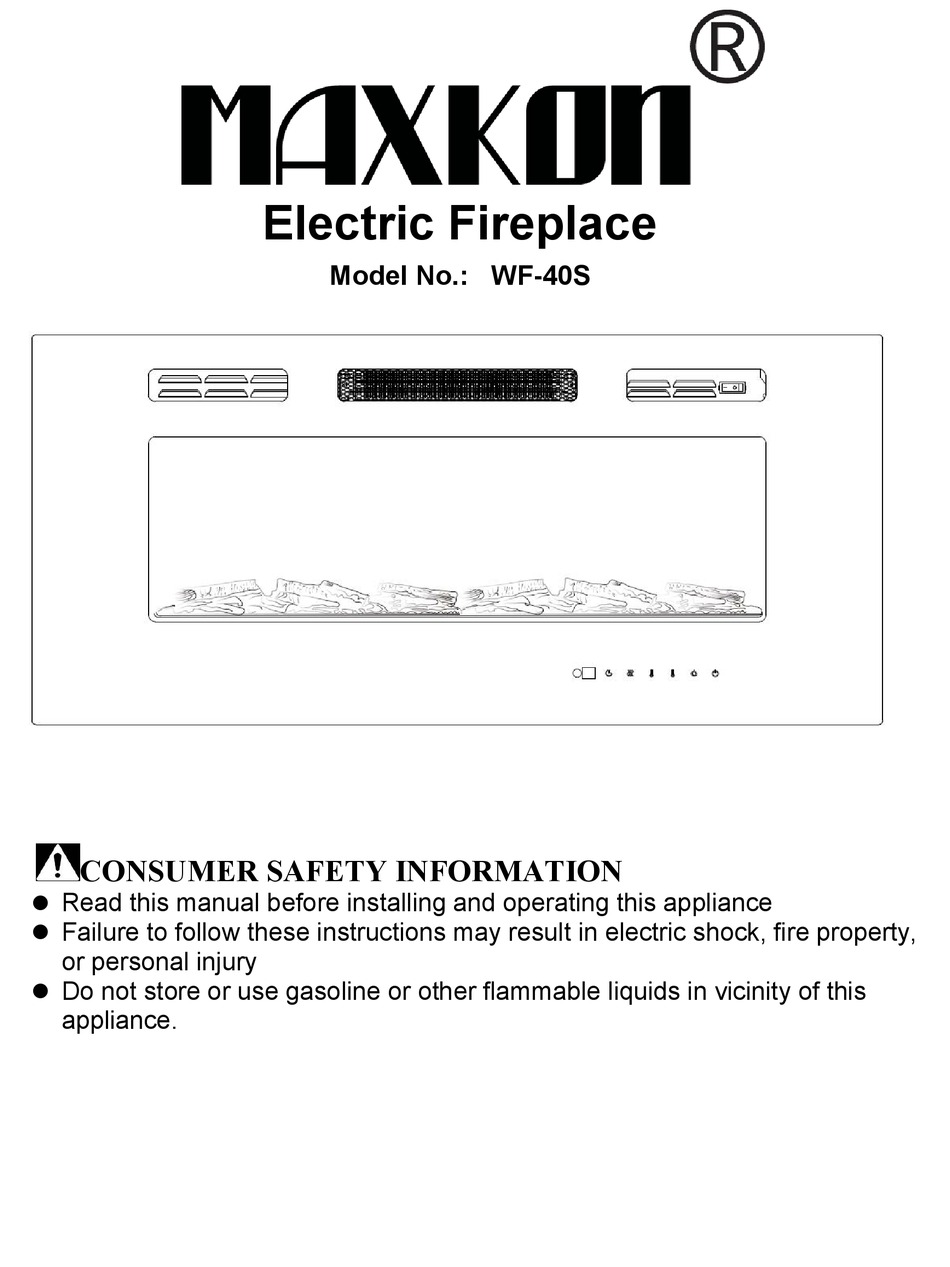

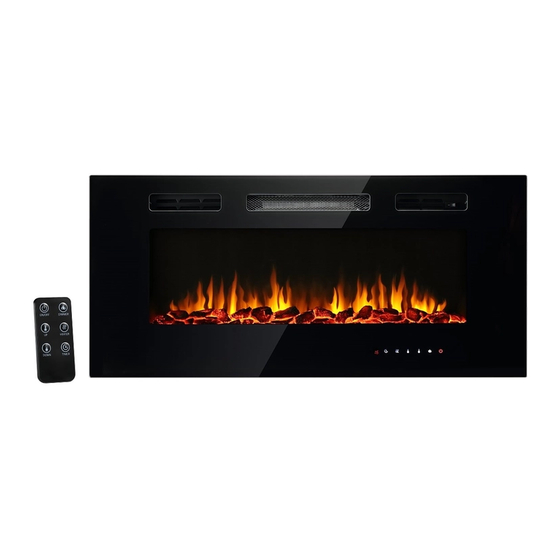

Electric Fireplace
Model No.: WF-40S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WF-40S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Maxkon WF-40S

  • Page 1 Electric Fireplace Model No.: WF-40S CONSUMER SAFETY INFORMATION  Read this manual before installing and operating this appliance  Failure to follow these instructions may result in electric shock, fire property, or personal injury  Do not store or use gasoline or other flammable liquids in vicinity of this...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION! WARNING  Read all instructions before using this heater!  This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the heater, and keep them away from the sides and rear.
  • Page 3  DO NOT place the heater near a bed because objects such as pillows or blankets can fall off the bed and be ignited by the heater.  NEVER use this heater in bathrooms, laundry rooms, or any other location where the heater could fall into a bathtub or pool, become damp or come in contact with water.

  • Page 4: Parts & Hardware

    PREPARATION This product includes a GLASS panel! Always use extreme caution when handing glass. Failure to do so could result in personal injury or property damage. Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts and assembly steps are grounded for wall-hanging or recessing use.

  • Page 5: Installation And Assembly

    PRODUCT DIMENSIONS Model Number WF-1340 40” 18.35” 4.76” 30.83” 17.68” 8.3” 29.0” 101.6cm 46.6cm 12.1cm 78.3cm 49.90cm 21.1cm 73.7cm Installation and Assembly Your appliance is a wall-mounted, recessed and /or mantel installed appliance. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic areas. NOTE：...
  • Page 6 STEP A. Selection a dry wall to open a hole for fireplace box. Size of hole as below chat Figure (A) Framing Hole Size WF-40S 31.30”(79.5cm) 18.0”(45.5cm) STEP B. Fix the three wall anchors in each side of the fireplace box according to the dimensions...
  • Page 7 STEP C. Take off the two screws in both sides and remove two screws at front both corner of fireplace. Figure STEP D. Have two person to take the glass panel out of the fireplace box. Place it to a soft and clean place.
  • Page 8 STEP E. Have two person to move the fireplace box to the wall hole. If the appliance is fully recessed into the wall:  Take the glass off see Figure(E). then take the the foam out off appliancesee Figure(F). Use the 4 screws(provided) to lock the appliance into wall with the existing two side flanges, see Figure(G).
  • Page 9 Wall Mounted Installation Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. A. Select a location that is not prone to moisture and is located at least 36”(914mm) away from combustible materials such as curtain drapes, furniture, bedding, paper, etc.
  • Page 11 WARNING Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure do to so could result in electric shock, fire, serious injury, or death. Power Plug the power cord into a 220-240V Volt 7.8 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3).Make sure the outlet is in good condition and that the plug is not loose.NEVER exceed the maximum amperage for the circuit.

  • Page 12: Remote Control

    Touch panel/Remote control Operation BUTTON FUNCTION ACTION&INDICATION Enables control panel functions and remote 1. Press once. Indicator light turns on. Power turns control.Turn on flame effect. on. All functions enabled. OFF: Disables control panel functions and remote 2. Press control.Turn off flame effect. POWER FLAME button: Makes flame effect dimmer and brighter.

  • Page 13: Remote Control Setup

    The remote control operates with one 3V CR2025 Lithium Cell Battery (included). Remove the protective sheet between the battery and the contacts in order to operate (see Page 7). ALWAYS unplug this fireplace heater before assembly or cleaning, or before relocating.

  • Page 14: Care And Maintenance

    CARE AND MAINTENANCE Cleaning ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury. NEVER immerse in water or spray with water. Doing so could result in electric shock, fire, or personal injury.

  • Page 15: Troubleshooting

    Troubleshooting WARNING DISCONNECTED THE APPLIANCE COMPLETELY AND LET COOL PRIOR TO ANY SERVICE. ONLY A QUALIFIED SEVICE PERSON SHOULD SERVICE AND PEPAIR THIS ELECTRIC APPLAINCE. Problem Possible Cause Solution 1. Fireplace turns off 1. Fireplace has overheated 1. Reset switch by turning main and will not turn on.
