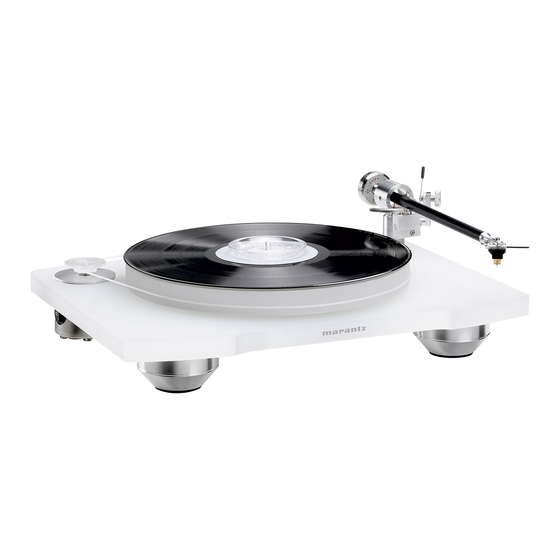

Marantz TT-15S1 Specification Sheet

TT-15S1
REFERENCE TURNTABLE
Analog recording is still very alive. Quality turntables are still in demand. Digital discs simply set new performance standards
that turntables must meet. Many cherished records may never be issued on digital formats. Good turntables are now more
important than ever. Marantz embraces an audiophile quality turntable with DC servo belt-drive and low-coloration tone arm
to answer the need for a high performance source component for the analog record.
• Low-Resonance High-Density Acrylic Chassis and Platter
• Floating Motor Mount Construction
• Non-Servo Controlled Type AC Motor
• Belt Drive System with Endless Silicon Belt
• Anodized Aluminum Straight Type Tone Arm

FEATURES

Motor
Drive system
Operation
Speed
Stylus

IN/OUTPUTS

Line output

SPECIFICATIONS

Speed variation
Rated output (1kHz, 5m/s)
Frequency Response
S/N Ratio MM/MC
Channel Separation

GENERAL

Color
Platter height
Power Consumption
Dimensions W x H x D
Weight
*All specifications, dimensions and weights are subject to change without notice. D&M Holdings, Marantz, Marantz America, Inc. or any of its subsidiaries will not assume any liability for errors in this spec
sheet which may result in consequential errors being made by retail dealers, designers, custom installers, cabinet makers or end users, etc based upon information contained within this document. 05/06
Non Servo AC Motor
Belt Drive (Silicon Belt)
Manual
33 1/3 & 45 rpm
MM (Moving Magnet)
2 channel
+/- 0.2%
3.6mV
20Hz – 20kHz
80dB/-
>30dB
Transparent White
1.2"
5W
16.5" x 5.4" x 14.2" (w/o Tonearm)
19.6 lbs (w/o Tonearm & motor)
©2006 Marantz America, Inc. • www.marantz.com
• Magnetic Type Anti-Skating Mechanism
• Fine Adjustable Counter Weight
• Solid Aluminum 3 points Support Feet
• Ebony Base High Quality MM Cartridge
• "Clever Clamp" by Souther Engineering
