Summary of Contents for Gemalto CINTERION DSB-Mini

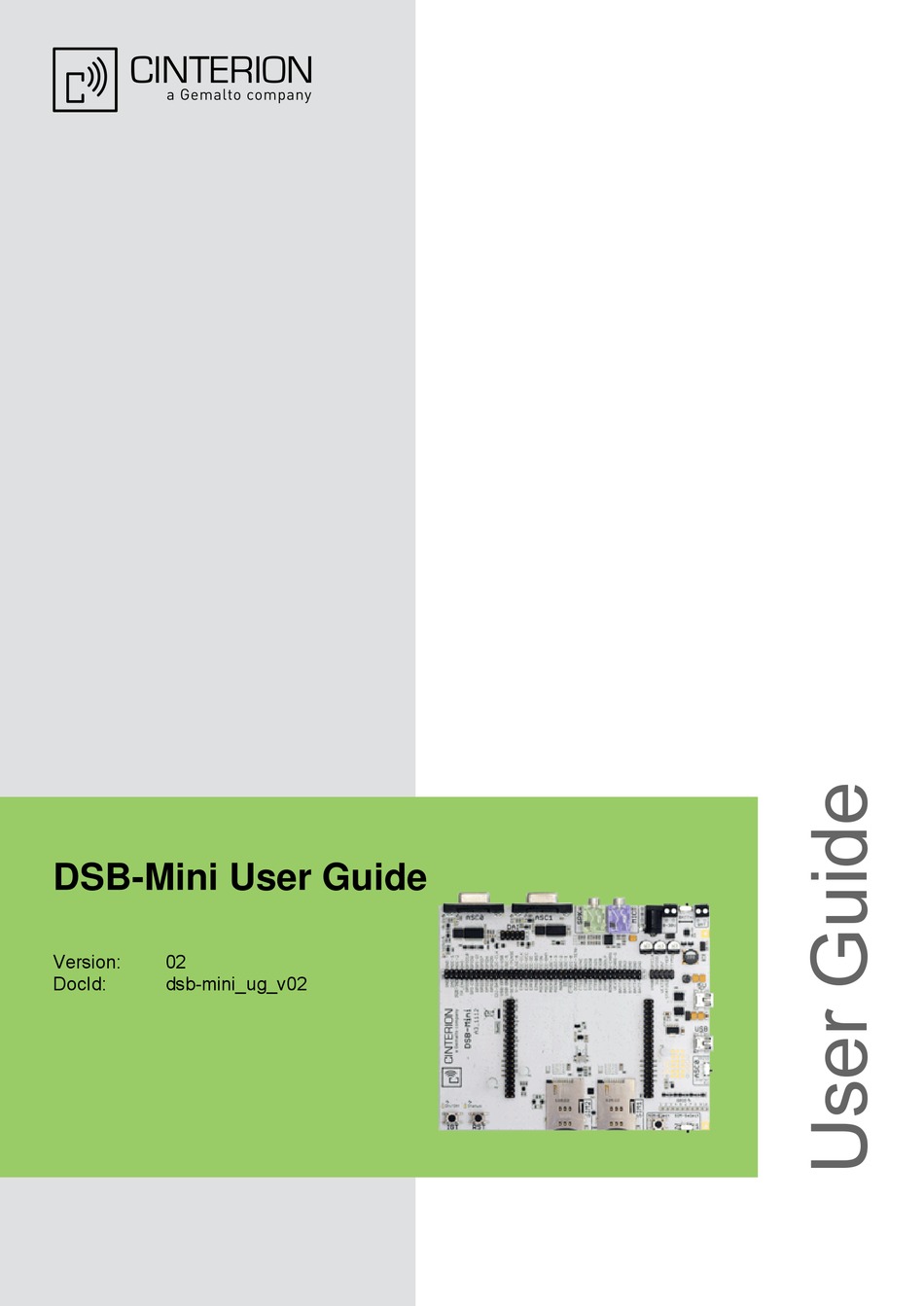

  • Page 1 DSB-Mini User Guide Version: DocId: dsb-mini_ug_v02...
  • Page 2 DSB-Mini User Guide User Guide: DSB-Mini User Guide Version: Date: 2012-10-09 DocId: dsb-mini_ug_v02 Status Confidential / Released GENERAL NOTE THE USE OF THE PRODUCT INCLUDING THE SOFTWARE AND DOCUMENTATION (THE "PROD- UCT") IS SUBJECT TO THE RELEASE NOTE PROVIDED TOGETHER WITH PRODUCT. IN ANY EVENT THE PROVISIONS OF THE RELEASE NOTE SHALL PREVAIL.

  • Page 3: Table Of Contents

    DSB-Mini User Guide Contents Contents Document History ...................... 6 Introduction ......................... 7 Regulatory Compliance Information..............7 Supported Products ................... 7 Related Documents ................... 7 Scope of delivery ....................8 Product Concept ......................9 Key Features at a Glance ................10 System Overview .....................
  • Page 4 DSB-Mini User Guide Tables Tables Table 1: DSB-Mini delivery package ................8 Table 2: Key features at a glance ................10 Table 3: Automatic dual SIM operation ................ 14 Table 4: CCVCC adjustment..................15 Table 5: Status LEDs ....................15 Table 6: 2x40 pin connector pin assignment..............
  • Page 5 DSB-Mini User Guide Figures Figures Figure 1: DSB-Mini overview................... 9 Figure 2: DSB-Mini system overview ................11 Figure 3: Schematics, Page 1 ..................24 Figure 4: Schematics, Page 2 ..................25 Figure 5: Schematics, Page 3 ..................26 Figure 6: Schematics, Page 4 ..................

  • Page 6: Document History

    DSB-Mini User Guide 0 Document History Document History Preceding document: "DSB-Mini User Guide" Version 01 New document: "DSB-Mini User Guide" Version 02 Chapter What is new New section Regulatory Compliance Information. New document: "DSB-Mini User Guide" Version 01 Chapter What is new Initial document setup.

  • Page 7: Introduction

    DSB-Mini User Guide 1 Introduction Introduction The DSB-Mini is a simple and easy-to-use development support board, designed to assist sys- tem integrators in developing and evaluating products based on Cinterion Wireless Modules. This document describes all interfaces of the DSB-Mini, provides technical specifications and presents guidelines for connecting and operating the Cinterion modules to be evaluated.

  • Page 8: Scope Of Delivery

    DSB-Mini User Guide 1.4 Scope of delivery Scope of delivery Table 1: DSB-Mini delivery package Quantity Description DSB-Mini The Cinterion modules, Starter Kits and DSB75 module adapter for use with the DSB-Mini are not included in the scope of delivery. dsb-mini_ug_v02 Page 8 of 30 2012-10-09...

  • Page 9: Product Concept

    DSB-Mini User Guide 2 Product Concept Product Concept Figure 1 shows the location of the DSB-Mini’s interfaces and switches. 80-pin connector 8-30V mains Battery power RS-232 Interfaces power supply for DSB75 adapter supply ASC0 ASC1 Starter Kit Digital Analog Power supply signals audio interface audio interface...

  • Page 10: Key Features At A Glance

    DSB-Mini User Guide 2.1 Key Features at a Glance Key Features at a Glance Table 2: Key features at a glance Feature Implementation Module interface 2x40-pin connector to mount Cinterion Starter Kits B60/B80. 80-pin connector to mount Multi-Adapter R1 or other DSB75 module adapter.

  • Page 11: System Overview

    DSB-Mini User Guide 2.2 System Overview System Overview Power supply 8..30V Coaxial DC power connector + supply clamp 2x USB (1A) Supply clamp batt SIM Slot (card detection) RS232 M2M-UICC ASC0 & ASC1 2x DSUB-9 (option) Dual-SIM (option) - ON/OFF - SYNC LEDs Analog audio...

  • Page 12: Interface Description

    DSB-Mini User Guide 3 Interface Description Interface Description Power Supply To operate the DSB-Mini (including a connected module) a constant voltage supply is required. The following power supply sources may be employed: • 8-30V mains adapter Provides the main power supply for all DSB-Mini functions. An internal DC/DC switching regulator adjusts the voltage down to 5V.

  • Page 13: Serial Communication Interfaces

    DSB-Mini User Guide 3.2 Serial Communication Interfaces Serial Communication Interfaces The DSB-Mini has two RS-232 interfaces to communicate with the module’s serial interfaces ASC0 and ASC1. ASC0 is a full 8-wire UART interface, while ASC1 is a 4-wire UART interface. If the DSB-Mini is employed together with an adapter like the Multi-Adapter R1 or any other DSB75 module adapter, the RS-232 interfaces (ASC0, ASC1) on the DSB-Mini are automati- cally enabled and can be used.

  • Page 14: Analog Audio Interface

    DSB-Mini User Guide 3.3 Analog Audio Interface Analog Audio Interface A standard PC headset can be connected via the two 3.5mm jack sockets (SPK=Speaker, MIC=Microphone). SIM Interface The DSB-Mini has a dual SIM interface and provides two SIM card holders or alternatively two land patterns for component SIMs to be soldered.

  • Page 15: Ccvcc Adjustment

    DSB-Mini User Guide 3.5 Status LEDs 3.4.2 CCVCC Adjustment By default, the "SIM-Supply" switch is set to "CCVCC" and should remain as such, meaning that CCVCC is delivered from the module. In some cases however, employing the dual SIM feature may require a slightly higher supply level to compensate for possible voltage drops.

  • Page 16: Application Connectors

    DSB-Mini User Guide 3.6 Application Connectors Application Connectors The DSB-Mini has a number of connectors for various purposes as described in the sections below. 3.6.1 2x40-Pin Connector for Starter Kits The 2x40-pin connector can be employed to mount any Cinterion Starter Kit with a plugged module.

  • Page 17: Table 7: 2X40-Pin Connector Pin Description And Mapping

    DSB-Mini User Guide 3.6 Application Connectors The following table describes the pin assignment in somewhat more detail and also maps the Starter Kit pins to the DSB75 adapter connector pins, the DAI connector pins and the additional Starter Kit pins. Table 7: 2x40-pin connector pin description and mapping Interface Name Type / Comments...
  • Page 18 DSB-Mini User Guide 3.6 Application Connectors Table 7: 2x40-pin connector pin description and mapping Interface Name Type / Comments Starter-Kit connector DSB-75 connector DAI connector Additional connector (2x40 pins) (80 pins) (10 pins) (10 pins) EPP1 Module signals EPN1 TTY signals may be implemented on MICP1 Starter Kit MICN1...
  • Page 19 DSB-Mini User Guide 3.6 Application Connectors Table 7: 2x40-pin connector pin description and mapping Interface Name Type / Comments Starter-Kit connector DSB-75 connector DAI connector Additional connector (2x40 pins) (80 pins) (10 pins) (10 pins) ADC1 Module signals ADC2 CCVCC Module signals and combined Dual- SIM signals CCCLK...
  • Page 20 DSB-Mini User Guide 3.6 Application Connectors Table 7: 2x40-pin connector pin description and mapping Interface Name Type / Comments Starter-Kit connector DSB-75 connector DAI connector Additional connector (2x40 pins) (80 pins) (10 pins) (10 pins) VDDLP Module signals VEXT1 VEXT2 V480 Supply voltage Supplied from USB power supply...

  • Page 21: 80-Pin Connector For Dsb75 Module Adapters

    DSB-Mini User Guide 3.6 Application Connectors 3.6.2 80-Pin Connector for DSB75 Module Adapters The 80-pin connector allows for signal measurement and external application connection in case a Cinterion Starter Kit is mounted to the DSB-Mini. However, DSB-Mini’s 80-pin connector has the same pin assignment as the DSB75’s 80-pin connector (see Table 8 and [3]) and thus also allows to mount all existing DSB75 module...

  • Page 22: 10-Pin Digital Audio Connector

    DSB-Mini User Guide 3.6 Application Connectors Table 8: 80-pin connector pin assignment Pin# Pin Name Pin Name Pin# RTS1 RXD0 DTR0 TXD1 RTS0 TXD0 DSR0 VDDLP RING0 VCHARGE VEXT CHARGEGATE BATT+ BATT+ BATT+ BATT+ BATT+ 3.6.3 10-Pin Digital Audio Connector The 10-pin digital audio interface (DAI) connector matches the DSB75’s digital audio connector X703 (see [3]).

  • Page 23: Patch Field

    DSB-Mini User Guide 3.7 Patch Field Patch Field To realize smallish external applications like for instance measurement circuits, the DSB-Mini provides a so-called patch field on board, comprising a number of unconnected solder pads together with GND pads and 3.0V/5V supply pads (see Figure dsb-mini_ug_v02 Page 23 of 30...

  • Page 24: Appendix: Schematics And Placement

    DSB-Mini User Guide 4 Appendix: Schematics and Placement Appendix: Schematics and Placement *) DSB.nano refers to the Starter Kits B60/B80 Figure 3: Schematics, Page 1 dsb-mini_ug_v02 Page 24 of 30 2012-10-09 Confidential / Released...

  • Page 25: Figure 4: Schematics

    DSB-Mini User Guide 4 Appendix: Schematics and Placement Figure 4: Schematics, Page 2 dsb-mini_ug_v02 Page 25 of 30 2012-10-09 Confidential / Released...

  • Page 26: Figure 5: Schematics

    DSB-Mini User Guide 4 Appendix: Schematics and Placement Figure 5: Schematics, Page 3 dsb-mini_ug_v02 Page 26 of 30 2012-10-09 Confidential / Released...

  • Page 27: Figure 6: Schematics

    DSB-Mini User Guide 4 Appendix: Schematics and Placement Figure 6: Schematics, Page 4 dsb-mini_ug_v02 Page 27 of 30 2012-10-09 Confidential / Released...

  • Page 28: Figure 7: Schematics

    DSB-Mini User Guide 4 Appendix: Schematics and Placement Figure 7: Schematics, Page 5 dsb-mini_ug_v02 Page 28 of 30 2012-10-09 Confidential / Released...

  • Page 29: Figure 8: Placement, Page 1 (Top)

    DSB-Mini User Guide 4 Appendix: Schematics and Placement Figure 8: Placement, Page 1 (top) dsb-mini_ug_v02 Page 29 of 30 2012-10-09 Confidential / Released...

  • Page 30: Figure 9: Placement, Page 2 (With Starter Kit Mounted)

    DSB-Mini User Guide 4 Appendix: Schematics and Placement R14 R7 Figure 9: Placement, Page 2 (with Starter Kit mounted) dsb-mini_ug_v02 Page 30 of 30 2012-10-09 Confidential / Released...
