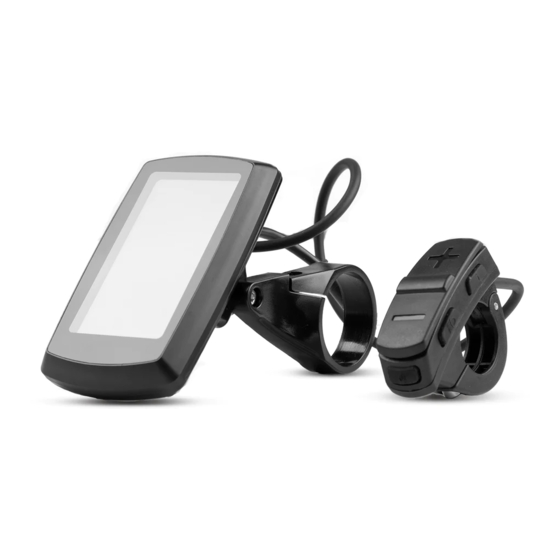

YL80C Display Function Manual
Part 1: The Meter display

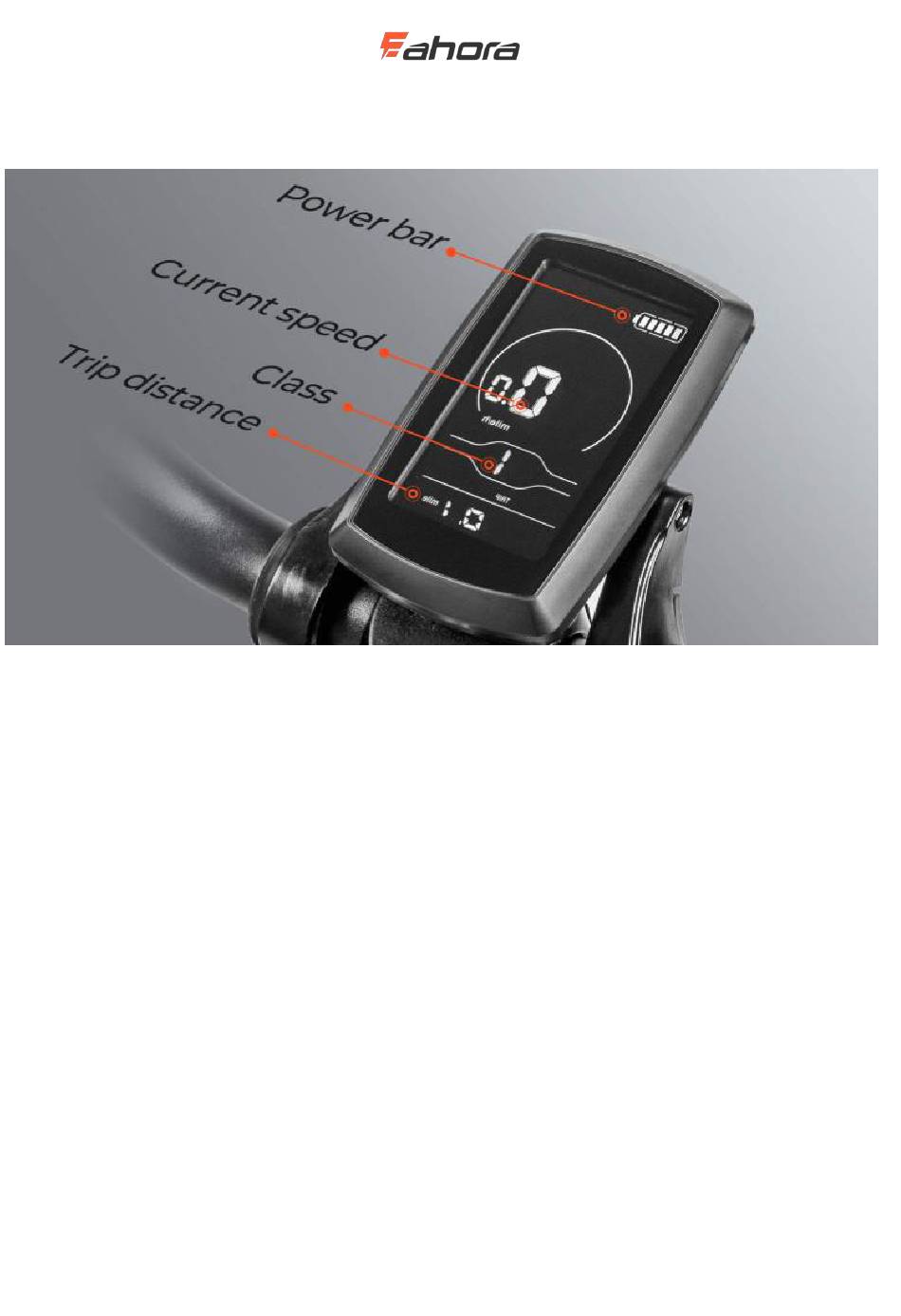

1. LCD display content:
① Battery indication;
② Instantaneous, AVG, MAXS speed + unit; Set parameter item indication;
Error Code indication;
③ PAS class;
④ Mileage + Unit; Setting parameter content indication.
Advertisement
Table of Contents
Summary of Contents for Eahora YL80C
- Page 1 YL80C Display Function Manual Part 1: The Meter display 1. LCD display content: ① Battery indication; ② Instantaneous, AVG, MAXS speed + unit; Set parameter item indication; error code indication; ③ PAS class; ④ Mileage + Unit; Setting parameter content indication.
- Page 2 2. Buttons: Part 2: Instrument functions 1.On/Off function: In the shutdown state, long press the [M] to start the E-bike; In the power on state, long press the [M] to turn off the E-bike. 2.On/Off headlight function: In the power on state, short press the [Headlight] to turn on the headlight. Then short press the [Headlight] again to turn off the headlight.
- Page 3 press the [ - ] to reduce the PAS level (PAS class is adjustable 0-3), Power on default Class 1; In the power-on state, press the [ i ] button once to switch the menu interface once [Real-time speed (KM / h) → Average speed (KM / h)→ Maximum speed (KM / h) →...
- Page 4 ① Wheel diameter setting (LD); ② Speed limit setting (LS); In the Parameter Setting 1 state, press and hold the [ + ] and [ - ] buttons for 3S at the same time to enter the Personalized Parameter Settings state. At this time, the speed is displayed as an adjustable parameter item and the gear position is displayed as an adjustable parameter item number ;...
- Page 5 When the class is selected in the setting state, the speed display flashes and the mileage The display flashes, the speed display is an adjustable function and is always [ i ] Long press the for 3S to save and exit the setting state. [ - ] Long press the for 3S, the setting state is not saved and exited.
- Page 6 Adjustable range: 16, 18, 20, 22, 24, 26, 700C, 28 The default is 20 inch (5): Speed limit setting (LS) Adjustable range: 12 ~ 40Km / h 25Km / h by default. (6): Battery level setting (VOL) Adjustable from 1 to 5 voltage levels Default VOL 1 = 31.5 VOL2 = 34.5 VOL3 = 35.6 VOL4 = 37.4 VOL5 = 39.2 Remarks: There are three levels of 24 36 48 in voltage state.
- Page 7 (8): Current limit value setting (CUR) Adjustable range 7.0-25.0A, default 15.0A (9): Power sensor setting (PAS) ① Direction of adjustable boost sensor: run-F represents forward direction, run-b represents reverse direction ② Adjustable power sensor sensitivity (SCN), setting range 2-9. 2 means highest sensitivity, 9 means lowest sensitivity, factory default 2. ③...
- Page 8 Error30: Communication error Warning! Ensure you do not change settings that are not marked in the above settings. Changing other settings may cause your bike to stop working properly. If you need the default settings for the advanced settings menu contact Eahora.
