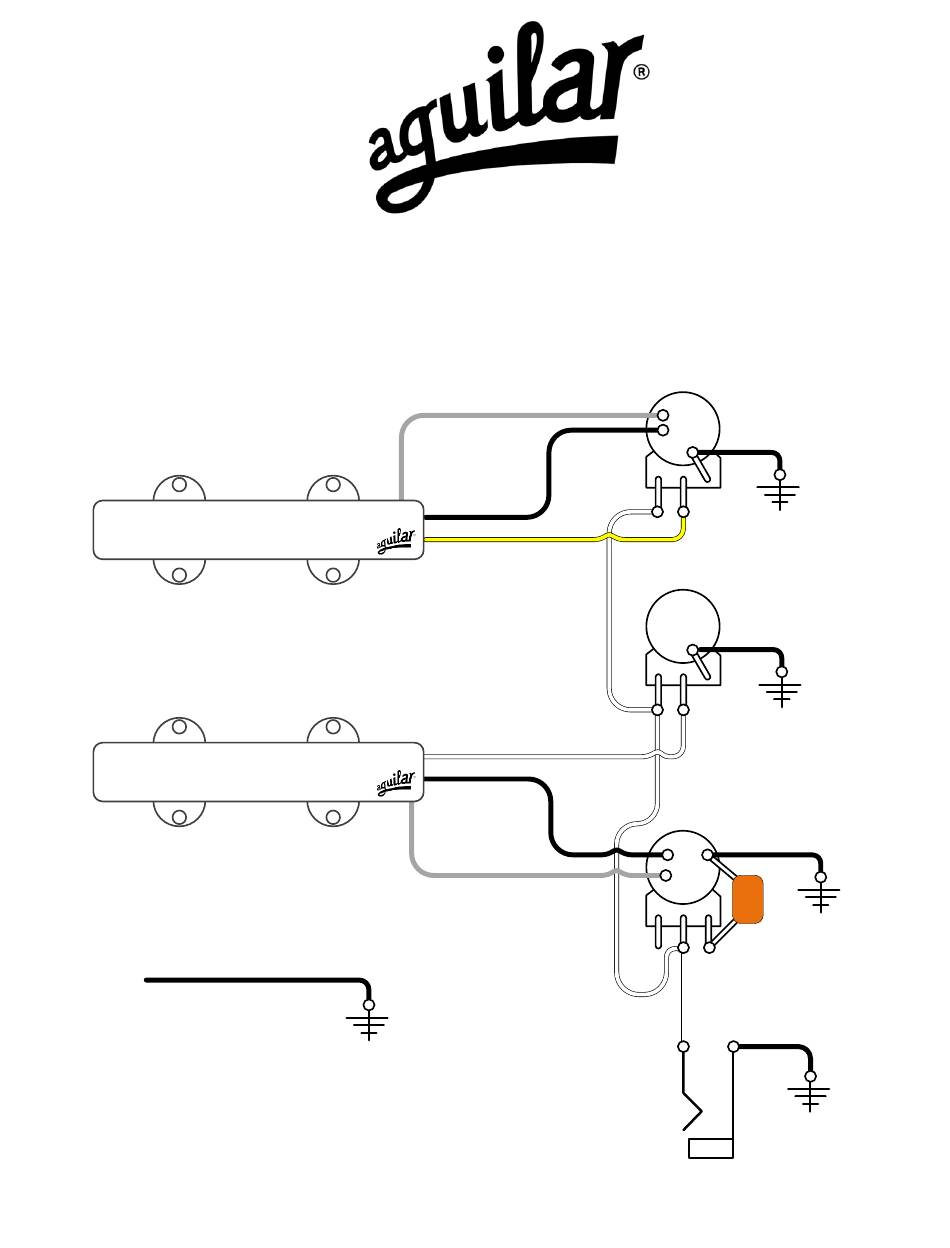

Hum-canceling Jazz Bass Pickup Wiring Diagram
(AG 4J-HC, DCB-4J, AG 5J-HC, AG 5J-HC/CL, DCB-5J, AG 6J-HC)
NECK POSITION PICKUP
BRIDGE POSITION PICKUP
BRIDGE GROUND WIRE
With Two Volume Controls
BLACK
YELLOW
WHITE
BLACK
GRAY
www.aguilaramp.com
GRAY
TIP
OUTPUT JACK
NECK VOLUME
250K AUDIO
TAPER POT
BRIDGE VOLUME
250K AUDIO
TAPER POT
TONE
250K AUDIO
TAPER POT
0.05 MICROFARADS
CAPACITOR
SLEEVE
Advertisement
Table of Contents
Summary of Contents for aquilar AG 4J-HC
- Page 1 Hum-canceling Jazz Bass Pickup Wiring Diagram With Two Volume Controls (AG 4J-HC, DCB-4J, AG 5J-HC, AG 5J-HC/CL, DCB-5J, AG 6J-HC) NECK VOLUME GRAY 250K AUDIO TAPER POT BLACK YELLOW BRIDGE VOLUME NECK POSITION PICKUP 250K AUDIO TAPER POT WHITE TONE...
- Page 2 Hum-canceling Jazz Bass Pickup Wiring Diagram With Volume and Blend Controls (AG 4J-HC, DCB-4J, AG 5J-HC, AG 5J-HC/CL, DCB-5J, AG 6J-HC) VOLUME 250K AUDIO GRAY TAPER POT BLACK YELLOW BLEND NECK POSITION PICKUP DUAL 250K MN TAPER POT WHITE TONE...
