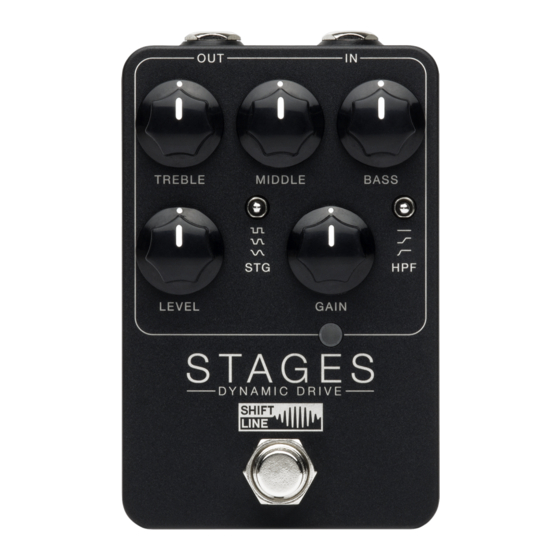

Summary of Contents for Shift Line Stages Dynamic Drive
- Page 1 Stages Dynamic Drive User Guide Table Of Contents Connections Controls Starter Settings Specifications IMPORTANT SAFETY INSTRUCTIONS...
- Page 2 Connections ● IN is a high-resistance input for a mono signal source (such as electric guitar or any other instrument). ● OUT is a mono output which connects the pedal to a signal receiver. NB: The max output voltage can reach 36Vpp (+24dBu). Set the LEVEL knob to lower values for a start. ●...
- Page 3 Starter Settings Despite the simplicity of its controls, the Stages offers a wide sonic palette. We’ve designed four reliable settings to get you started. Specifications ● IN: 6.3mm, mono, unbalanced, 500kOhm input resistance. ● OUT: 6.3mm, mono, unbalanced, 100Ohm output resistance. Max output voltage can reach 36Vpp (+24dBu). ●...
- Page 4 IMPORTANT SAFETY INSTRUCTIONS PLEASE FOLLOW THE INSTRUCTIONS BELOW SO AS NOT TO DAMAGE THE UNIT. SHIFT LINE DOES NOT ACCEPT RESPONSIBILITY FOR ANY DAMAGE CAUSED BY NOT FOLLOWING THESE INSTRUCTIONS. When transporting or storing the unit at temperatures below 0 ̊ C , it is necessary to keep the unit at room temperature for at least 1 hour before switching it on.
