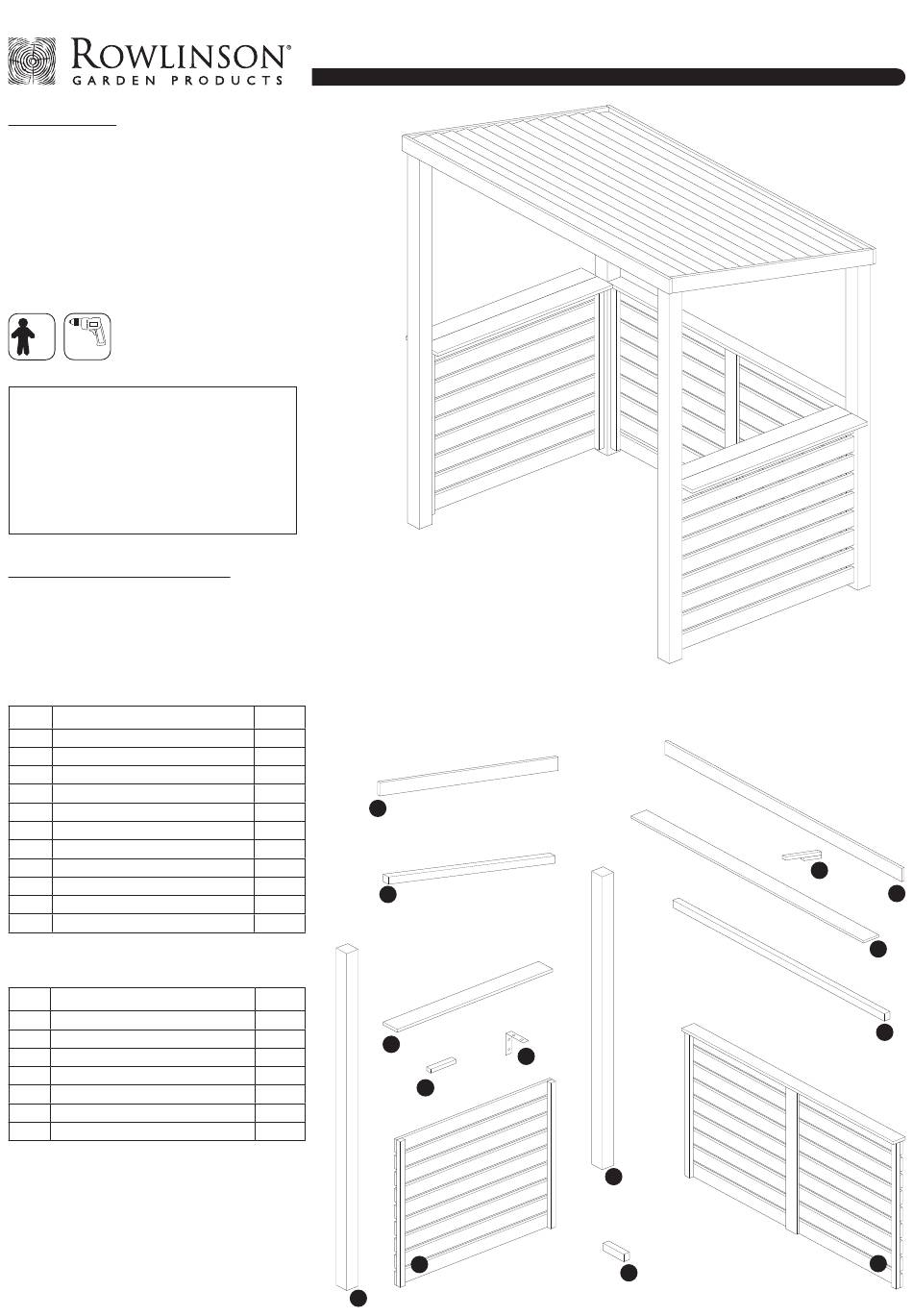

Rowlinson Garden Products Bondi BBQSHEL Assembly Instructions

Before assembly
•
We recommend that time is taken to read the
instructions before starting assembly, then
follow the easy step by step guide.
The instruction sheet is only a guide to
the assembly. Certain items may not be
shown to scale.
•
Check all components prior to assembly
•
This product should be assembled by no
less than two people.
•
Never attempt to erect the assembly in
high winds.
•
Drill components where indicated.
x 2
Drill
Biocidal Products Regulation EU 528/2012
Wolmanit CX treated wood is a treated article that
incorporates biocidal products: copper hydroxide
carbonate/II/ and boric acid. They protect wood
against fungal decay /rot/ and insect attack.
Keep away from food, drink and animal feeding
stuffs.
Avoid breathing dust when cutting treated wood.
Recommended tools for assembly
•
Electric drill/screw driver
•
Cross head screwdriver bit
•
3mm diameter drill bit
•
Spirit level
•
Step ladder
No. Components
1 Back leg
(90x90x2000mm)
2 Front leg
(90x90x2300mm)
3 Back panel
4 Side panel
5 Front/Rear roof frame
(50x45x1820mm)
6 Roof rafter
(50x45x1340mm)
7 Roof board
(15x120x2000mm)
8 Side barge board
(20x120x1470mm)
9 Front/Rear barge board
(20x120x2045mm)
10 Side shelf
(20x90x1220mm)
11 Shelf support blocks
(40x30x200mm)
No. Fixing kit
12 Metal L-bracket
13 Roof board spacer tool
14 Panel height spacer
(45x45x150mm)
15 100mm screws
16 70mm screws
17 50mm screws
18 20mm screws
Bondi Barbecue Shelter
Assembly Instructions
Qty.
2
2
1
2
8
2
4
15
2
1
6
4
4
Qty.
6
2
10
2
20
11
18
84
24
4
2
12
1
14
English SS574
13
9
7
5
3
