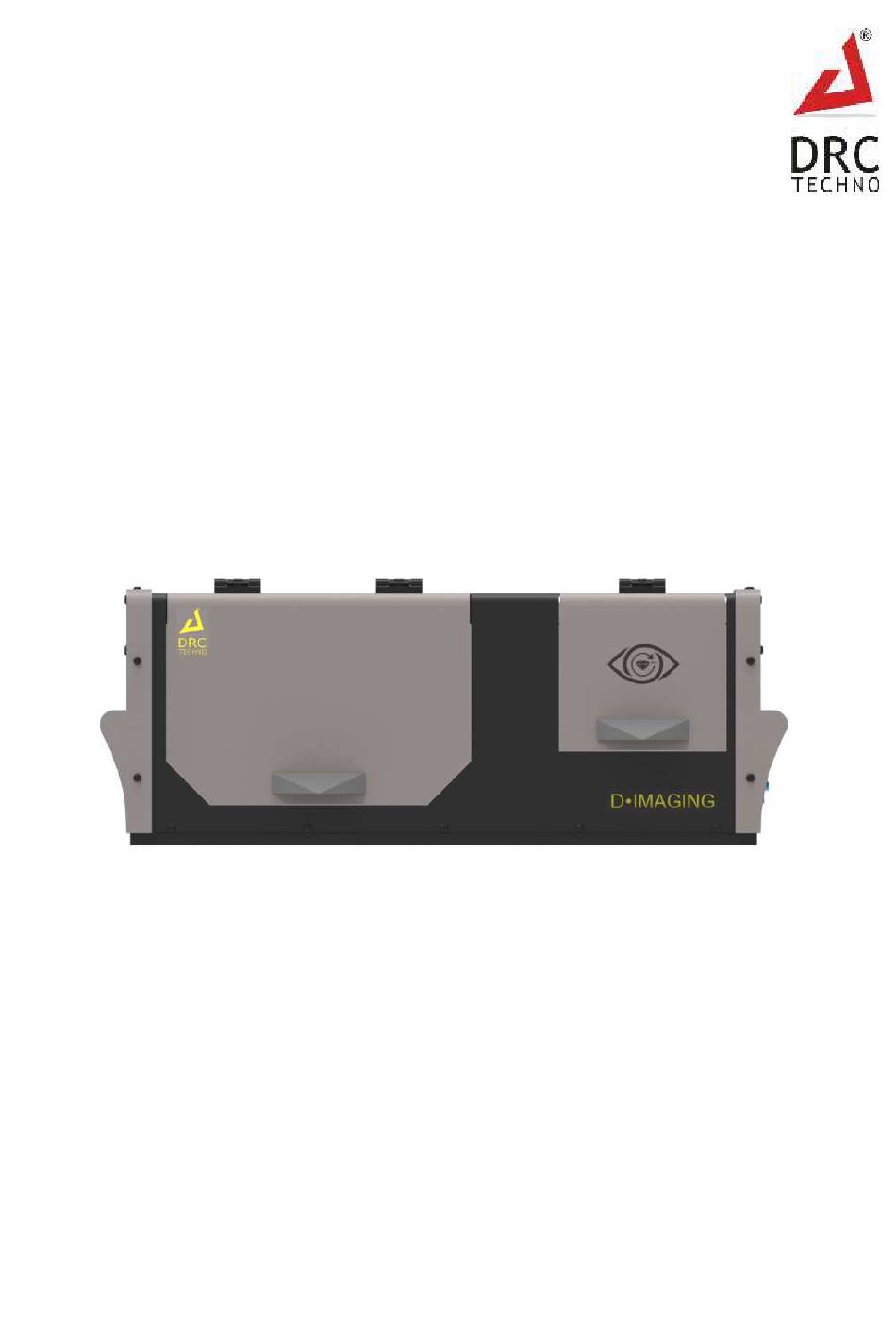

Page 1 DRC TECHNO D-Imaging USER MANUAL v 1.0 No. 1 choice of Gem & Jewellery business owners. CONFIDENTIAL This information is the property of DRC Techno. Any reproduction, publication or distribution to a third party is strictly forbidden...
Page 2 P a g e Thank you for choosing D-Imaging, a high tech camera for diamonds, assesses the 3Cs; clarity, cut and colour of a diamond in 3D. Witness the crystal clear magic which lies in the little cuts of the stones. With an advanced diamond photography system, D-Imaging has made it easier to view the diamonds inside out.
Page 3: Table Of Contents
P a g e Table of Contents 1. Safety First ……………………………………………………………………………………………………………………………………….. 3 1.1 Symbol definitions ……………………………………………………………………………………………………………………… 3 2. System Requirement & Specification ……………………………………………………………………………………………….. 4 2.1 Power Supply ……………………………………………………………………………………………………………………………… 4 3. Camera & Computer System ……………………………………………………………………………………………………………. 5 3.1 Camera & accessories ………………………………………………………………………………………………………………… 5 3.2 Computer System ……………………………………………………………………………………………………………………….
Page 4: Safety First
P a g e 1. Safety First At DRC Techno the safety of all individuals working with the equipment is important and recommends reading the safety information mentioned below before attempting to operate the system or perform any other process. Failure to observe these instructions can lead to injury or damage to the Device.
Page 5: System Requirement & Specification
P a g e 2. Device Specification Size(mm) Weight (kg) D-Imaging 220 x 662 x 245 13.12 Vacuum Pump 106 x 161 x 122 2.1 Power Supply  Input Voltage Range: 230 V AC  Input Current>= 3A  Operating AC Frequency Range: 50 Hz ...
Page 6: Camera & Computer System
P a g e 3. Camera & Computer System Supply of Computer system, Steam Cleaner, Camera & its accessories are under customer’s scope and for the same OEM is liable for the services. Following is the list/requirements 3.1 Camera & accessories Description Manufacturer Camera Canon –...
Page 7: Computer System
P a g e 3.2 Computer System System Description Manufacturer Intel® Core™ i7-4790,3.6 GHz Processor Intel or Any Standard Processor (8M Cache, company made LGA1150), or Higher Any Standard company 8GB DDR3 RAM made NVidia or Any Standard 2 GB or Higher Graphics Card Graphic-card company made Operating...
Page 8: Device Description
P a g e 4. Device Description USB Port Camera Mount Diamond Stage Vacuum Pump Socket Power Button Power Cable WWW.DRCTECHNO.COM...
Page 9: Accessories
P a g e 5. Accessories Vacuum Pump Software Key Power Cable USB Cable WWW.DRCTECHNO.COM...
Page 10 P a g e ASM-reflector- ACR-stand stand Background- Stand-DR Loop Reflector- Stand-DR WWW.DRCTECHNO.COM...
Page 11: Device Installation
P a g e | 10 6. Device Installation 1. Connect power cord & Vacuum Pump and switch on power. 2. Place the camera (need to purchase separately) on the camera mount and also place the diamond on the stage along with the reflectors. 3.
Page 12: Device Operating Instructions
P a g e | 11 7. Device operating instructions 1. Switch on the “Instrument” and “Computer System” 2. Start the Software and wait for the machine to load. Kindly confirm all hardware peripherals (Camera, Motor, Vacuum etc.) detected completely and displaying in software. 3.
Page 13 P a g e | 12  Double click on the live Camera Viewer to Zoom the Camera.  Click on Auto focus Icon to adjust the focus of Camera automatically. WWW.DRCTECHNO.COM...
Page 14 P a g e | 13  Click on any of the below icon to focus manually.  After clicking the image, an icon will display with multiple options. Select any one from the displayed option and click on the Single Photo Icon to save the image of the Diamond. WWW.DRCTECHNO.COM...
Page 15 P a g e | 14  Click on the Preview Icon for a Preview of the Image (Inside rectangle).  Click on the Start Video button to start recording of the diamond. WWW.DRCTECHNO.COM...
Page 16: Crop Settings
P a g e | 15 7.2 Crop Settings  Click on the up, down, left, right arrows respectively to move the rectangle on any of the sides  To increase or decrease the speed of the rectangle displacement, change the value of Box inside the Arrow.
Page 17: Rectangle Style
P a g e | 16  Click on the Save Icon to save current value of the size of the rectangle. 7.3 Rectangle Style  To change the style of the rectangle, click on different icons as shown below WWW.DRCTECHNO.COM...
Page 18: Rotation
P a g e | 17 7.4 Rotation  Click on the arrow Icon to Rotate the Diamond clockwise or anticlockwise.  Click on 360 clockwise or anticlockwise Icon to rotate Diamond in the desired degree WWW.DRCTECHNO.COM...
Page 19 P a g e | 18  Click on 45 clockwise or anticlockwise Icon to rotate Diamond 45  Click on 90 clockwise or anticlockwise Icon to rotate Diamond 90 WWW.DRCTECHNO.COM...
Page 20: Light/Camera Profile
P a g e | 19 7.5 Light/Camera Profile  To view the Heart and Arrow of the Diamond select H&A Setting from the Light/Camera Profile Region Then Rotate the Diamond.  Click on Show Image Icon to play the Recorded Videos. WWW.DRCTECHNO.COM...
Page 21 P a g e | 20  Click on Search by Date or Name by clicking on Search icon to show the Recorded Videos.  Click on the Show Video Icon to Play the Video on D-Imaging Viewer (Browser). WWW.DRCTECHNO.COM...
Page 22 P a g e | 21 WWW.DRCTECHNO.COM...
Page 23: User
P a g e | 22 7.6 User  Click on User Icon to show the login user Detail. WWW.DRCTECHNO.COM...
Page 24: Troubleshoot
P a g e | 23 8. Troubleshoot 1) If the Machine is not working  Plug in the right power supply as specified in the operation manual. Switch on the “Instrument” and “PC”.  Start the software and wait until the machine gets initialized. WWW.DRCTECHNO.COM...
Page 25: Faq
| 24 9. FAQ What does D-Imaging do? D-Imaging is used to capture all the impressive images of a diamond or a gemstone. It also includes a 360-degree video feature to capture all the parts of the diamond thoroughly and precisely.
Page 26: Warranty
Warranty Period in compliance with the process specified below, DRC Techno will, at DRC Techno's option, repair or replace the defective D-Imaging, or refund the price paid to DRC Techno for the defective D-Imaging. A replacement may be a new or refurbished...
Page 27: Warranty Claim Process
Software without DRC Techno's prior written consent. DRC Techno retains all right, title, and interest in and to the Software and the intellectual property rights in the Software and the D-Imaging, whether such intellectual property rights are registered or unregistered, and wherever in the world those rights may exist.
Page 28: Terms And Conditions
P a g e | 27 11. Terms and Conditions By ordering “D-Imaging”, buyers/users hereby abide and agreed Following Terms and Conditions. 1) DEFINITION In this document the following words shall have the following meanings:  "Buyer" means the organization or person who buys Goods.
Page 29  Any damages, shortages, over deliveries and duplicated orders should be reported to the Seller within 14 days of signed receipt to enable replacement or refund.  Delivery is strictly based on First come First Serve bases and sole discretions of DRC Techno. 7) RISK Risk in the Goods shall pass to the Buyer upon receipt of the goods.
Page 30 P a g e | 29  Any returns must be authorized by a representative of the Seller before any credit will be given.  Credit of amount due or paid-in will only be given for goods that are in saleable condition. 10) LIMITATION OF LIABILITY&...
Page 31 PRIVACY  Supplementary PC can only be used with D-Imaging and not for any other purpose. DRC Techno enjoys the right to access the supplementary PC if/when required. Access data may be used for improvement opportunities; such data will be kept confidential by DRC Techno.
Page 32 Check of Non-critical/critical defective parts as per our company policy.  Inform external / internal parts quality and it’s report.  Defective parts should be returned to DRC once the service is complete.  Providing separate space for repair, photography, and video are strictly prohibited. ...
Page 33 P a g e | 32 using our Services you are directing them to make Third-Party Apps and Services available to you.  From above it can safely be concluded that it is very critical for company to have a robust and effective maintenance and repair policy.
Page 34: Caution (Laser Radiation)
Proper eye and skin protection required. 13. Disclaimer D-Imaging, a high tech camera for diamonds, assesses the 3Cs; clarity, cut and colour of a diamond in 3D. Witness the crystal clear magic which lies in the little cuts of the stones. With an advanced diamond photography system, D-Imaging has made it easier to view the diamonds inside out.
Page 35: Notes
P a g e | 34 Notes WWW.DRCTECHNO.COM...
Page 36 P a g e | 35 Contact : +91 990 9990 867 | Skype : Support.drctechno | Email ID : support@drctechno.com Plot No. 294, Ground Floor, Beside Dharmanandan Diamond, Gotalawadi, Katargam, Surat – 395004, Gujarat - INDIA WWW.DRCTECHNO.COM...
